Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

2. A low fluid level may cause an overtemperature condition.

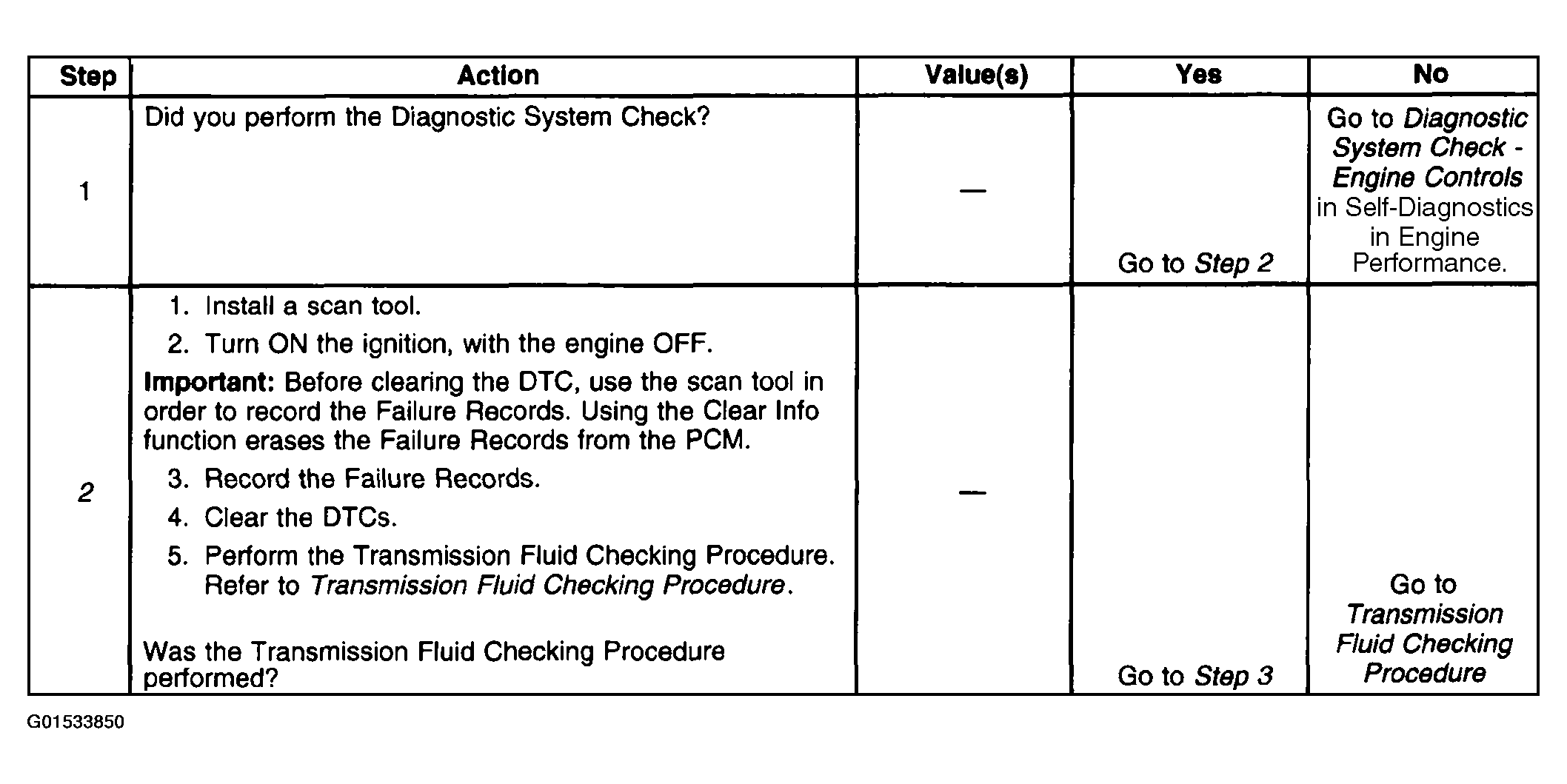

Fig 1: DTC P0218 (1 of 2)
G01533850Courtesy of GENERAL MOTORS CORP.

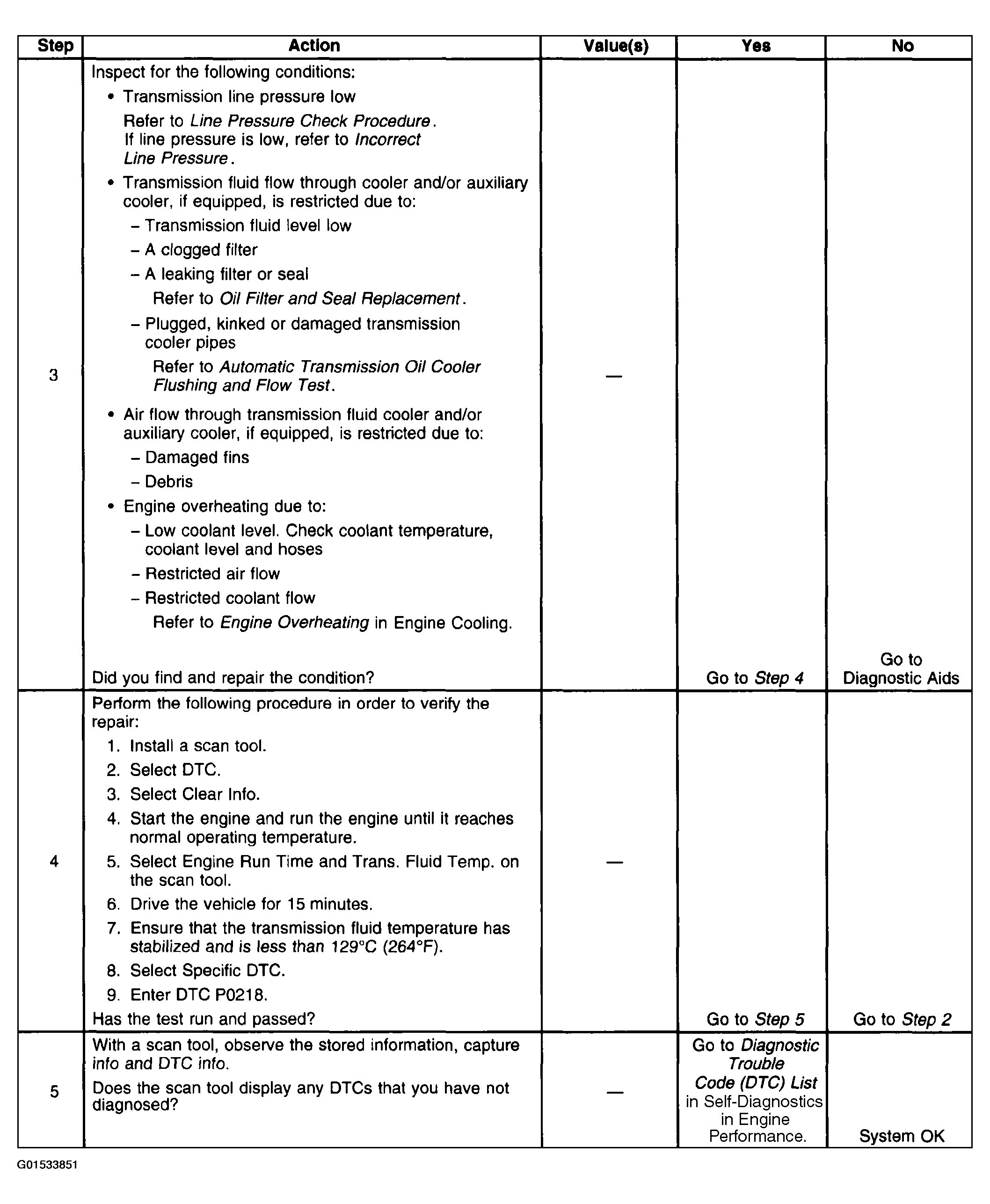

Fig 2: DTC P0218 (2 of 2)
G01533851Courtesy of GENERAL MOTORS CORP.
