Automatic Transmission Related Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

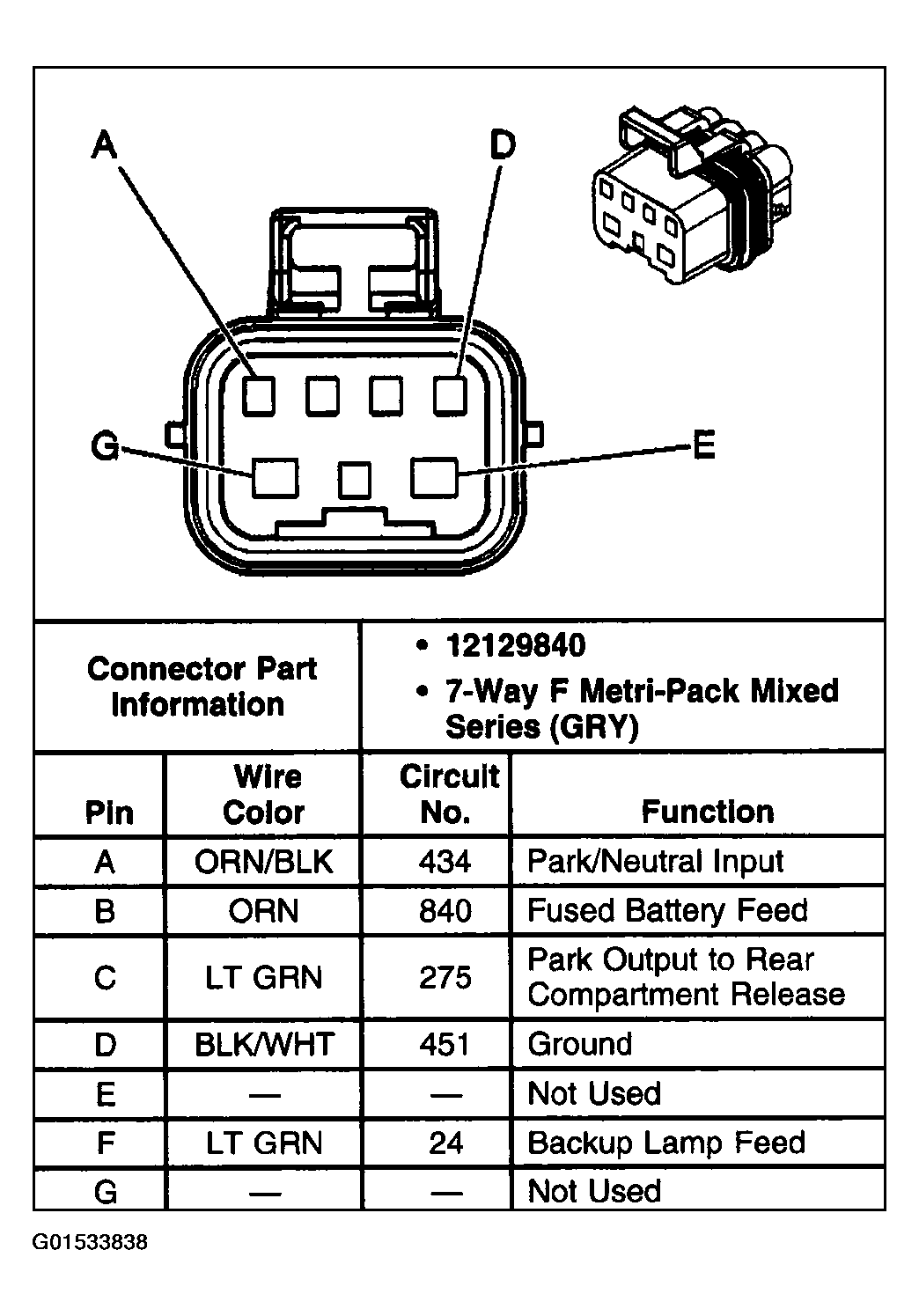

Fig 1: Transmission Range Switch Connector, Wiring Harness Side Connector End View
G01533838Courtesy of GENERAL MOTORS CORP.

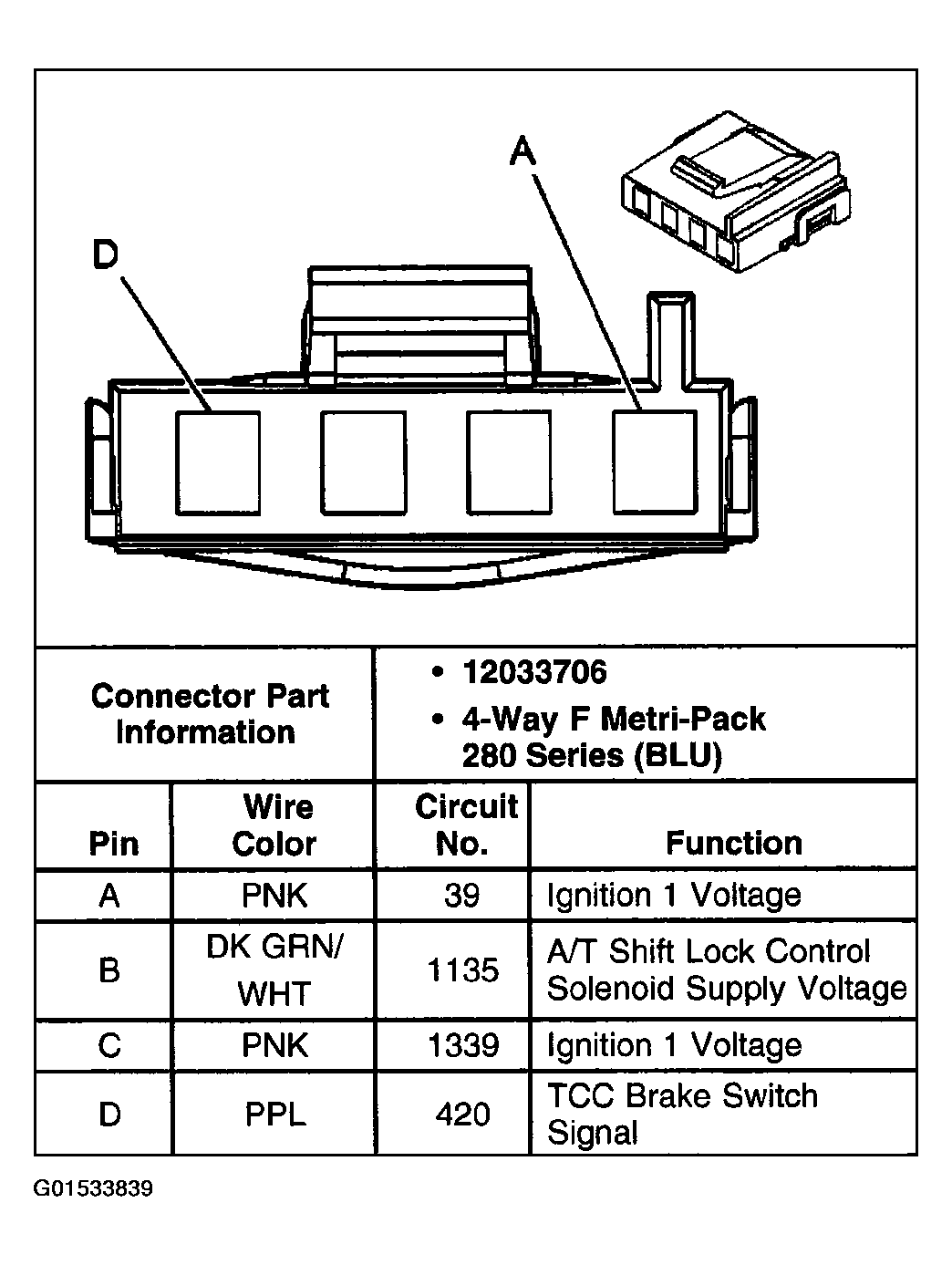

Fig 2: Stop Lamp Switch/TCC Switch Connector, Wiring Harness Side Connector End View
G01533839Courtesy of GENERAL MOTORS CORP.

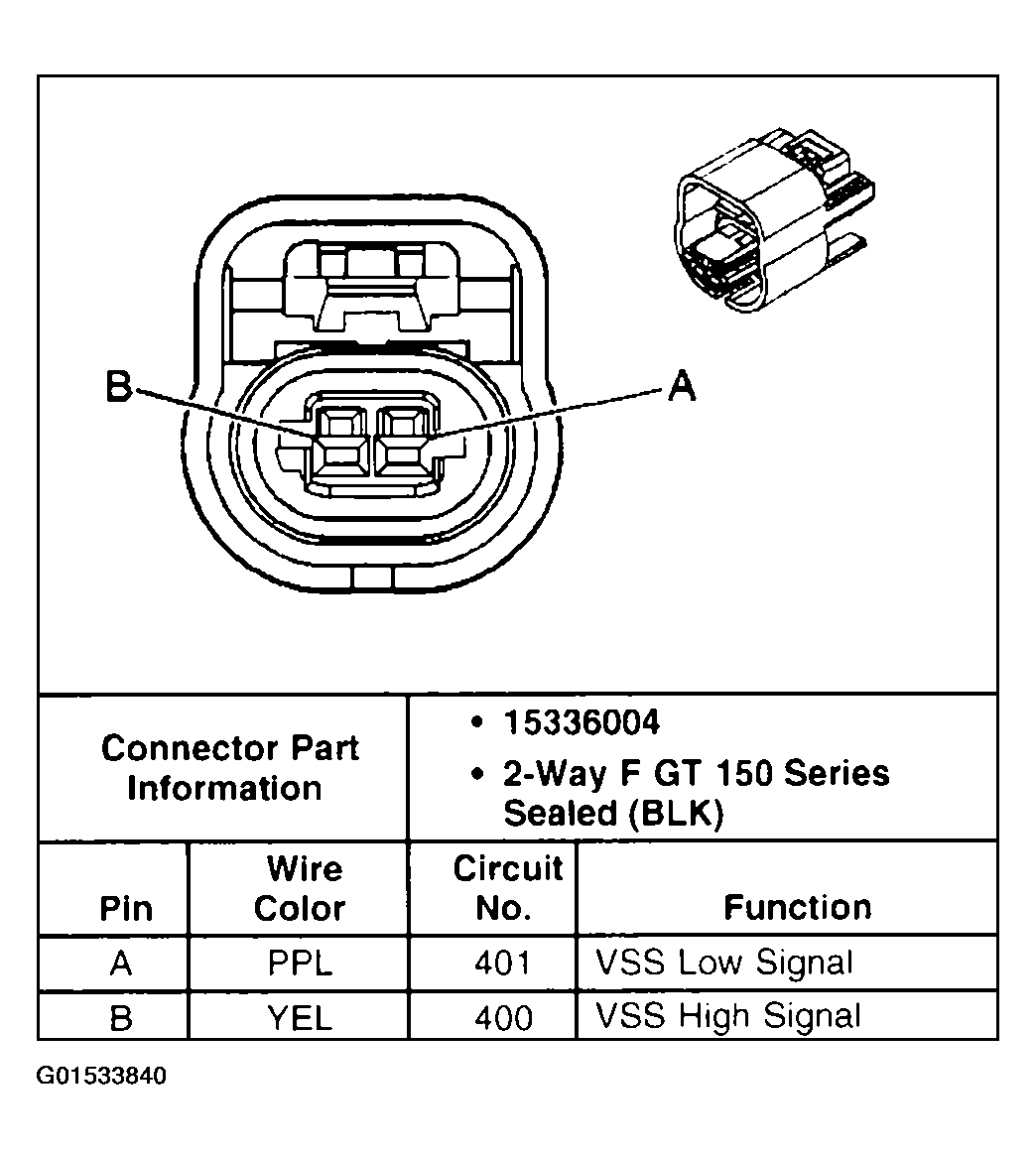

Fig 3: Vehicle Speed Sensor Connector, Wiring Harness Side Connector End View
G01533840Courtesy of GENERAL MOTORS CORP.
