Automatic Transmission Internal Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

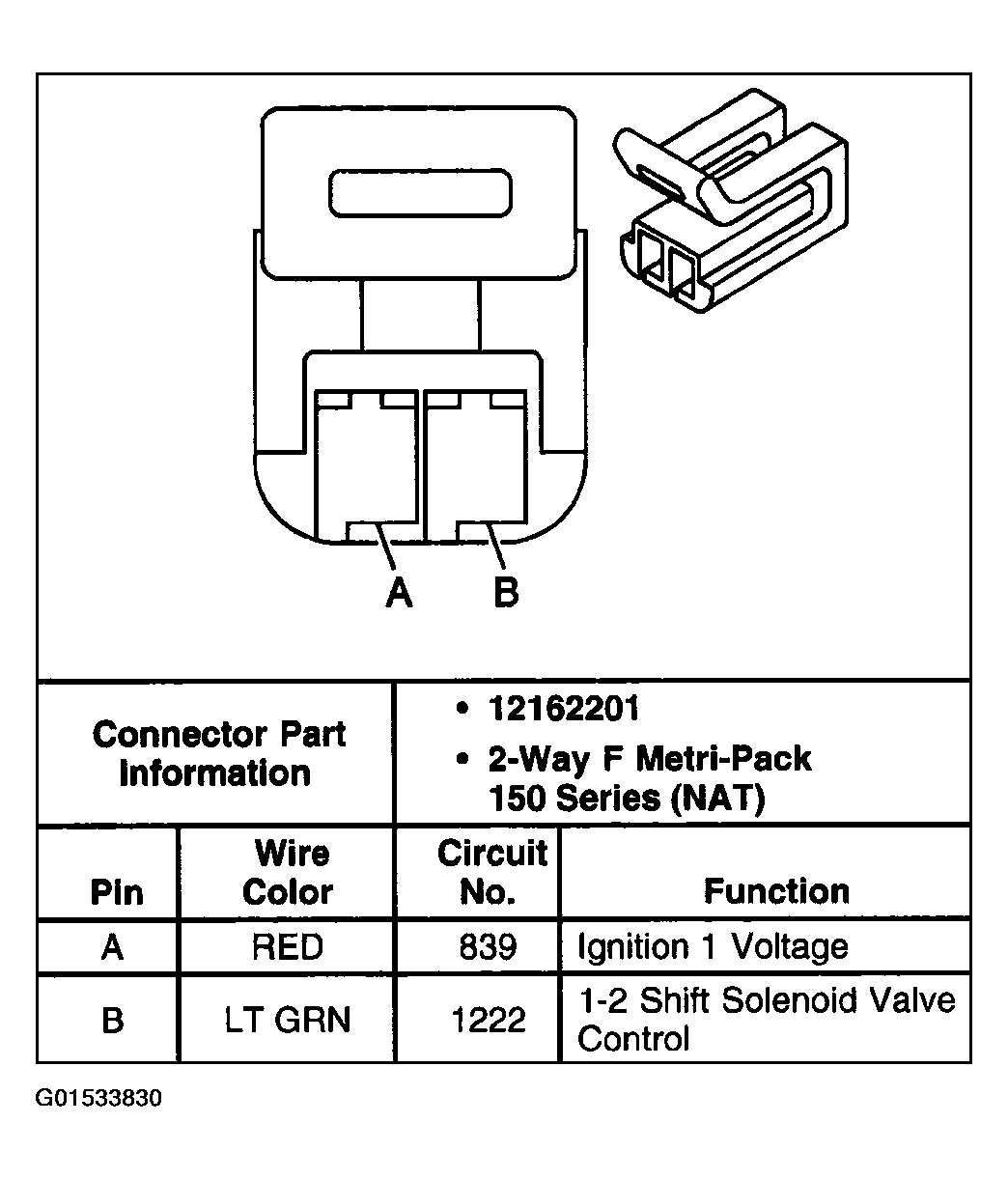

Fig 1: 1-2 Shift Solenoid Valve Connector, Wiring Harness Side Connector End View
G01533830Courtesy of GENERAL MOTORS CORP.

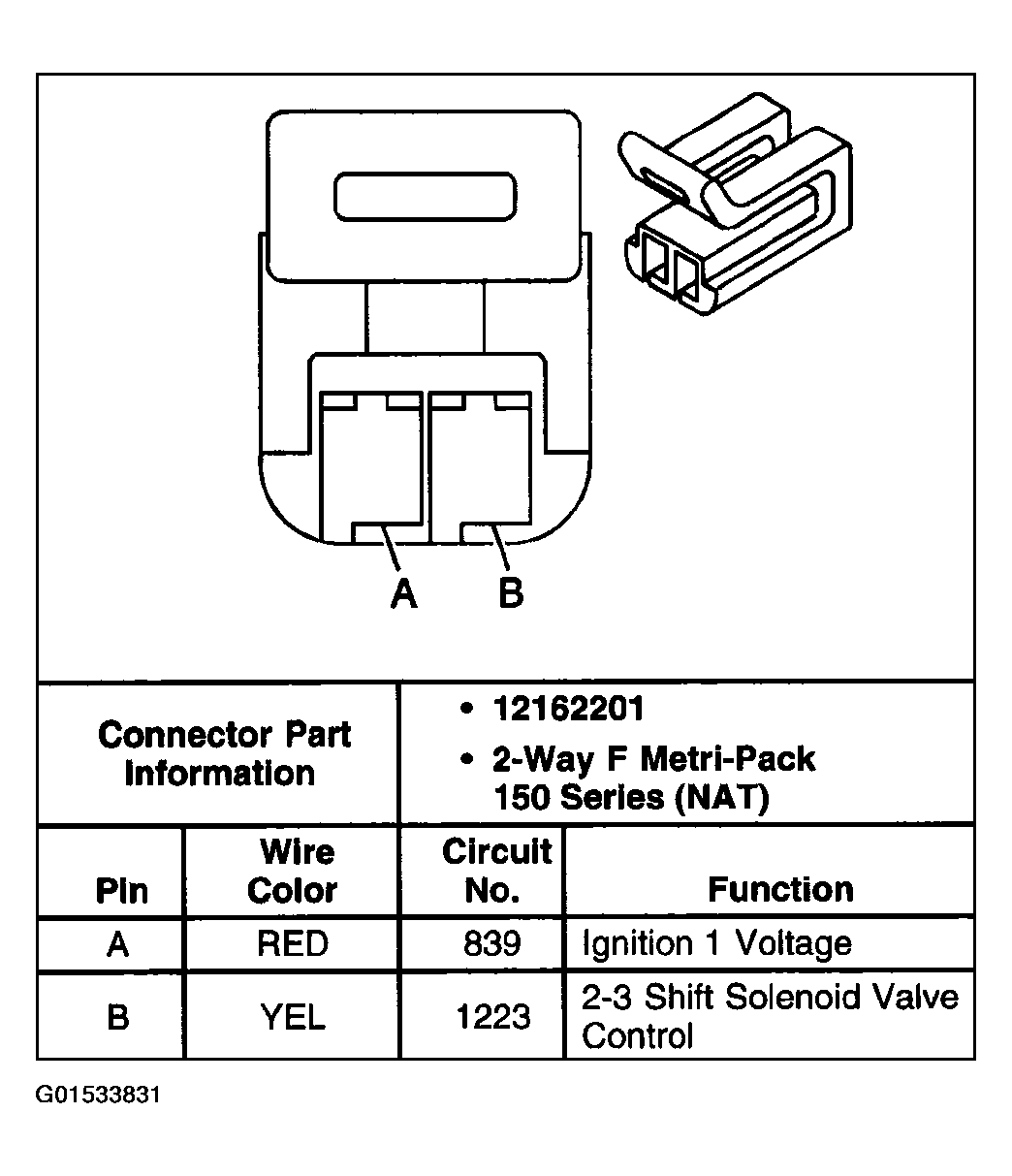

Fig 2: 2-3 Shift Solenoid Valve Connector, Wiring Harness Side Connector End View
G01533831Courtesy of GENERAL MOTORS CORP.

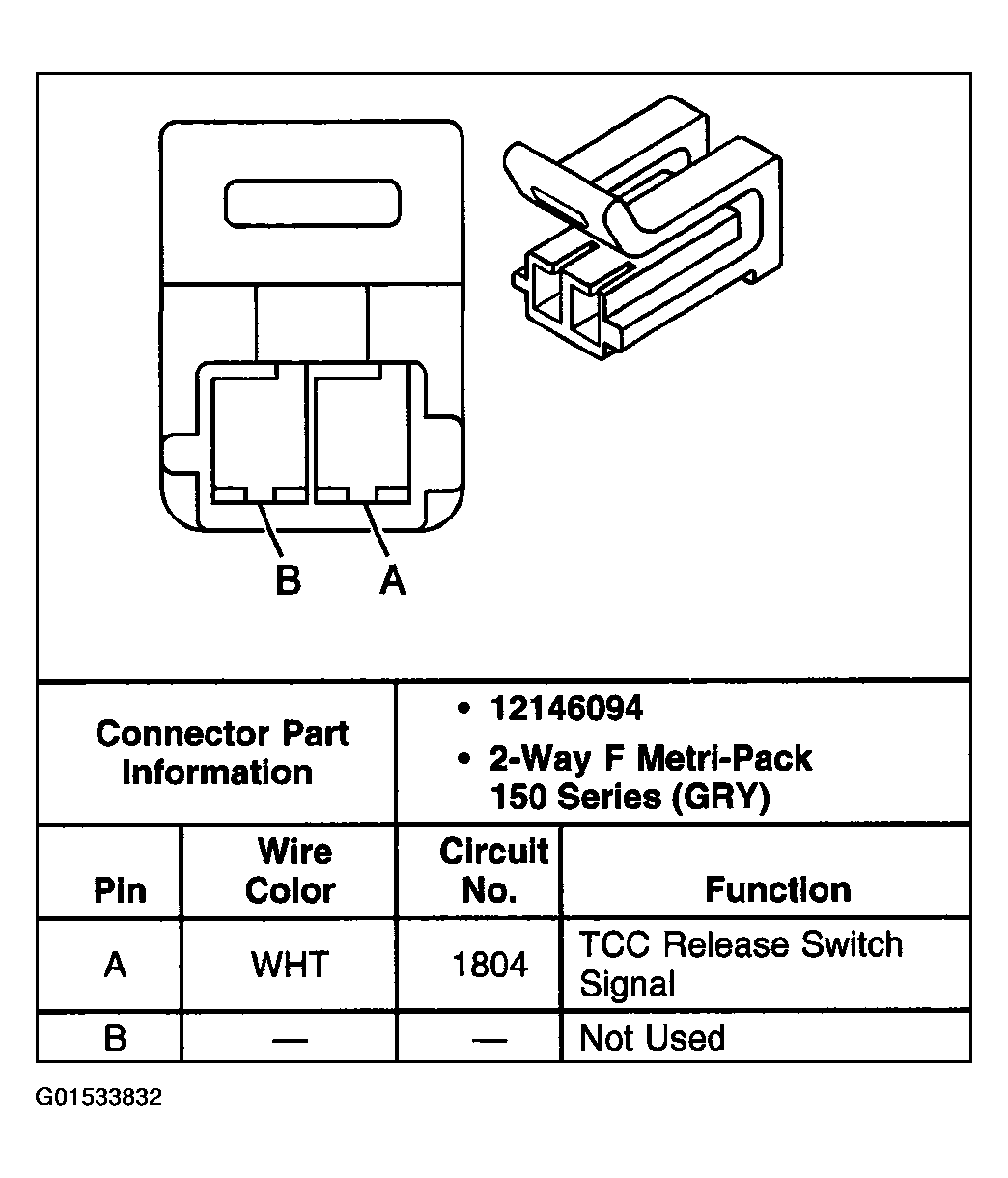

Fig 3: Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side Connector End View
G01533832Courtesy of GENERAL MOTORS CORP.

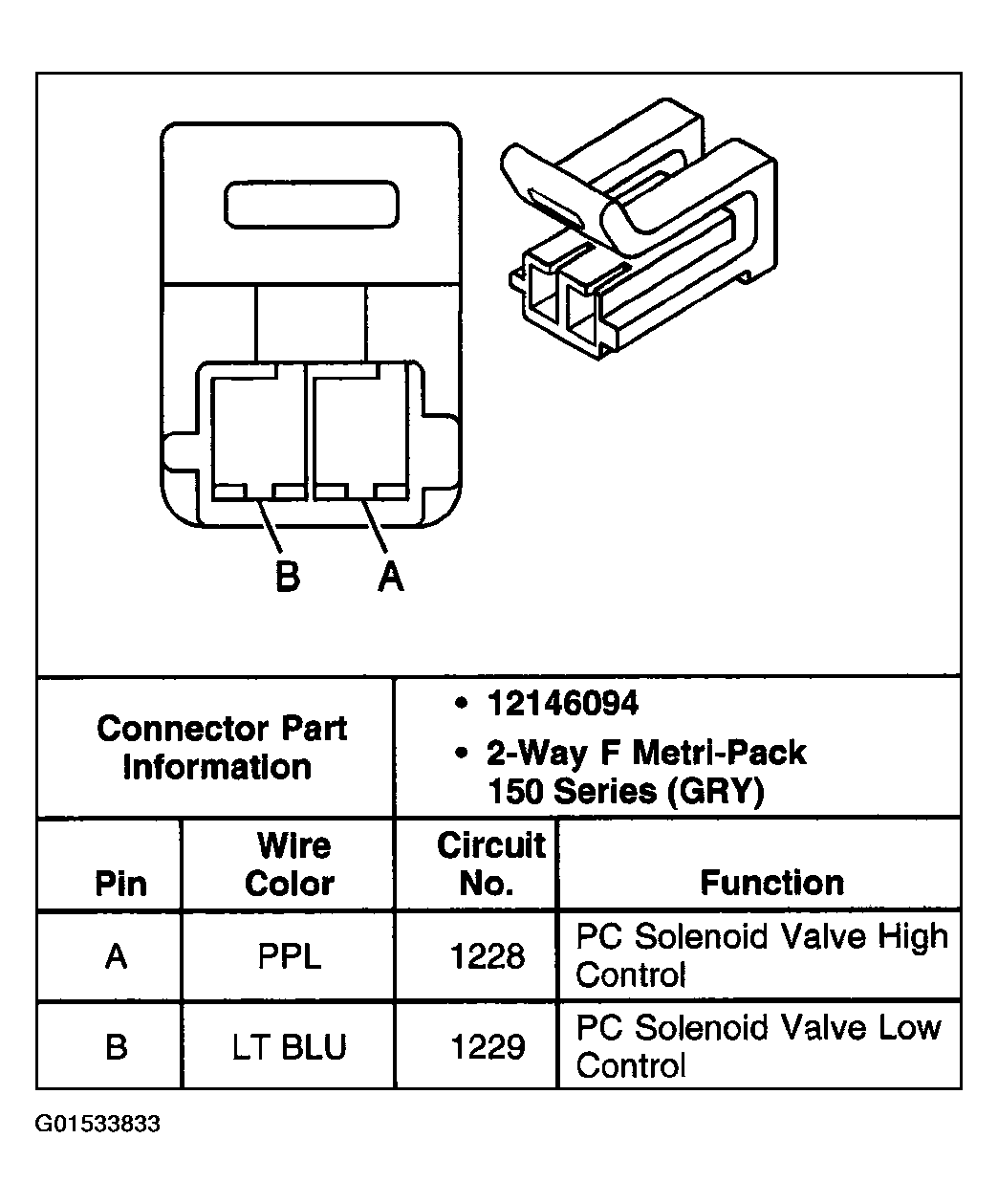

Fig 4: Pressure Control Solenoid Valve Connector Wiring Harness Side Connector End View
G01533833Courtesy of GENERAL MOTORS CORP.

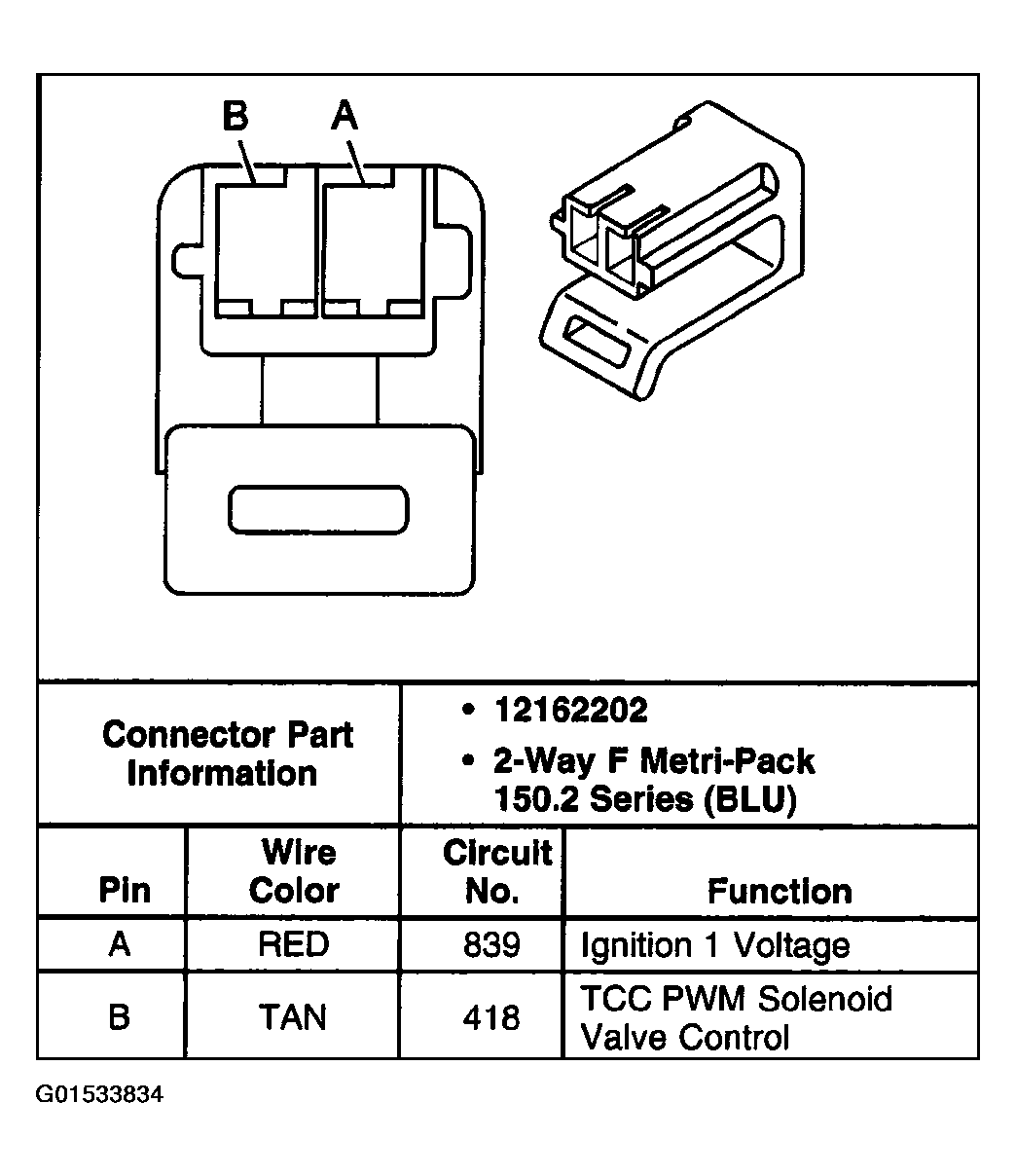

Fig 5: Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector Wiring Harness Side Connector End View
G01533834Courtesy of GENERAL MOTORS CORP.

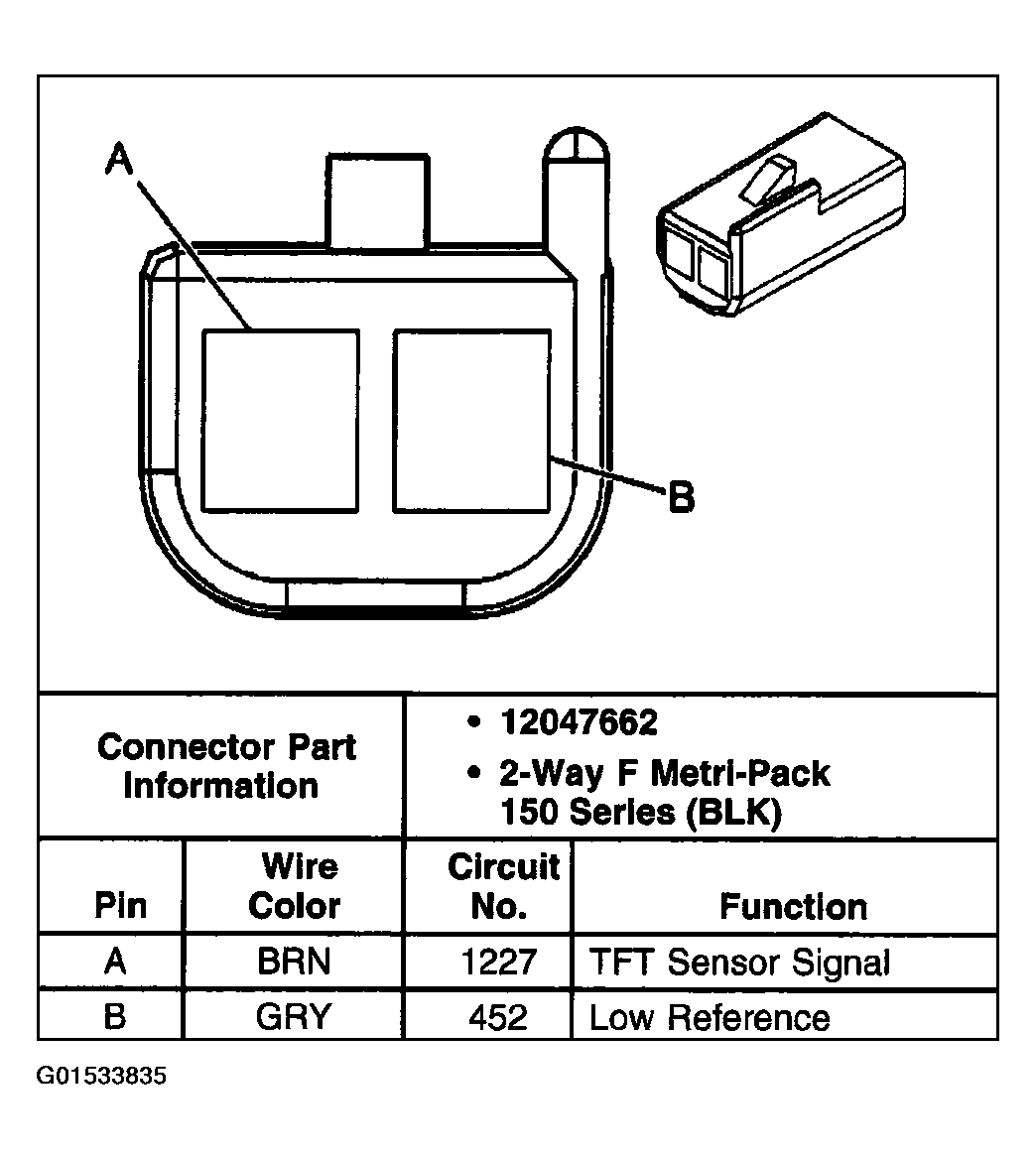

Fig 6: Transmission Fluid Temperature Sensor Connector, Wiring Harness Side Connector End View
G01533835Courtesy of GENERAL MOTORS CORP.

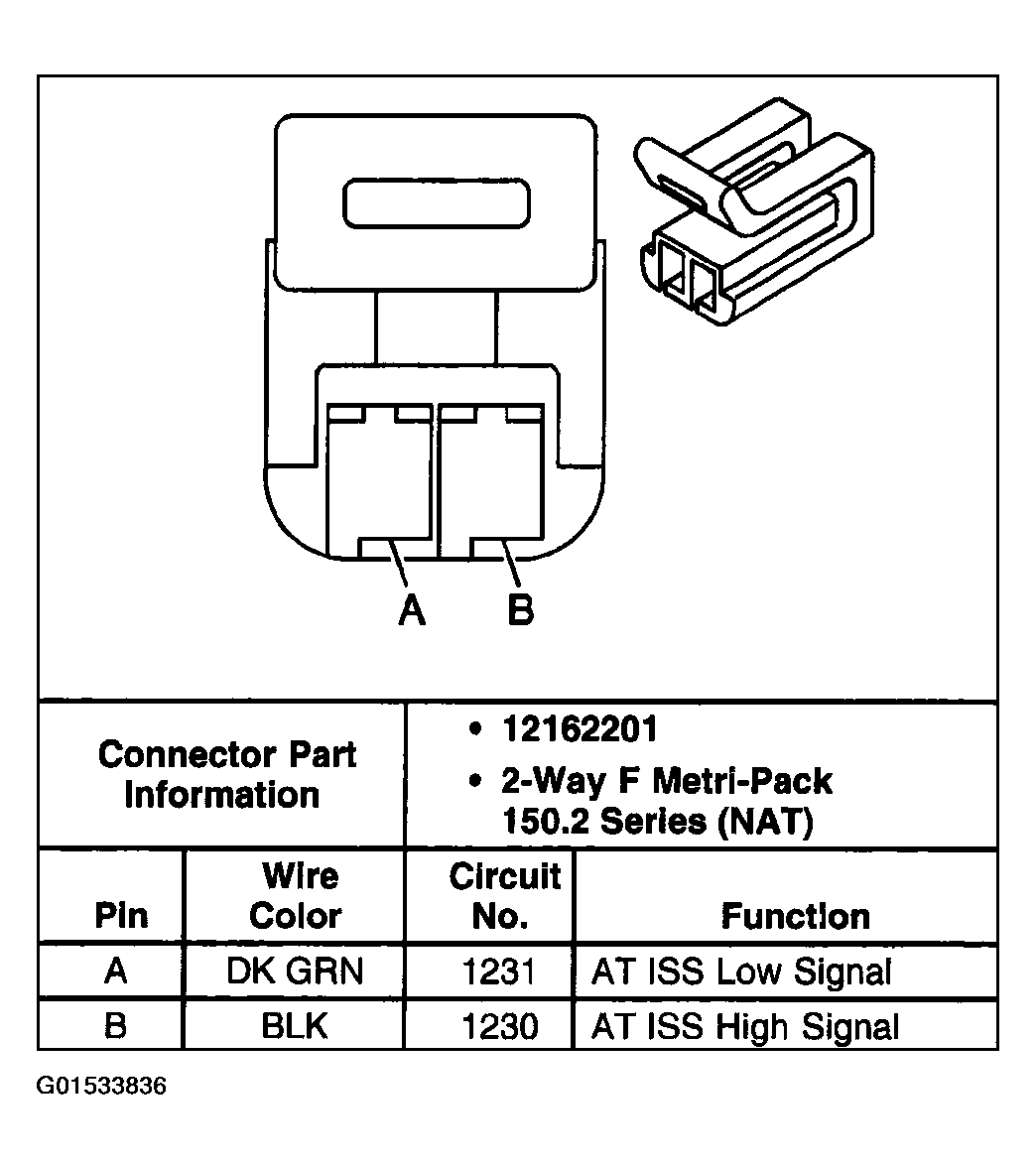

Fig 7: Input Speed Sensor Connector, Wiring Harness Side Connector End View
G01533836Courtesy of GENERAL MOTORS CORP.

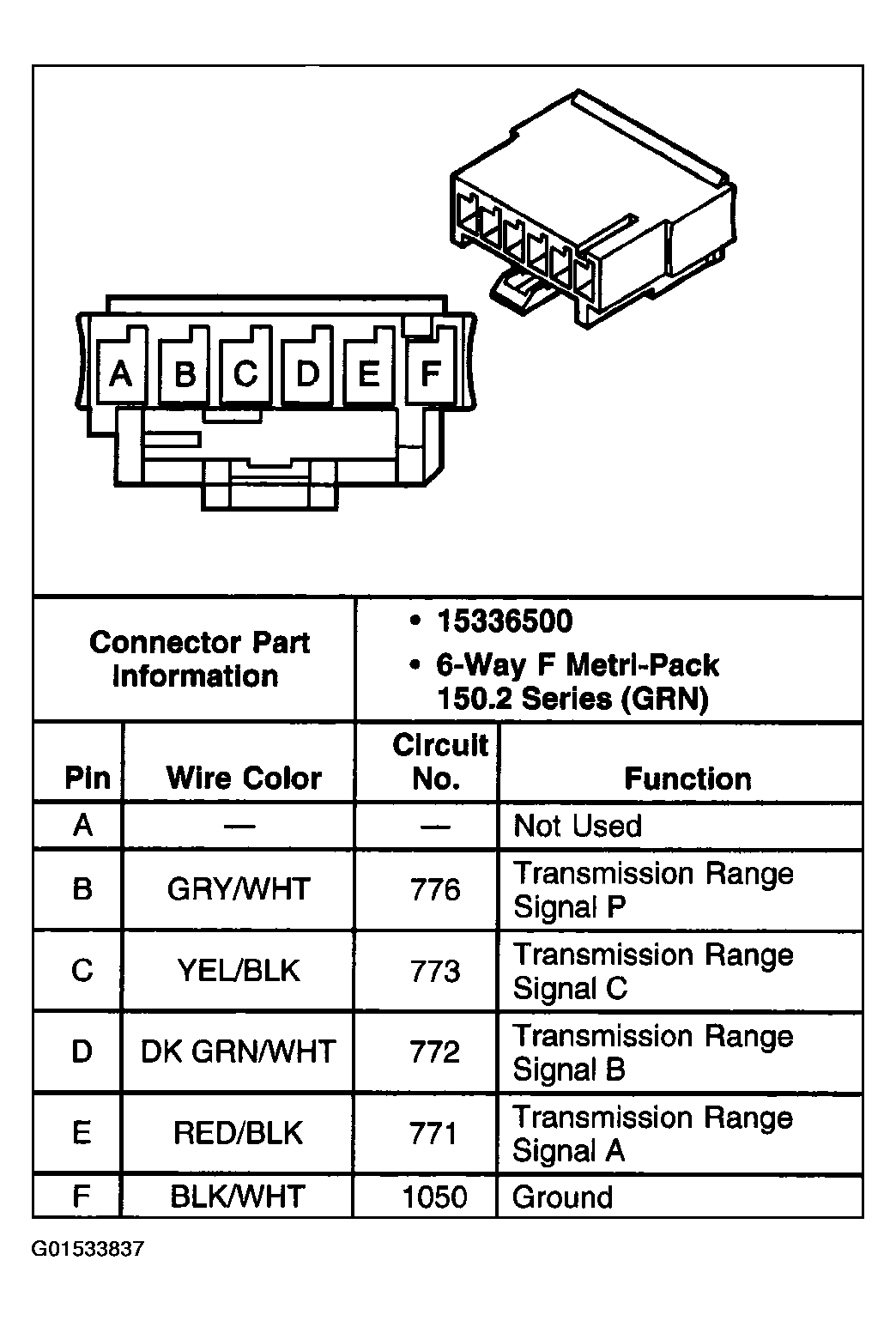

Fig 8: Transmission Internal Mode Switch Connector, Wiring Harness Side Connector End View
G01533837Courtesy of GENERAL MOTORS CORP.
