Automatic Transmission Inline 20-Way Connector End View

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: AT Inline 20-way Connector, Engine Side Connector End View
G01533828Courtesy of GENERAL MOTORS CORP.

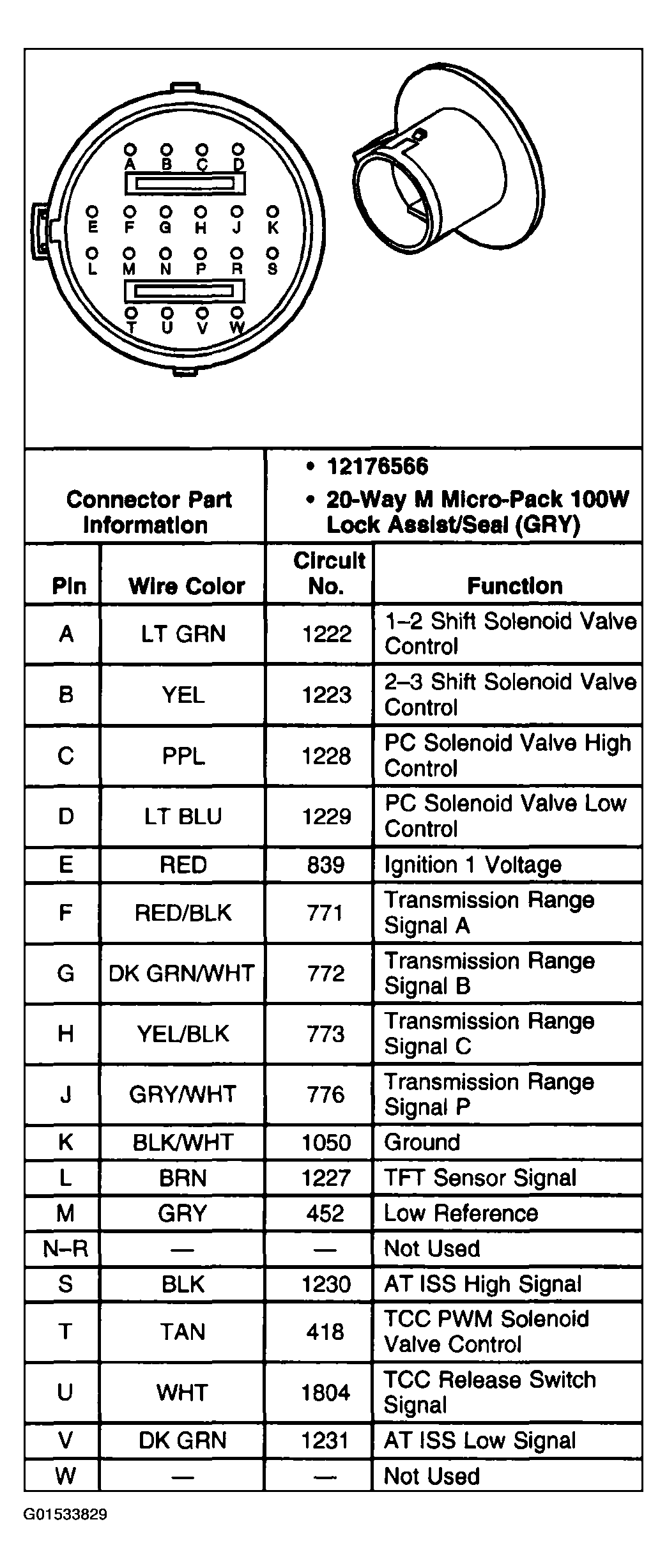

Fig 2: AT Inline 2-way Connector, Transmission Side Connector End View
G01533829Courtesy of GENERAL MOTORS CORP.
