Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plastic cover from the shoulder belt guide.
  2. Remove the front seat belt upper guide loop anchor nut.
  3. Remove the center pillar upper trim panel. Refer to INTERIOR TRIM  in Interior Trim.
  4. Use the J 29843-9  in order to remove the bolts (3) from the shoulder belt guide adjuster bracket (1).
  5. Remove the shoulder belt guide adjuster bracket (1) from he B-pillar (2).

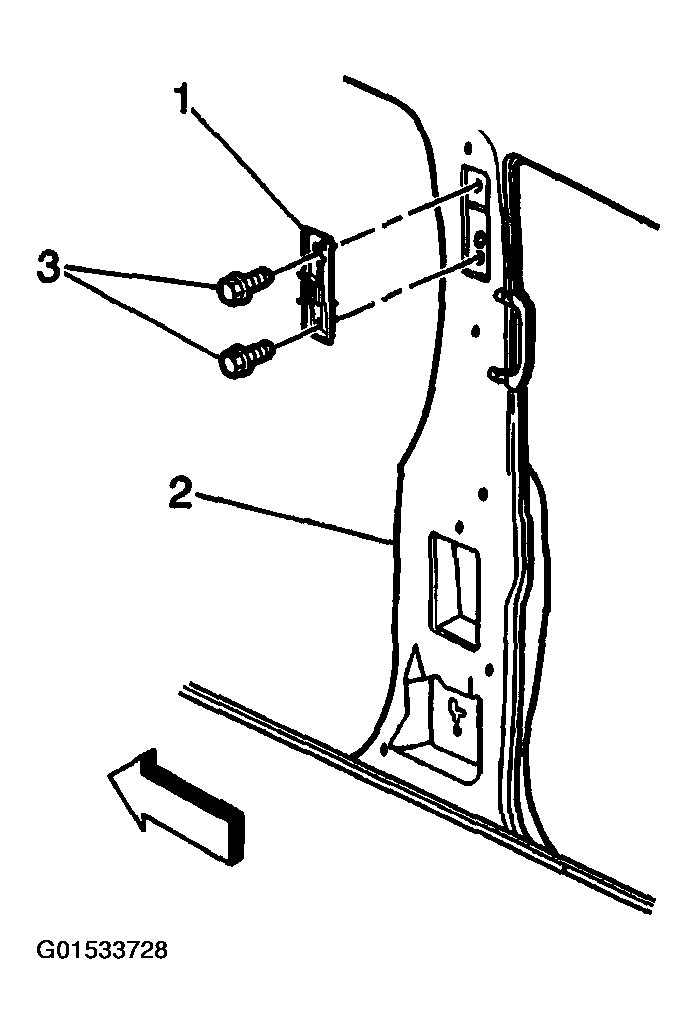

    Fig 1: Removing Shoulder Belt Guide Adjuster Bracket From He B-Pillar
    G01533728Courtesy of GENERAL MOTORS CORP.
