Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle side belt to the seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nut (2) securing buckle side belt (1) to the seat cushion frame.

    Tighten

    Tighten the rear seat buckle belt nut to 53 N.m (39 lb ft).

  3. Install the seat cushion finish covers. Refer to SEAT SYSTEM  in Seats.

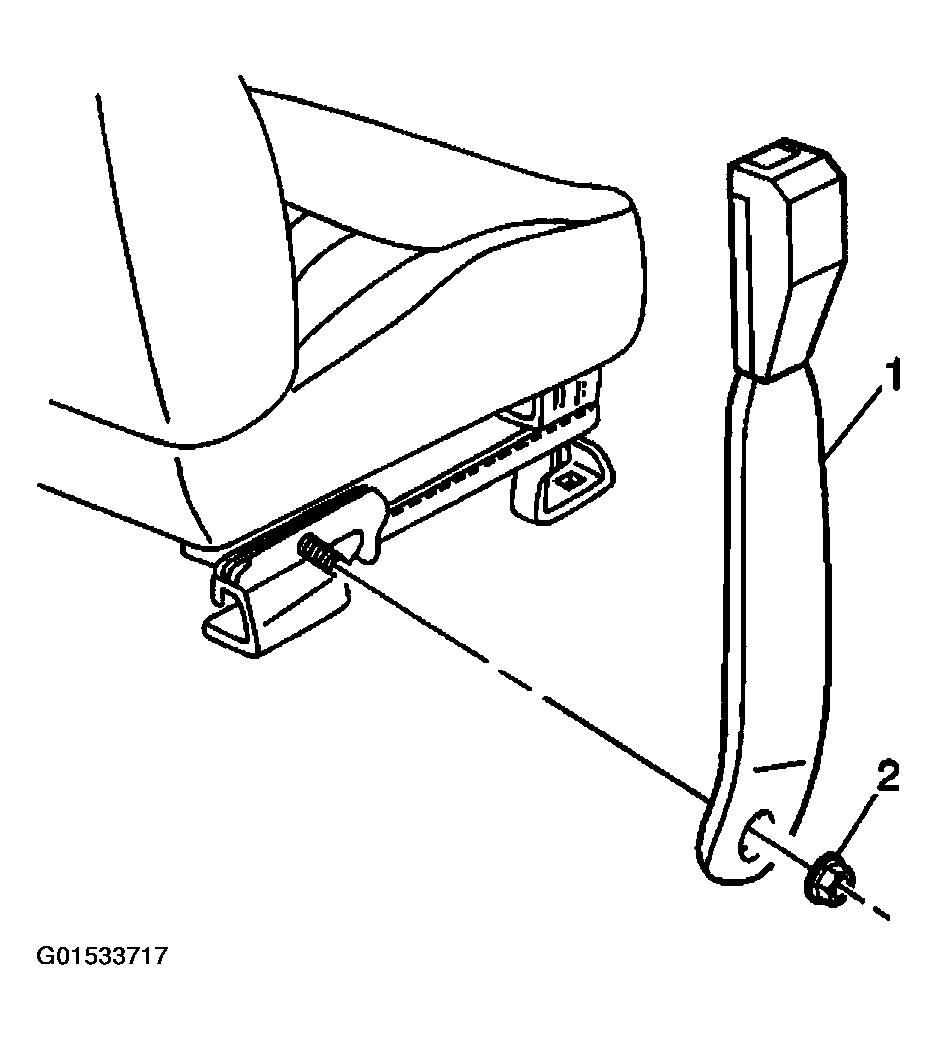

    Fig 1: Installing Buckle Side Belt To Seat
    G01533717Courtesy of GENERAL MOTORS CORP.
