Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

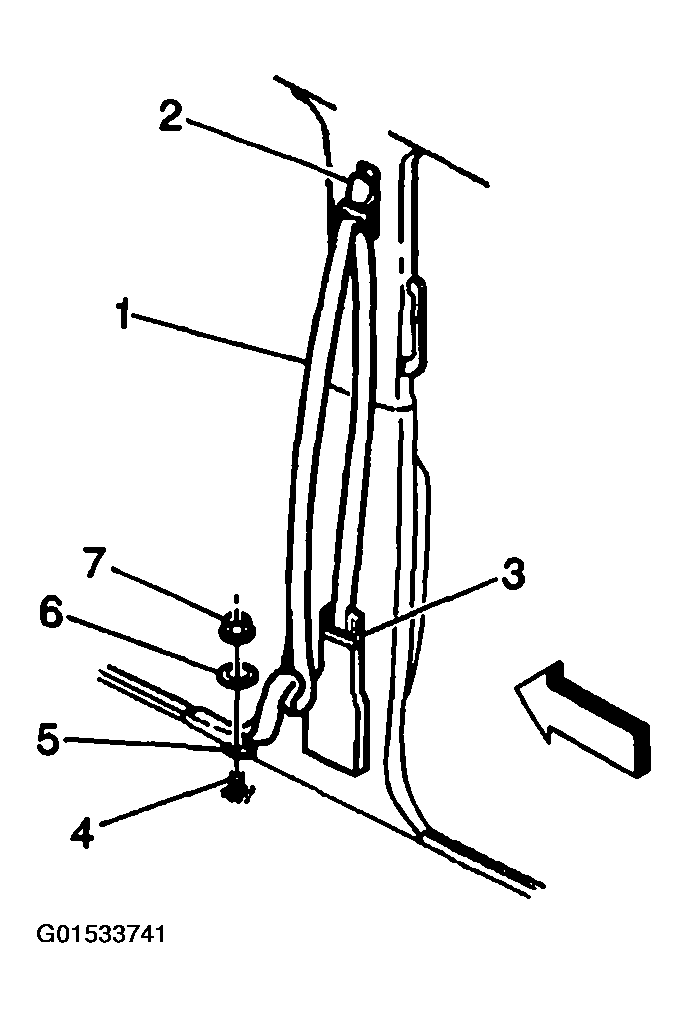

- Install the retractor side belt (1) to the vehicle.
- Install the retractor side seat belt anchor bracket (5) to the rear seat stud (4).NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the nuts securing the front seat/retractor side seat belt (1) lower anchor bracket to the floor.
Tighten
Tighten the front seat/retractor side seat belt lower anchor nut to 40 N.m (30 lb ft).

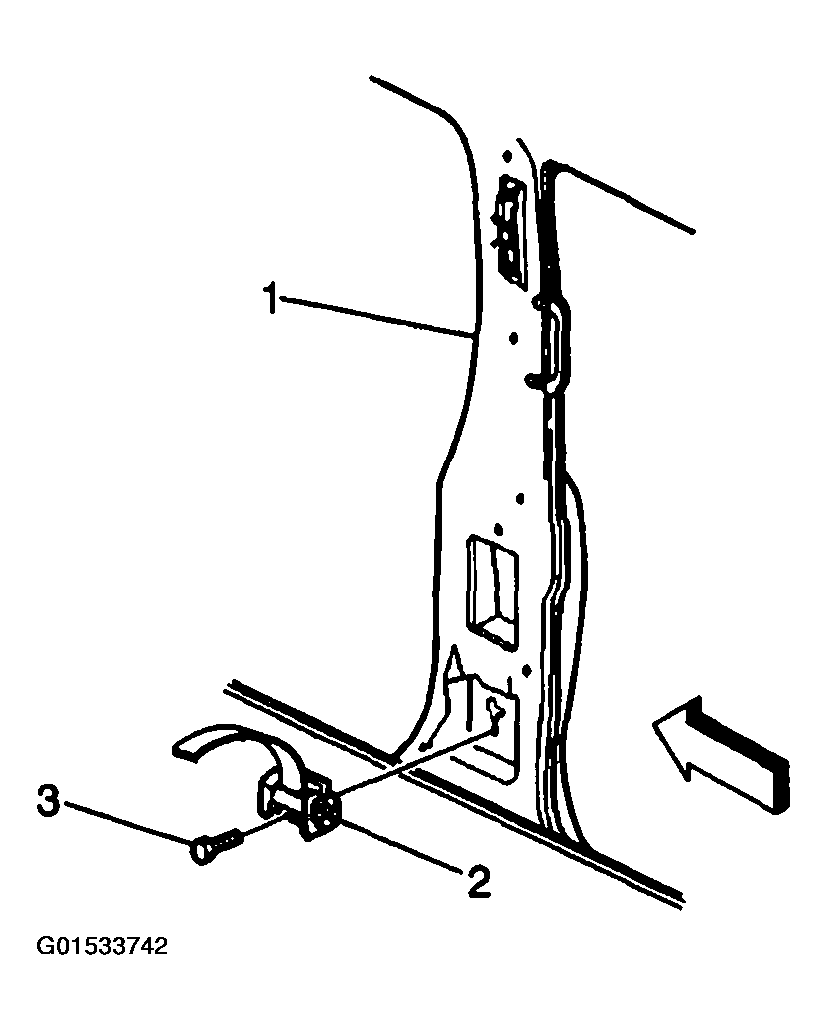

- Install the seat belt retractor (2) to the center pillar (1).
- Use the J 29843-9
in order to install the retractor bolt (3).
Tighten
Tighten the front seat belt retractor bolt to 43 N.m (32 lb ft).
- Install the plastic escutcheon (3) into the center pillar where the retractor side seat belt webbing exits.
- Install the center pillar lower trim panels. INTERIOR TRIM in Interior Trim.
- Install the center pillar upper trim panels. Refer to INTERIOR TRIM in interior Trim.
- Install the nut securing the front seat belt upper guide loop anchor (2) to the center pillar.
Tighten
Tighten the front seat belt upper guide loop anchor nut to 29 N.m (21 lb ft).
- Install the plastic shoulder belt guide cover to the adjuster bracket (2).
