Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover (2) from the upper seat belt anchor.
  2. Use the J 29843-9  in order to remove the bolt (1) securing the upper seat belt anchor from the D-pillar (3).
  3. Remove the upper seat belt anchor from the D-pillar (3).
  4. Raise the carpeting in order to expose the lower seat belt anchor bolt (5).
  5. Use the J 29843-9  in order to remove the bolt (5) securing the lower seat belt anchor (4) from the floor.

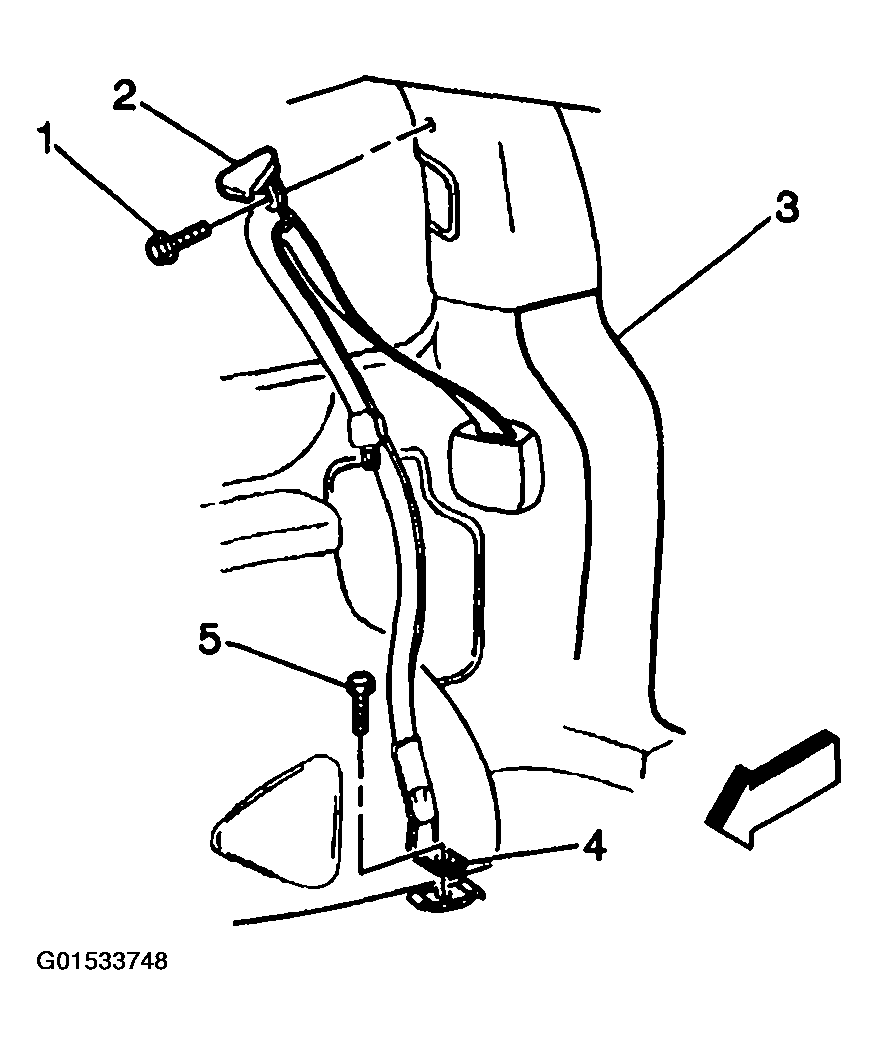

    Fig 1: Removing Cover From Upper Seat Belt Anchor
    G01533748Courtesy of GENERAL MOTORS CORP.
  6. Remove the plastic trim cover from the D-pillar (3) trim panel. Slide the belt webbing through the slot.
  7. Remove the driver's side rear quarter trim with RPO-C34, rear A/C only. Refer to INTERIOR TRIM  in Interior Trim.
  8. Use the J 29843-9  in order to remove the bolt securing the retractor from the D-pillar.
  9. Remove the retractor side seat belt from the vehicle.
  10. Remove the retractor from the vehicle.
    Fig 2: Removing Retractor From Vehicle
    G01533749Courtesy of GENERAL MOTORS CORP.
