Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the retractor side seat belt to the vehicle.
Install the retractor to the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Use the J 29843-9 in order to install the bolt securing the retractor to the D-Pillar.
Tighten

Tighten the seat belt retractor bolt D-pillar to 43 N.m (32 lb ft).
Install the drivers side rear quarter trim with RPO-C34 rear AC only. Refer to INTERIOR TRIM in Interior Trim.

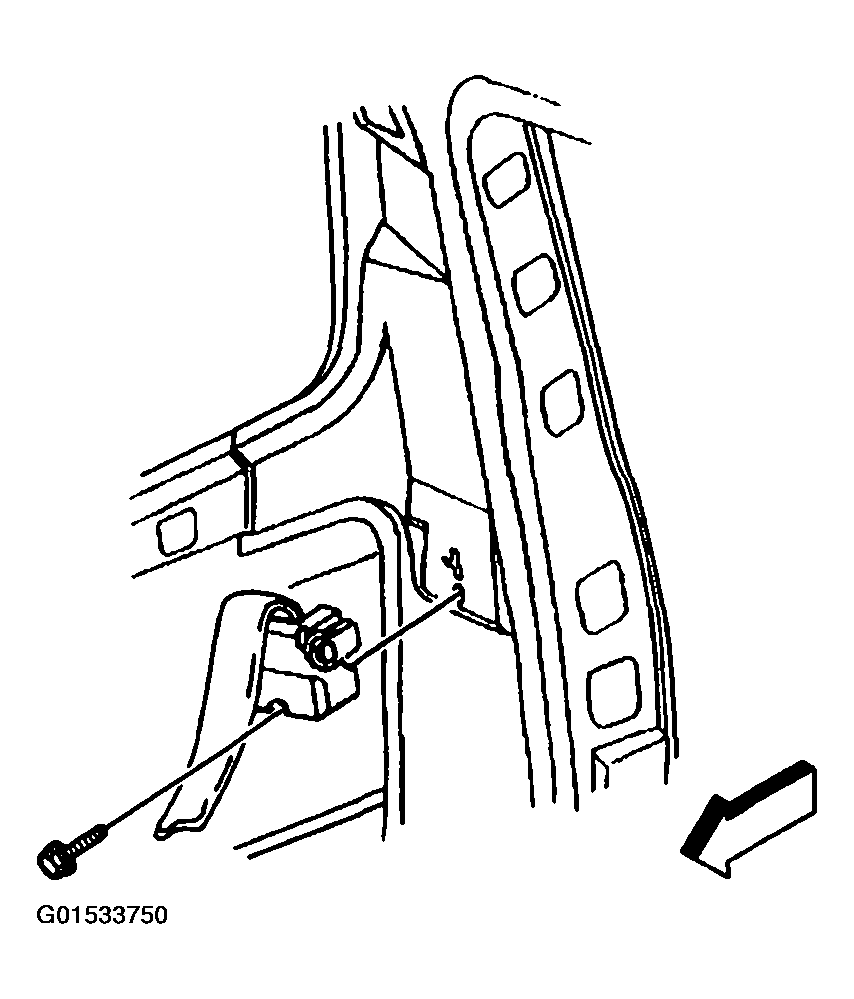

Fig 1: Installing Retractor Side Seat Belt To Vehicle
Courtesy of GENERAL MOTORS CORP.
Slide the belt webbing through the slotted trim cover. Then snap the plastic trim cover to the D-Pillar (3) trim panel.
Install the lower seat belt anchor (4) to the floor.
Use the J 29843-9 in order to install the bolt (5) securing the lower seat belt anchor (4) to the floor.
Tighten

Tighten the lower seat belt anchor bolt D-pillar to 43 N.m (32 lb ft).
Install the upper seat belt anchor (1) to the D-Pillar (3).
Use the J 29843-9 in order to install the bolt (1) securing the upper seat belt anchor to the D-Pillar (3).
Tighten

Tighten the upper seat belt anchor bolt D-pillar to 43 N.m (32 lb ft).
Install the cover (2) to the upper seat belt anchor.

Fig 2: Installing Cover To Upper Seat Belt Anchor
