Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat belt retractor to the C-pillar.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Use the J 29843-9 in order to install the bolt securing the seat belt retractor to the C-pillar.
Tighten

Tighten the seat belt retractor bolt C-pillar to 43 N.2 (32 lb ft).
Install the left body side front trim panel. Refer to INTERIOR TRIM in Interior Trim.

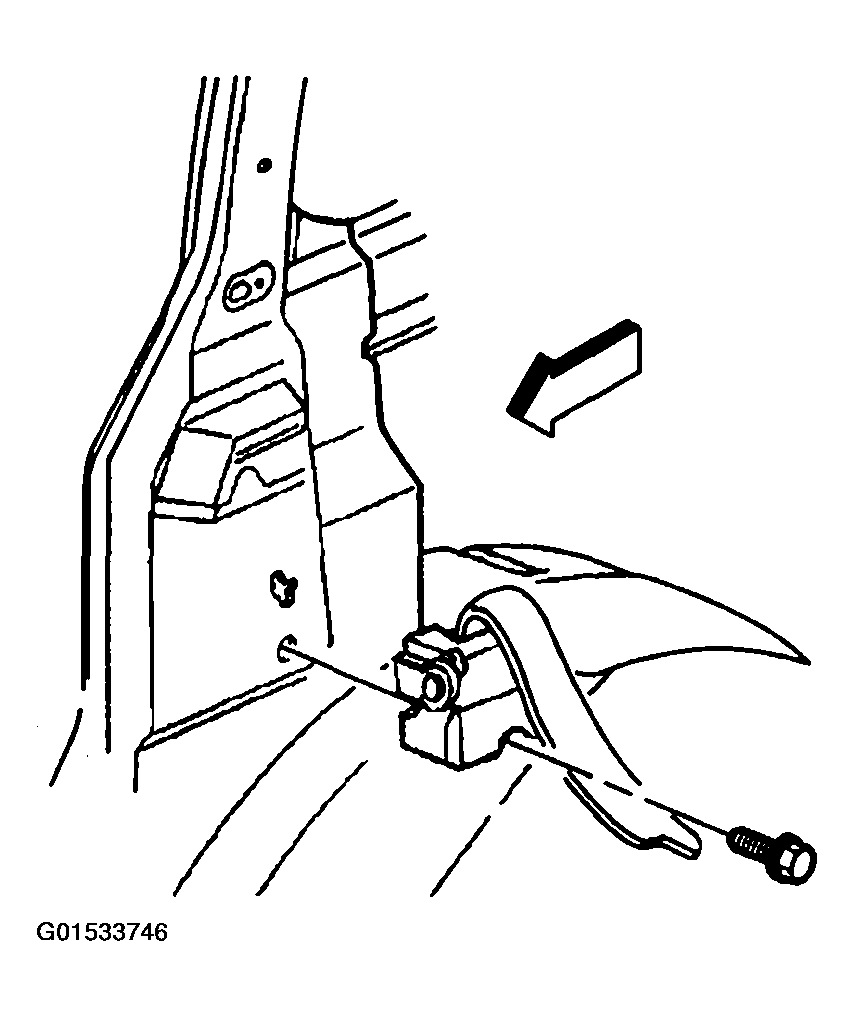

Fig 1: Installing Seat Belt Retractor To C-Pillar
Courtesy of GENERAL MOTORS CORP.
Install the cup holder/armrest trim cover (3) in place on the passengers side.
Use the J 29843-9 in order to install the bolt (5) securing the lower seat retractor side belt anchor (4) to the C-pillar.
Tighten

Tighten the lower seat belt anchor bolt C-pillar to 43 N.m (32 lb ft).
Install the seat belt anchor to the mini-buckle on the vehicles with the 60/40 split bench.
Use the J 29843-9 in order to install the bolt (2) securing the upper seat belt anchor (1).
Tighten

Tighten the upper seat belt anchor bolt C-pillar to 43 N.m (32 lb ft).
Install the cover onto the upper seat belt anchor (1).

Fig 2: Installing Cover Onto Upper Seat Belt Anchor
Courtesy of GENERAL MOTORS CORP.
