Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center belts (1) to the seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts (3) securing the center belts to the seat cushion frame.

    Tighten

    Tighten the rear seat center belt bolts to 53 N.m (39 lb ft).

  3. Install the seat cushion cover retainers (2) to the bottom of the seat frame.
  4. Install the rear seat riser. Refer to SEAT SYSTEM  in Seats.
  5. Install the recliner trim cover. Refer to SEAT SYSTEM  in Seats.
  6. Install the rear seat. Refer to SEAT SYSTEM  in Seats.

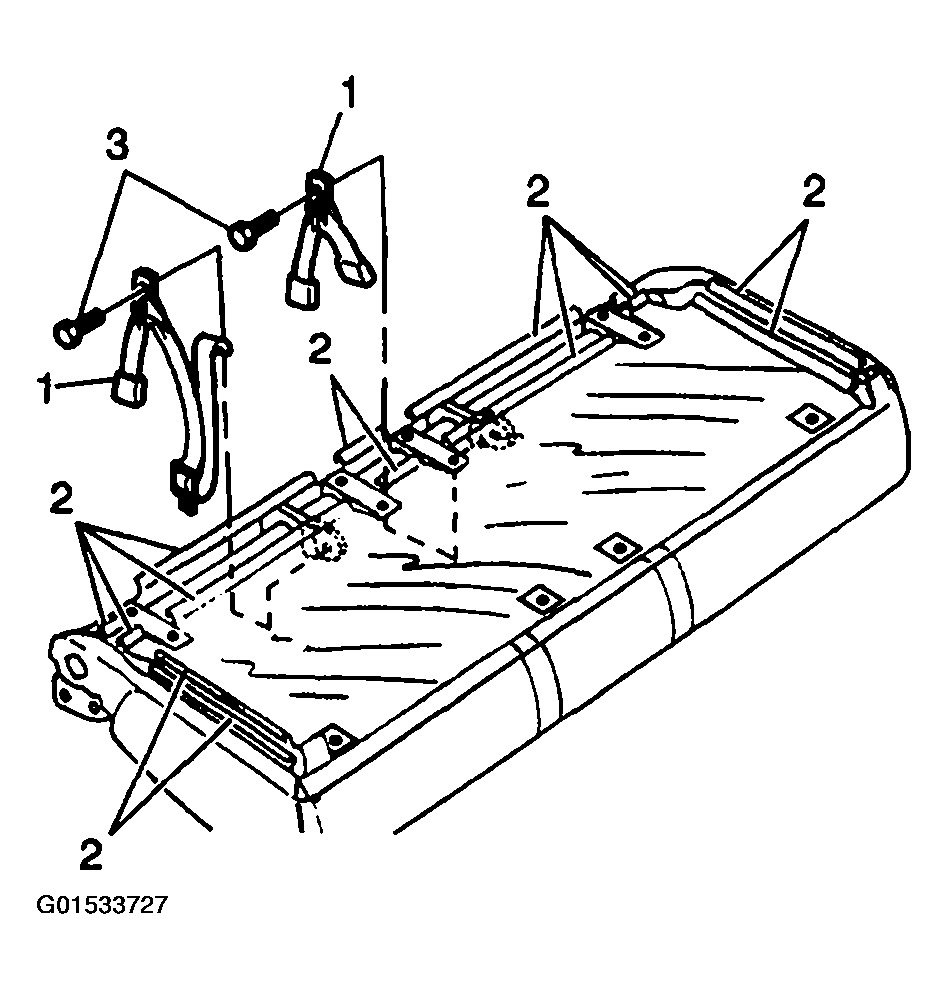

    Fig 1: Installing Center Belts To Seat
    G01533727Courtesy of GENERAL MOTORS CORP.
