Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to SEAT SYSTEM  in Seats.
  2. Remove the recliner trim cover. Refer to SEAT SYSTEM  in Seats.
  3. Remove the rear seat riser. Refer to SEAT SYSTEM  in Seats.
  4. Remove the seat cushion cover retainers from the seat frame.
  5. Remove the bolts securing the buckle side belts from the seat cushion frame.

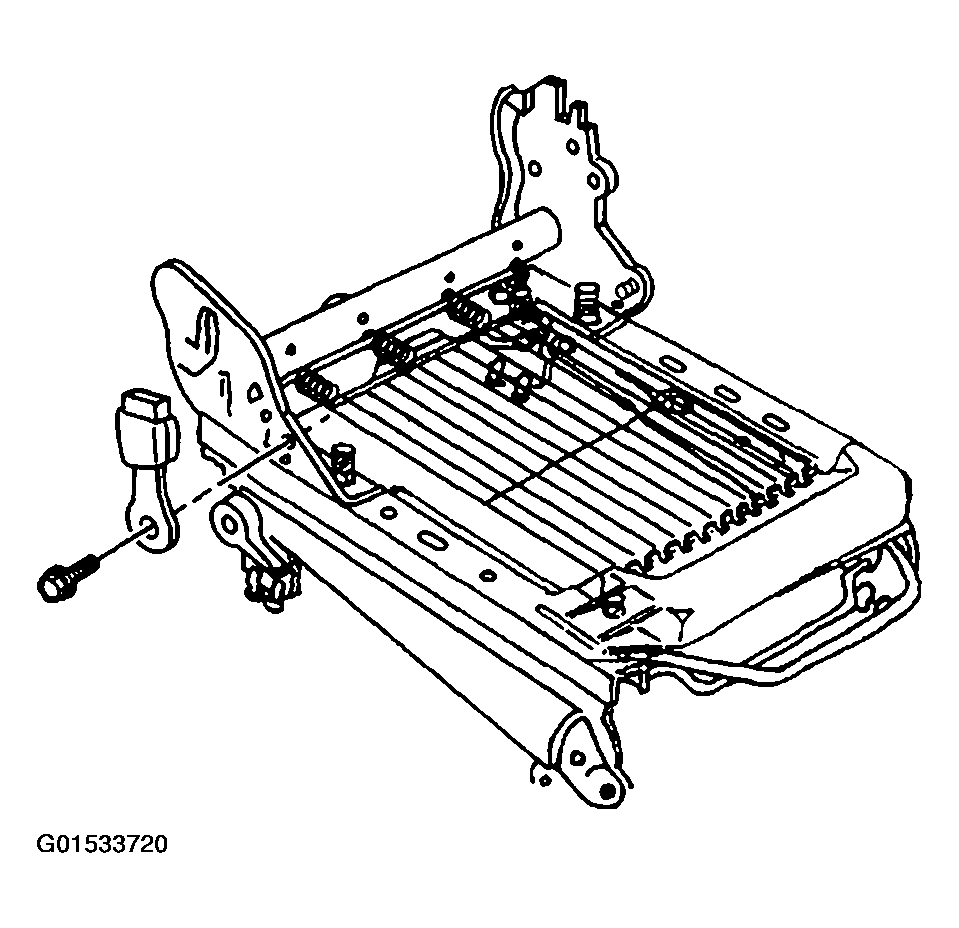

    Fig 1: Removing Bolts Securing Buckle Side Belts From Seat Cushion Frame
    G01533720Courtesy of GENERAL MOTORS CORP.
  6. Remove the buckle side belts (1) from the seat.
  7. Remove the bolt (2) securing the mini-buckle from the 60 percent seat cushion frame.

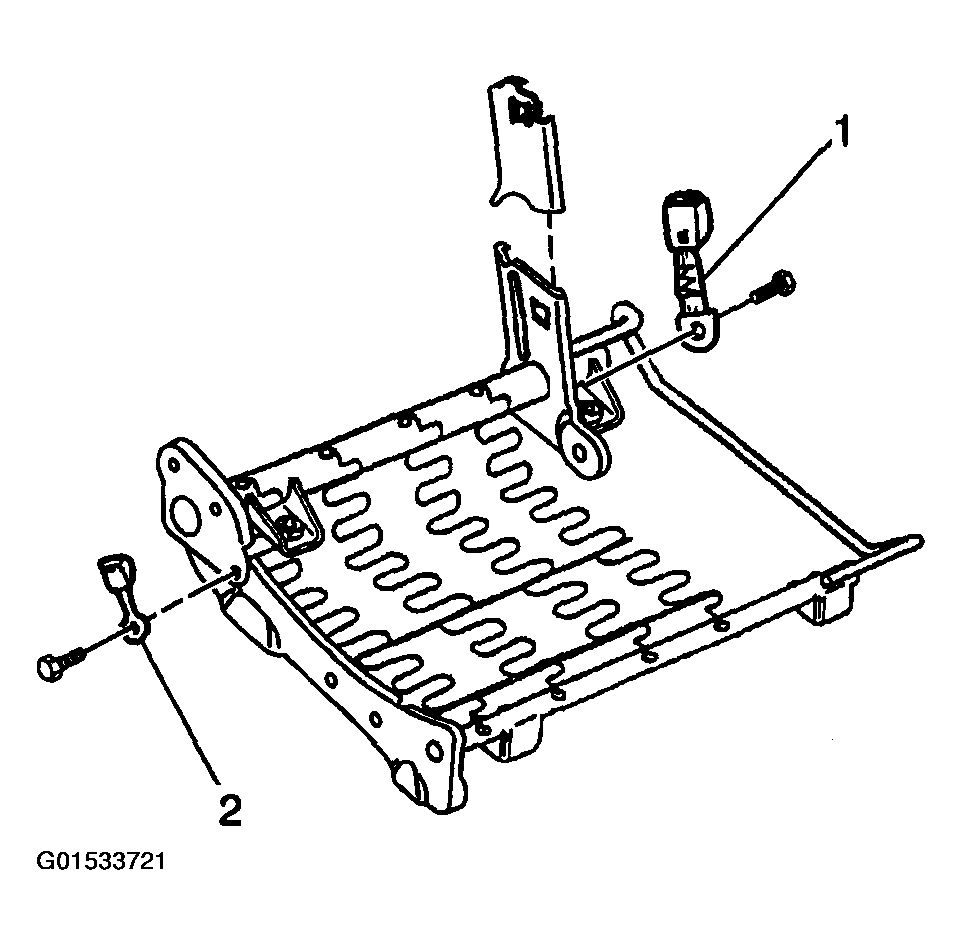

    Fig 2: Removing Buckle Side Belts From Seat
    G01533721Courtesy of GENERAL MOTORS CORP.
