Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat inboard finish panel. Refer to SEAT SYSTEM  in Seats.
  2. Remove the nut (2) securing the buckle side belt (1) from the seat cushion frame.
  3. Remove the buckle side belt from the seat.

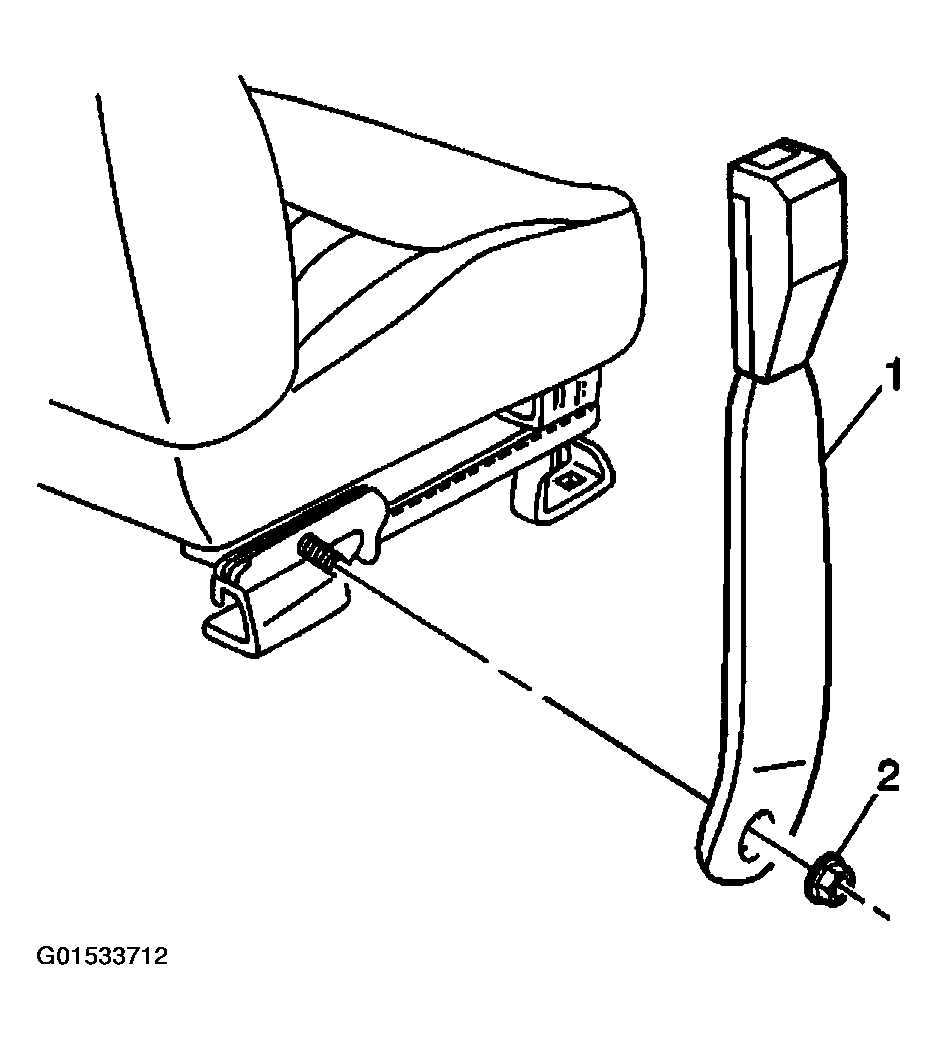

    Fig 1: Removing Buckle Side Belt From Seat
    G01533712Courtesy of GENERAL MOTORS CORP.
