Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle side belt (1) to the seat.
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.
  2. Install the nut (2) securing the buckle side belt to the seat cushion frame.

    Tighten

    Tighten the front seat buckle side belt nut to 53 N.m (39 lb ft).

  3. Install the front seat inboard finish panel. Refer to SEAT SYSTEM  in Seats.

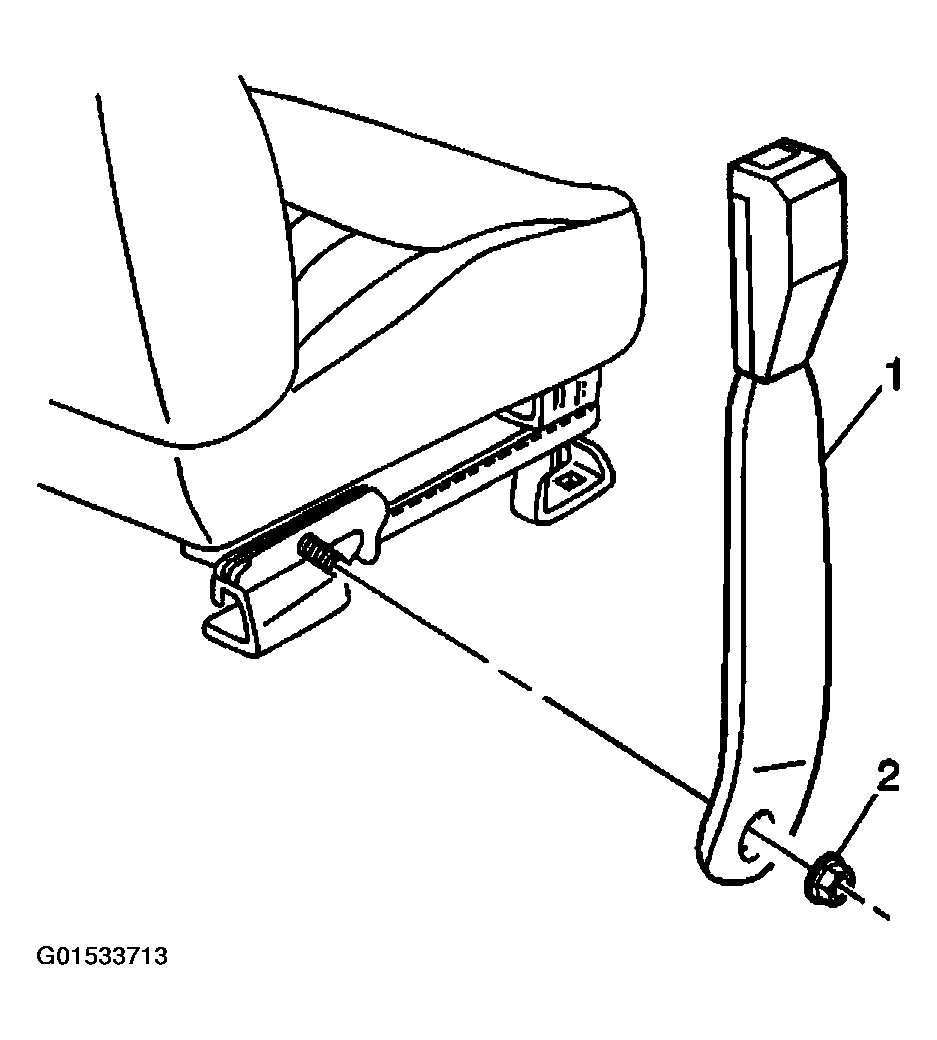

    Fig 1: Installing Buckle Side Belt To Seat
    G01533713Courtesy of GENERAL MOTORS CORP.
