Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tether strap underneath the second row seat head restraint if equipped.

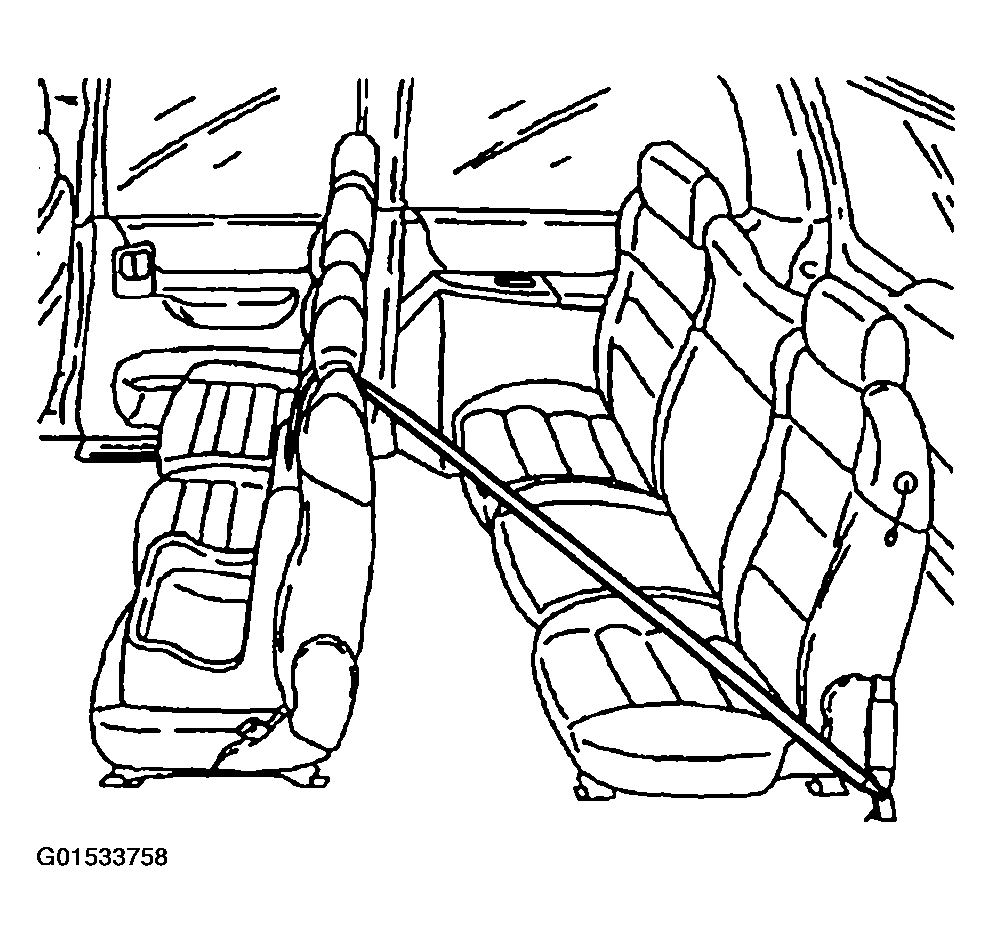

    Fig 1: Installing Tether Strap Underneath Second Row Seat Head Restraint
    G01533758Courtesy of GENERAL MOTORS CORP.
  2. Remove the staple from the seat belt anchor sleeve. Then discard the staple.
  3. Slide the sleeve to the upward position in order to expose the seat belt anchor.
  4. Install the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the tether strap spring clip is attached to the anchor plate.

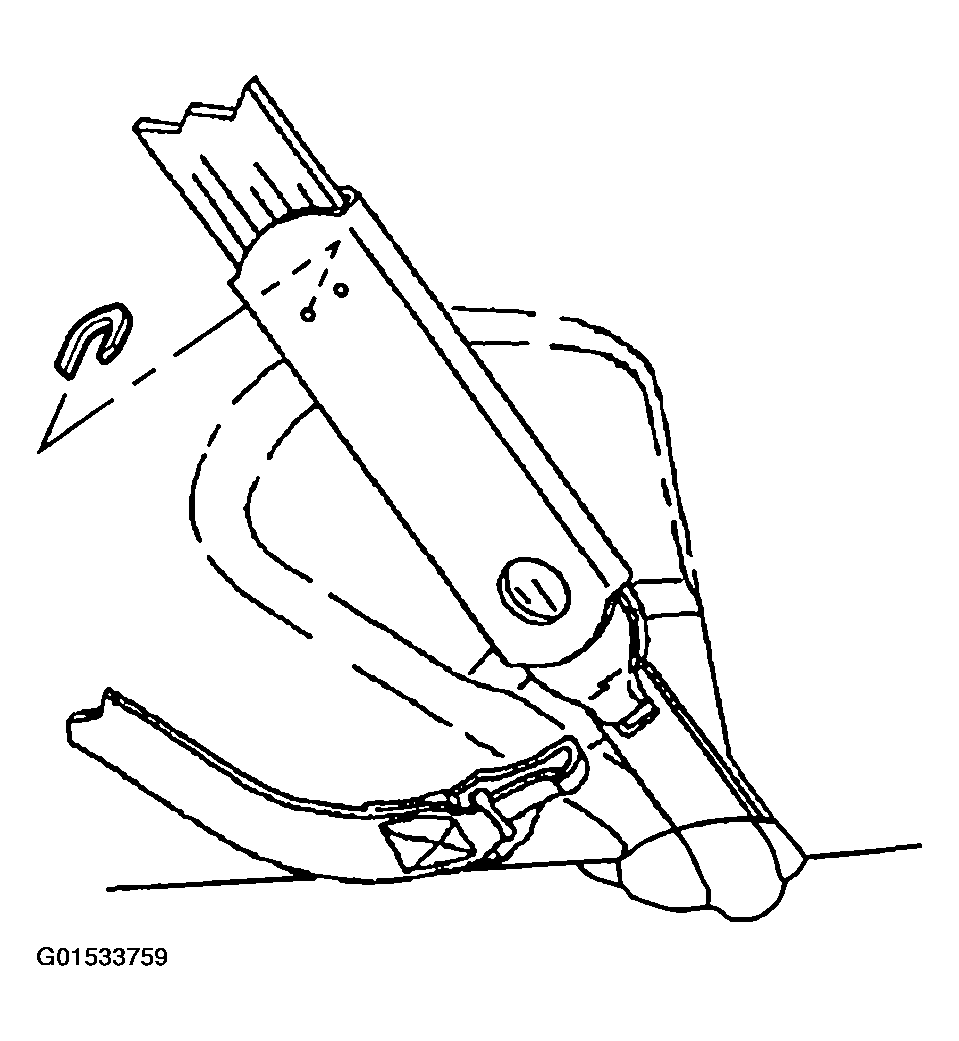

    Fig 2: Installing Tether Strap Spring Clip To Anchor Plate
    G01533759Courtesy of GENERAL MOTORS CORP.
