Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important: the child seat tether strap attaches or anchors in two different way. The tether strap attaches to the third row outboard lower seat belt anchor bracket or the third row seat riser depending on the seat configurations. Use the child seat tether strap only in the second row.

Remove the tether strap spring clip from the anchor plate.

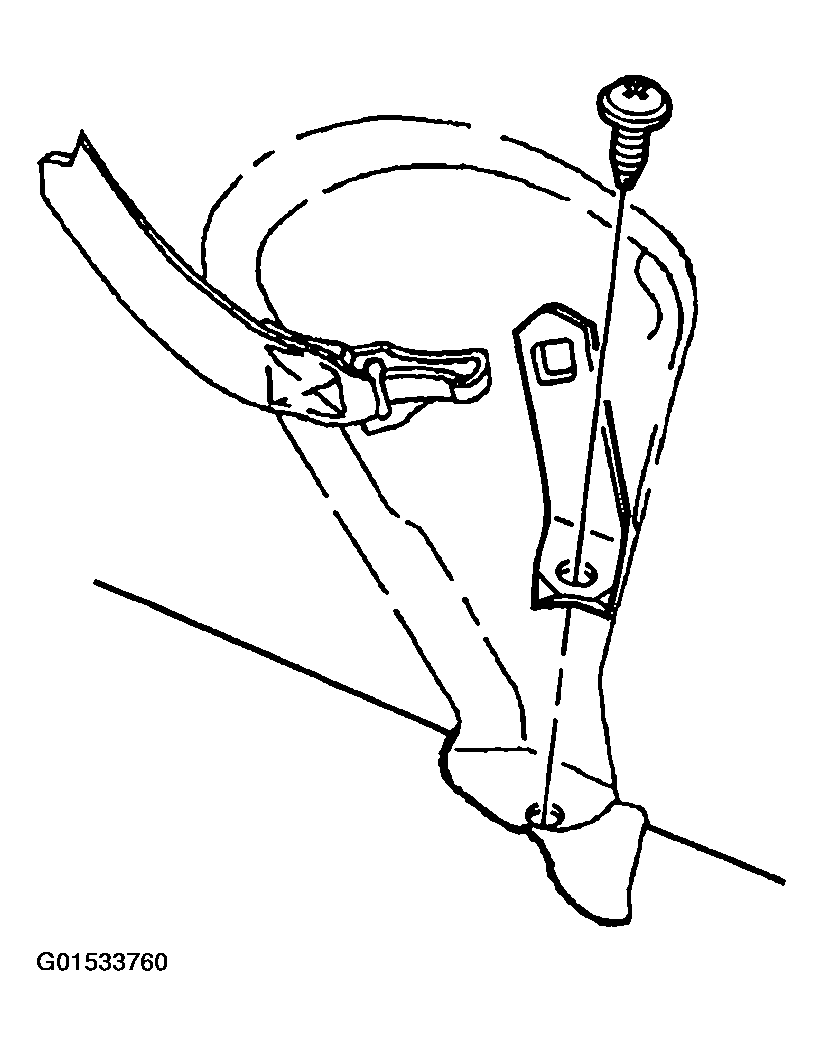

Fig 1: Removing Tether Strap Spring Clip From Anchor Plate
Courtesy of GENERAL MOTORS CORP.
Remove the tether strap from underneath the second row seat head restraint if equipped.
Remove the tether strap from the vehicle.

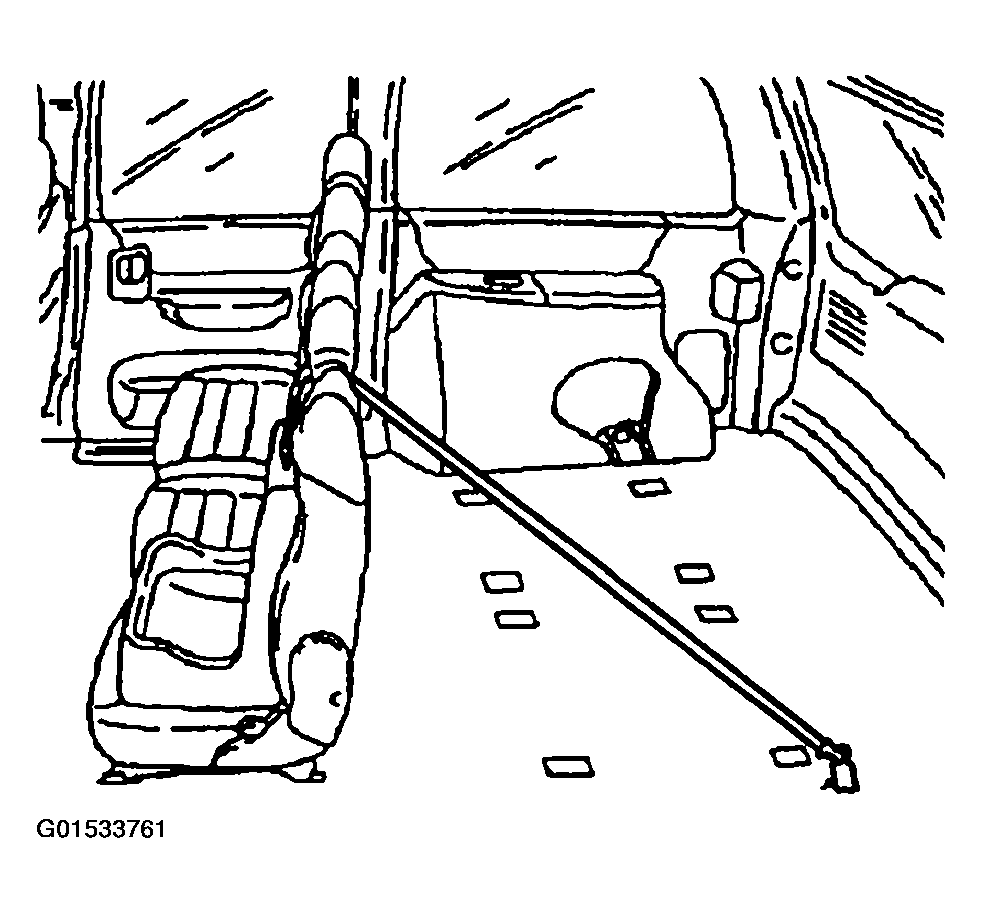

Fig 2: Removing Tether Strap From Vehicle
Courtesy of GENERAL MOTORS CORP.
