Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tether strap underneath the second row seat head restraint if equipped.
  2. Remove the carpet that covers the third row outboard anchor hole in the floor. The anchor hole location is 45 mm (1.77) in) inboard of the third row quarter trim panel. The anchor hole location is 440 - 600 mm (17.32 - 23.62 in) forward of the rear door.

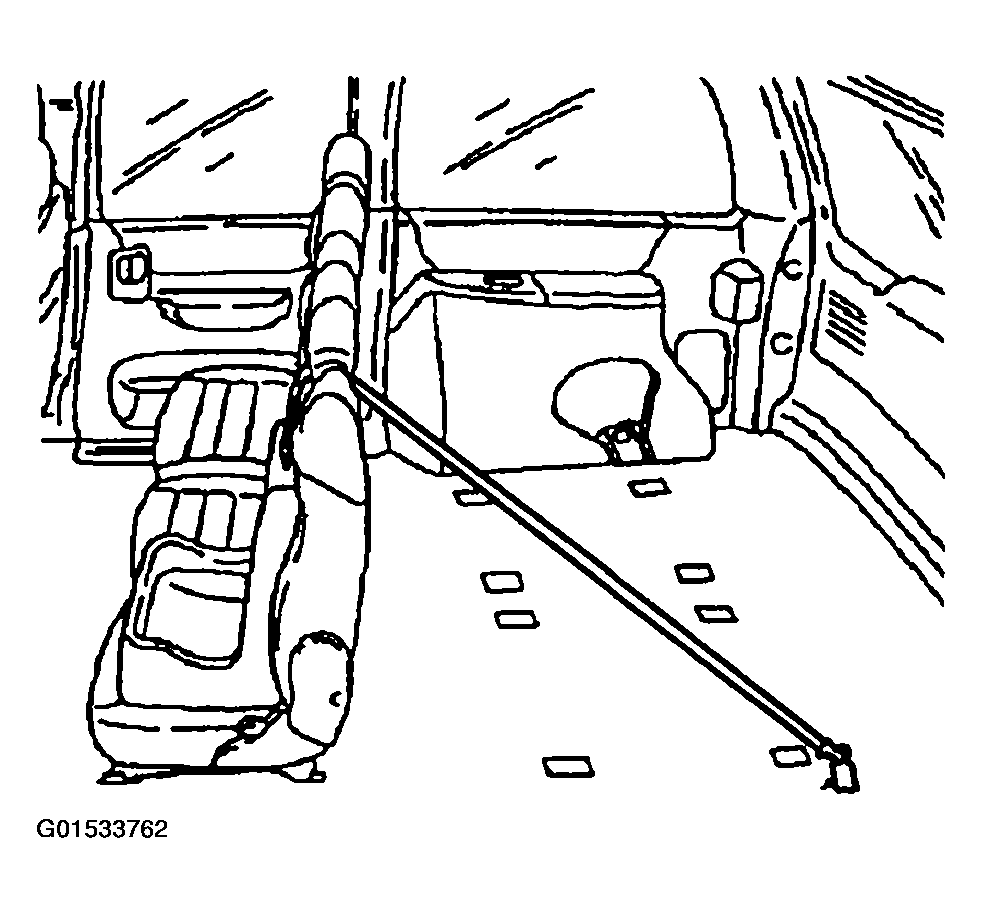

    Fig 1: Installing Tether Strap Underneath Second Row Seat Head Restraint
    G01533762Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the anchor bracket to the floor. Secure the anchor bracket with a bolt.

    Tighten

    Tighten the child seat tether strap anchor bracket bolt to 43 N.m (32 lb ft).

  4. Install the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the spring clip is attached to the anchor plate.

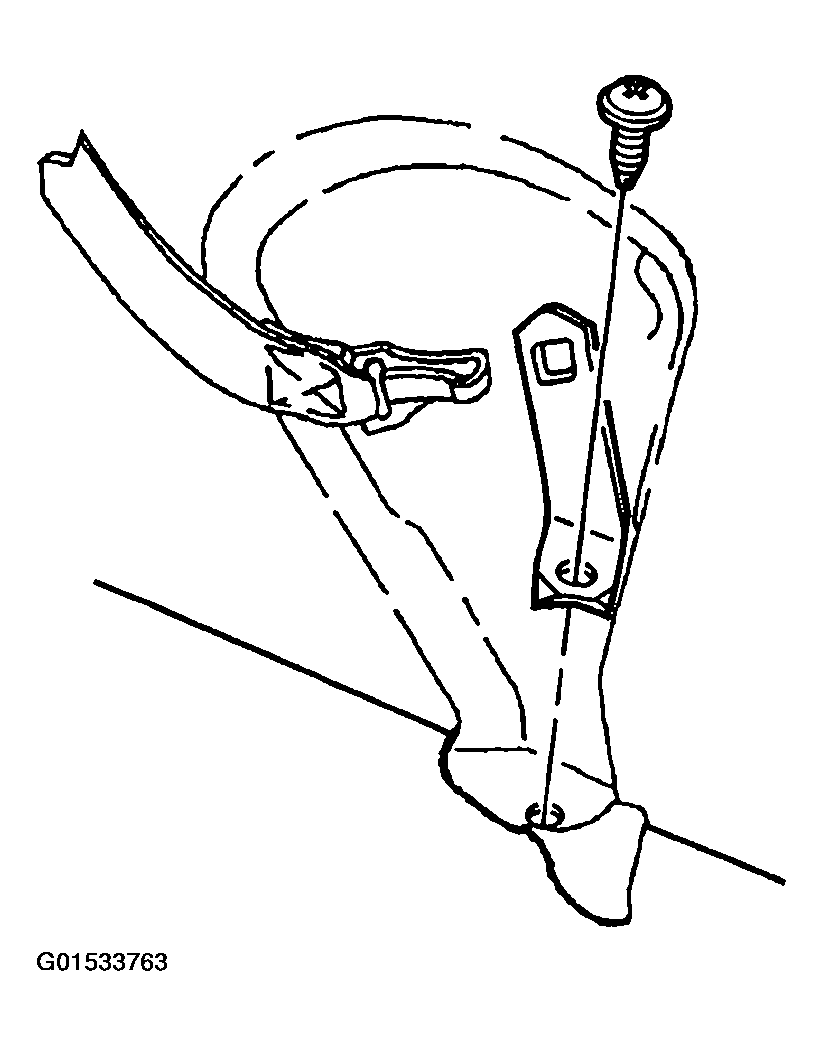

    Fig 2: Installing Anchor Bracket To Floor
    G01533763Courtesy of GENERAL MOTORS CORP.
