Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR UPPER  in Interior Trim.
  2. Remove the bearing bushing screw.

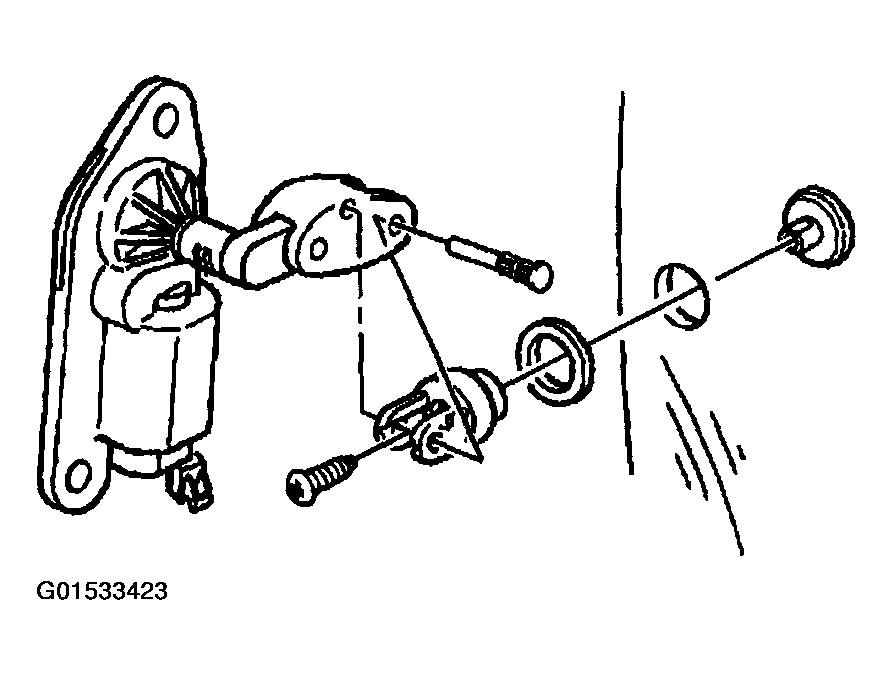

    Fig 1: Removing Bearing Bushing Screw
    G01533423Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining nuts from the rear quarter window hinge studs.
  4. Remove the rear quarter window from the vehicle.

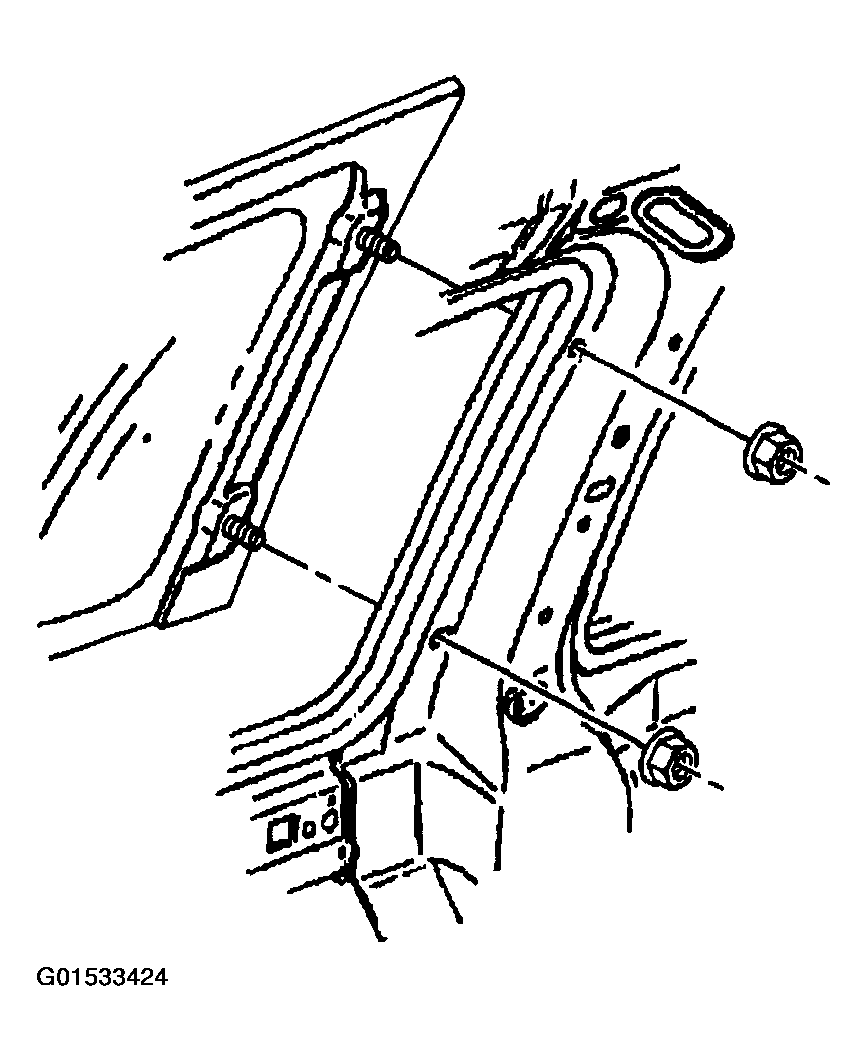

    Fig 2: Removing Rear Quarter Window From Vehicle
    G01533424Courtesy of GENERAL MOTORS CORP.
