Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear quarter window to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining nuts to the rear quarter window hinge studs.

    Tighten

    Tighten the rear quarter window hinge stud nuts to 10 N.m (89 lb in).

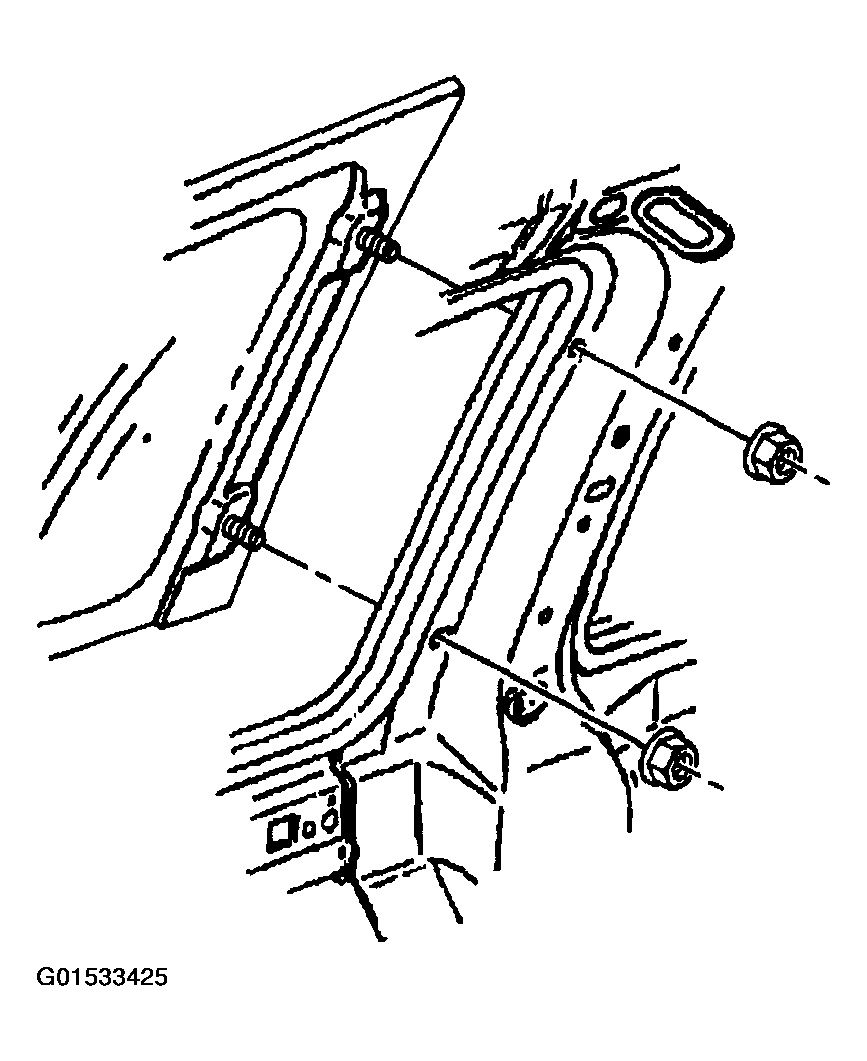

    Fig 1: Installing Rear Quarter Window To Vehicle
    G01533425Courtesy of GENERAL MOTORS CORP.
  3. Install the bearing bushing retaining screw.

    Tighten

    Tighten the bearing bushing screw to 2 N.m (18 lb in).

  4. Install the body side rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR UPPER  in Interior Trim.

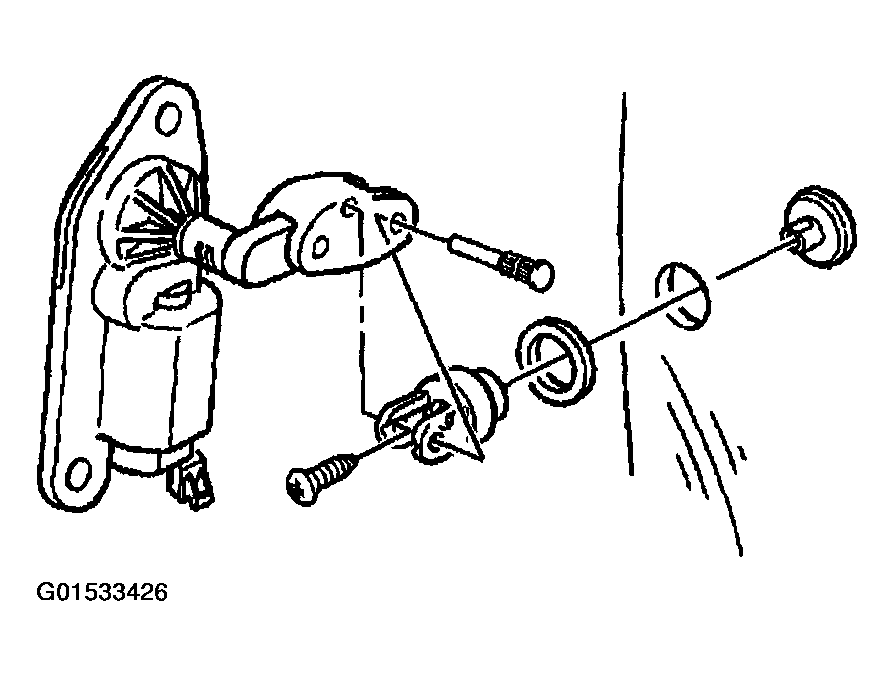

    Fig 2: Installing Bearing Bushing Screw
    G01533426Courtesy of GENERAL MOTORS CORP.
