Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Mark the location of the liftgate wedge on the liftgate spacer.
  3. Remove the screw from the liftgate wedge.
  4. Slide the liftgate wedge rearward to remove it from the liftgate wedge spacer.

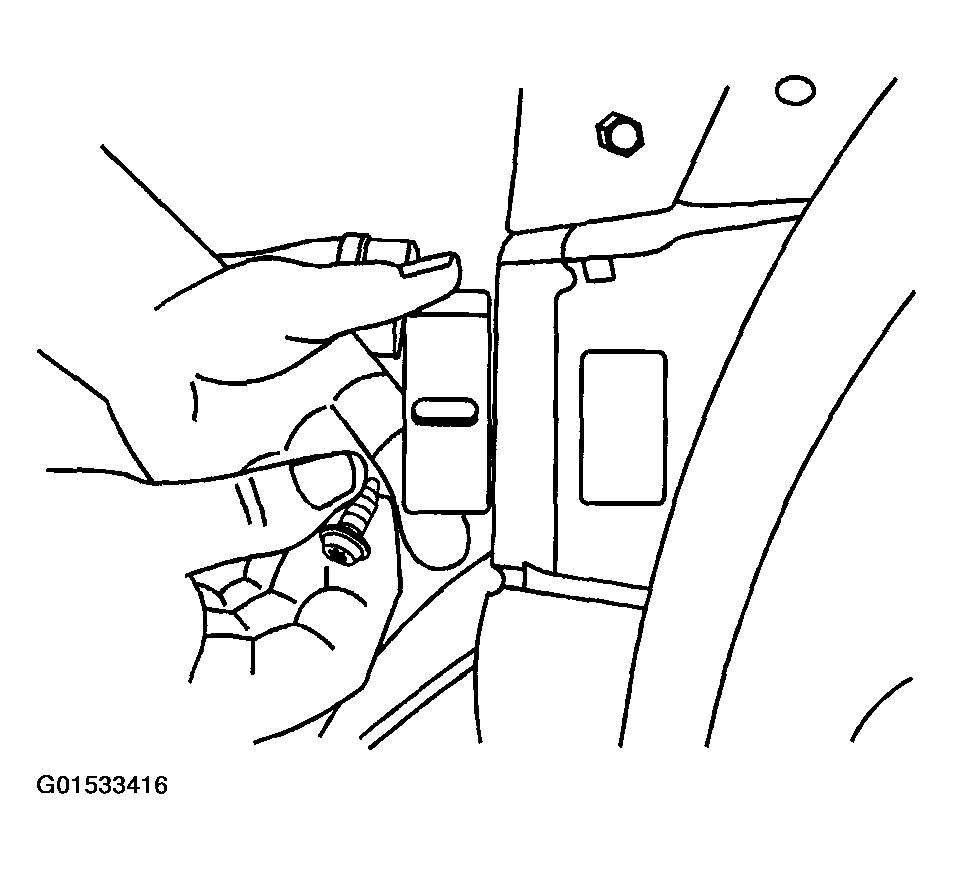

    Fig 1: Removing Liftgate Wedge Screw
    G01533416Courtesy of GENERAL MOTORS CORP.
  5. Using a flat bladed tool, remove the liftgate wedge spacer from the body.

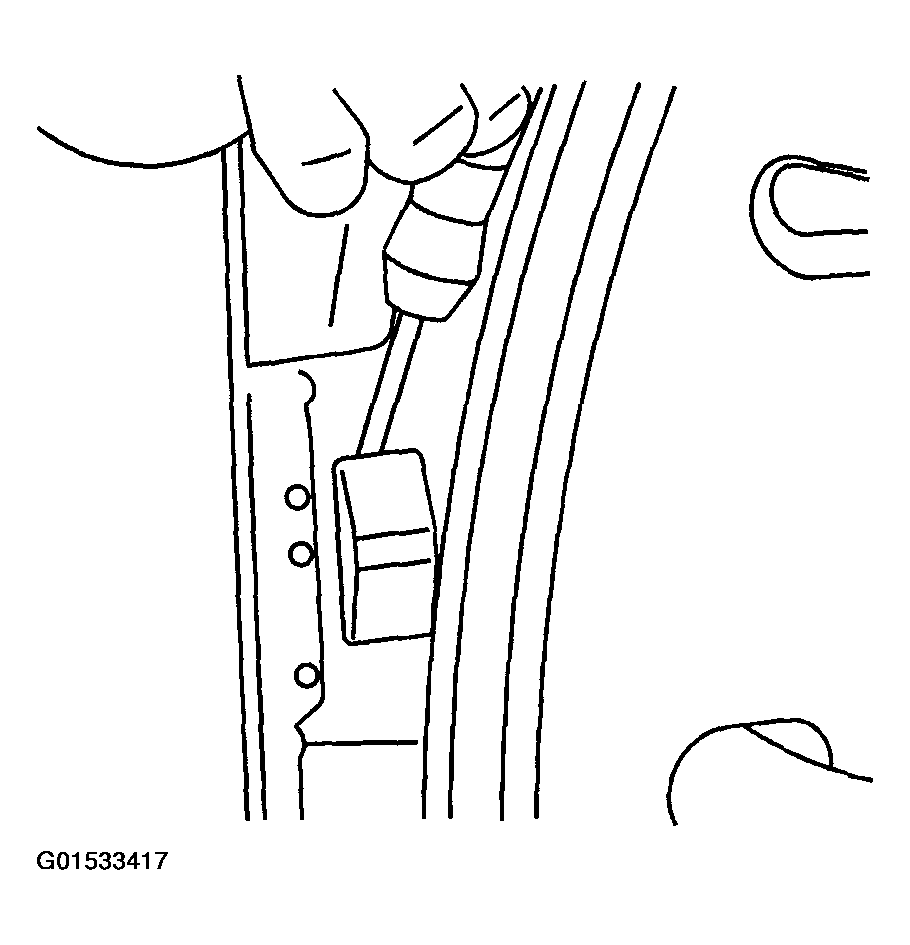

    Fig 2: Removing Liftgate Wedge Spacer From Body
    G01533417Courtesy of GENERAL MOTORS CORP.
