Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate wedge spacer to the body.
  2. Position the liftgate wedge to the liftgate wedge spacer and slide it forward to the marked location.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the liftgate wedge screw.

    Tighten

    Tighten the screw to 10 N.m (89 lb in).

  4. Close the liftgate.

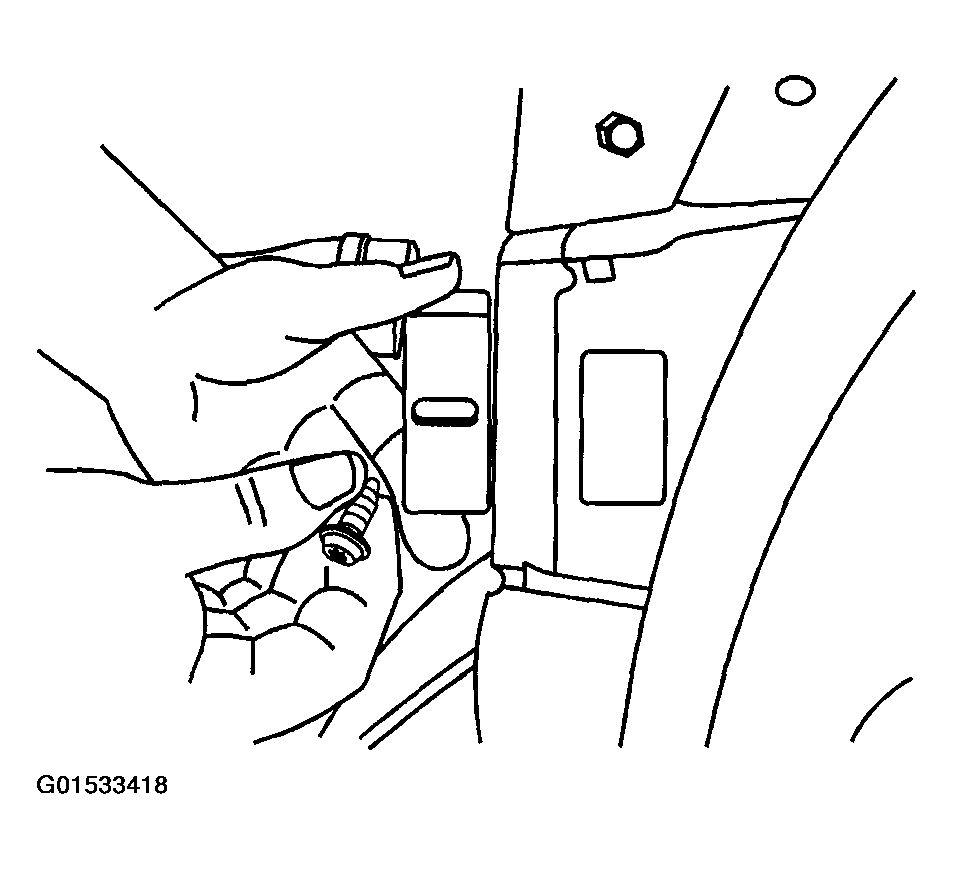

    Fig 1: Installing Liftgate Wedge Screw
    G01533418Courtesy of GENERAL MOTORS CORP.
