Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The rear quarter window weatherstrip service replacement part is a cut-to-fit part. The weather-strip must be trimmed to fit the window opening and joined together.

  1. Install the rear quarter window weatherstrip to the vehicle.
  2. Align the rear quarter window weatherstrip joint to center of the rear quarter window latch attachment point.
  3. Roll the rear quarter window weather-strip from joint to bottom of window to ensure a proper seal.
  4. Install the rear quarter window. Refer to WINDOW REPLACEMENT - REAR QUARTER   .

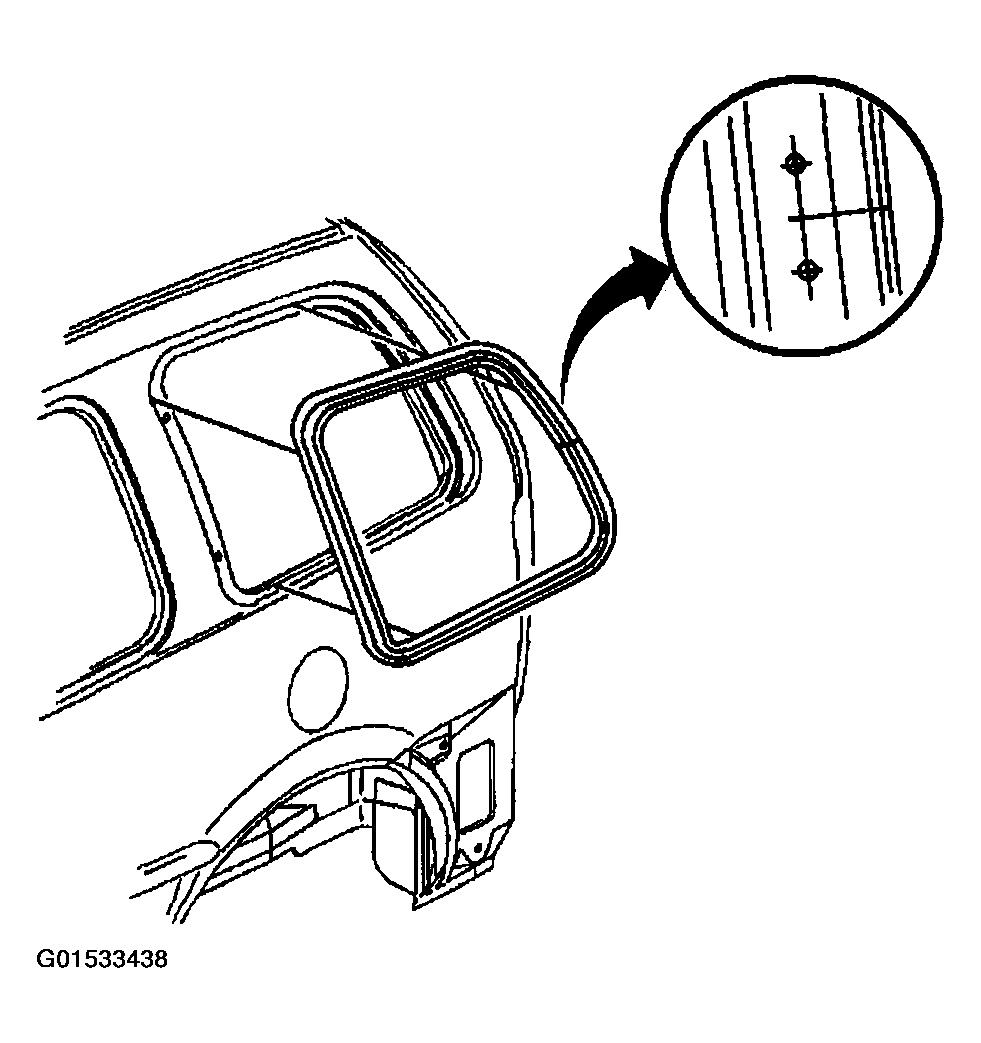

    Fig 1: Installing Rear Quarter Window Weatherstrip To Vehicle
    G01533438Courtesy of GENERAL MOTORS CORP.
