Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE  in Interior Trim.
  3. Pull the liftgate weatherstrip from the liftgate opening.
  4. Clean all adhesive from the liftgate opening pinch-weld flange.

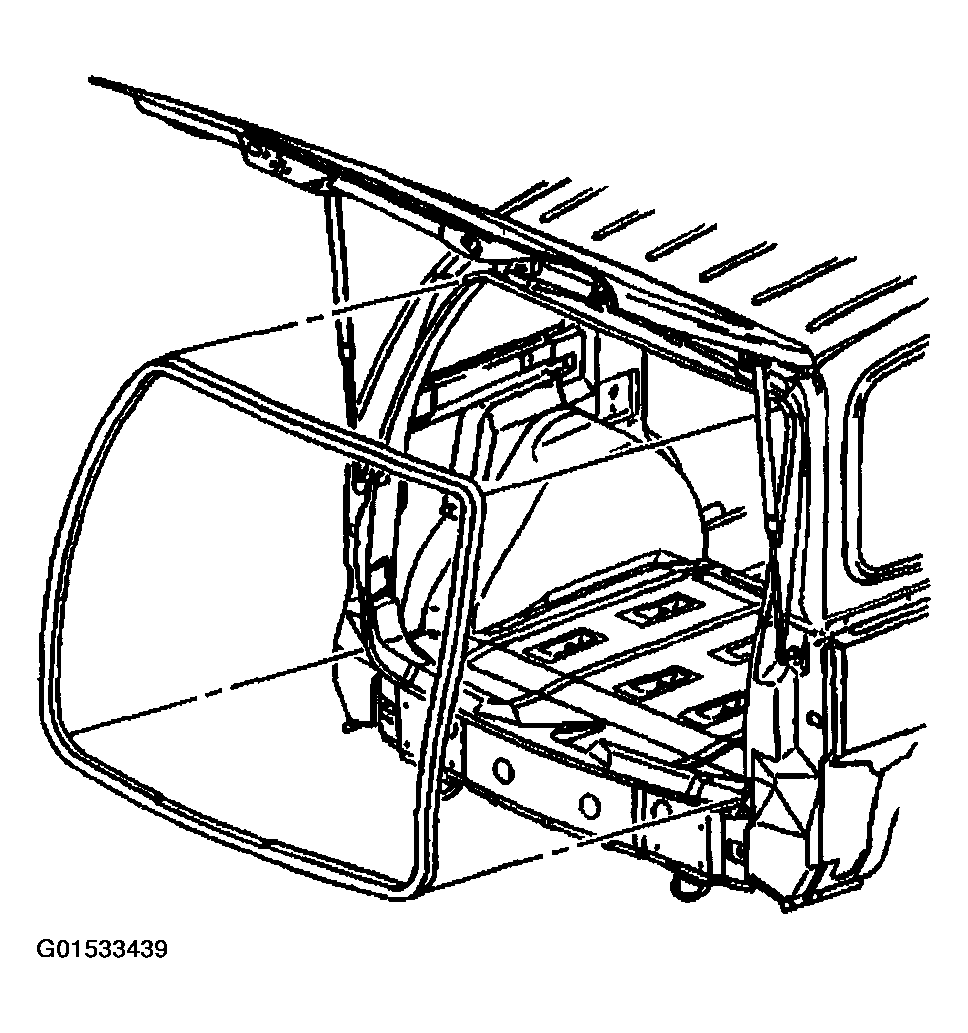

    Fig 1: Removing Liftgate Weatherstrip From Liftgate Opening
    G01533439Courtesy of GENERAL MOTORS CORP.
