Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate pull strap. Refer to PULL STRAP REPLACEMENT - LIFT GATE   .
  3. Using the J 38778  release the liftgate trim panel retainers.
  4. Remove the trim panel from the lift gate.

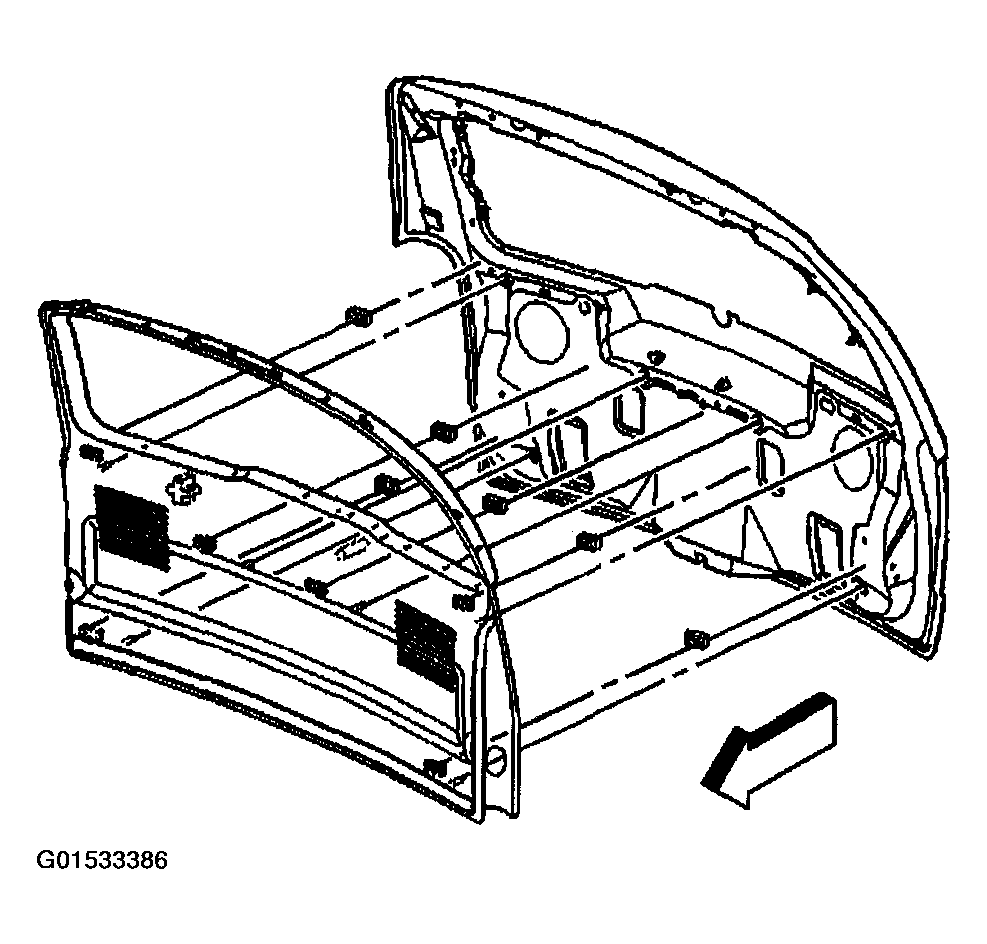

    Fig 1: Removing Lift Gate Trim Panel
    G01533386Courtesy of GENERAL MOTORS CORP.
