Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the 4-way and 2-way wedges on the liftgate trim panel to the wedges on the liftgate.
  2. Align the liftgate trim panel studs to the holes in the liftgate.
  3. Align the upper edge of the liftgate trim panel to the top center of the liftgate.
  4. Install the upper edge of the liftgate trim panel to the top center of the liftgate.
  5. Push on the liftgate trim panel in the four corners and center to secure the trim panel retainers.
  6. Install the liftgate pull strap. Refer to PULL STRAP REPLACEMENT - LIFT GATE   .
  7. Close the liftgate.

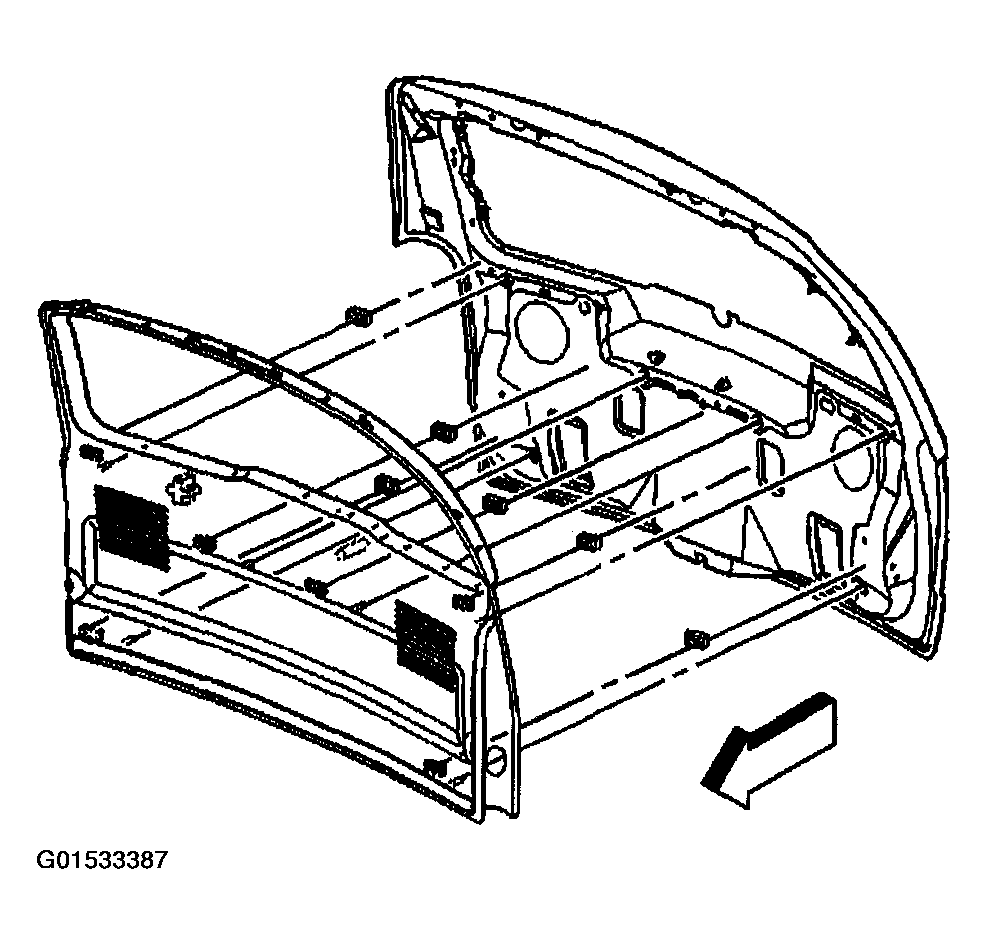

    Fig 1: Installing Lift Gate Trim Panel
    G01533387Courtesy of GENERAL MOTORS CORP.
