Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the liftgate.
  2. Remove the tail lamps. Refer to TAIL LAMP ASSEMBLY AND / OR BACKUP, SIDEMARKER, STOP, TURN SIGNAL BULB REPLACEMENT  in Lighting Systems.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in Cautions and Notices.
  3. Lift up the snap ring retainer on the bottom of the assist rod struts using a small flat-bladed tool.
  4. Remove the bottom of the strut from the ball stud on the body.

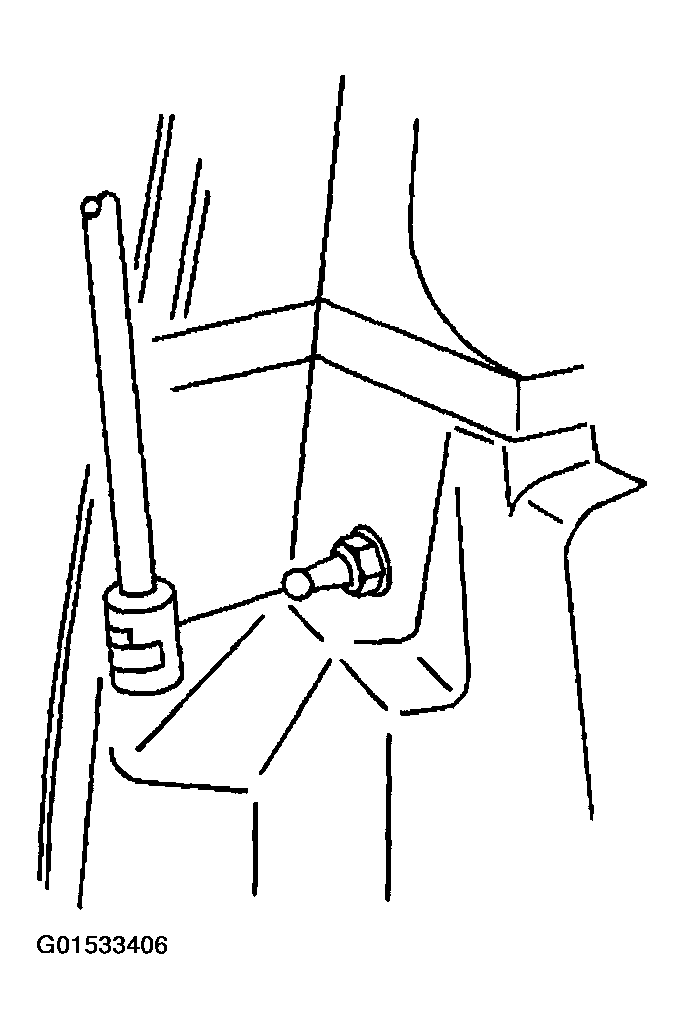

    Fig 1: Removing Bottom Of Strut From Ball Stud On Body
    G01533406Courtesy of GENERAL MOTORS CORP.
  5. Lift up on the snap ring at the top of the strut using a small flat-bladed tool.
  6. Remove the top of the strut from the ball stud.
  7. Remove the strut from the vehicle.

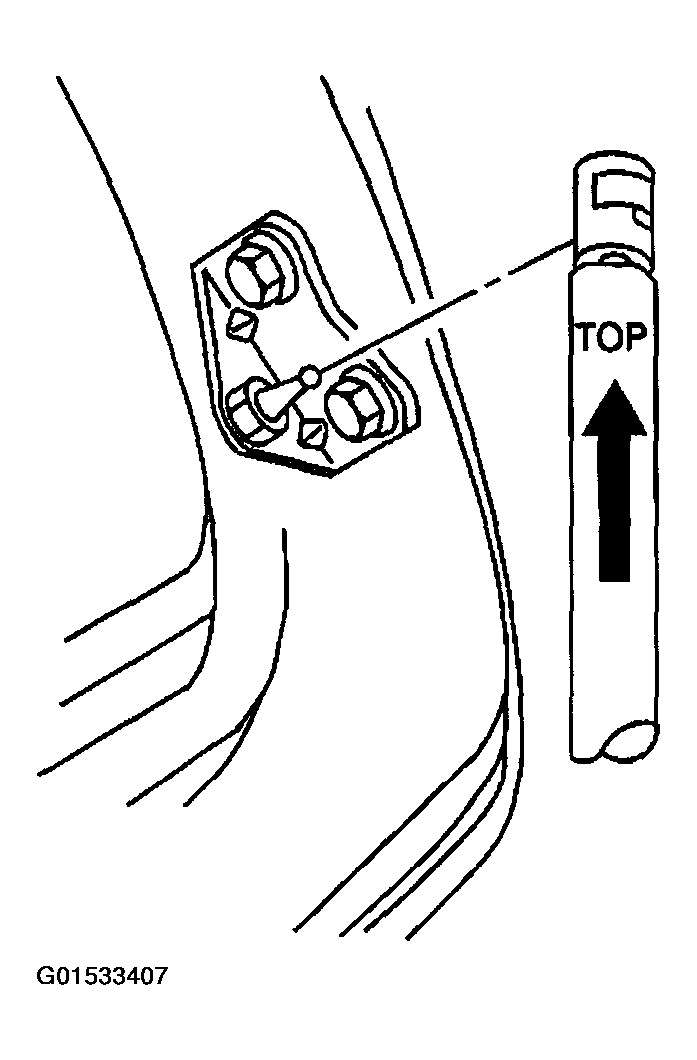

    Fig 2: Removing Top Of Strut From Ball Stud
    G01533407Courtesy of GENERAL MOTORS CORP.
