Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important: The top of the liftgate strut is marked with the word "TOP" and an up-arrow.

Align the top of the strut with the ball stud on the liftgate.
Press on the top of the strut to install onto the ball stud.

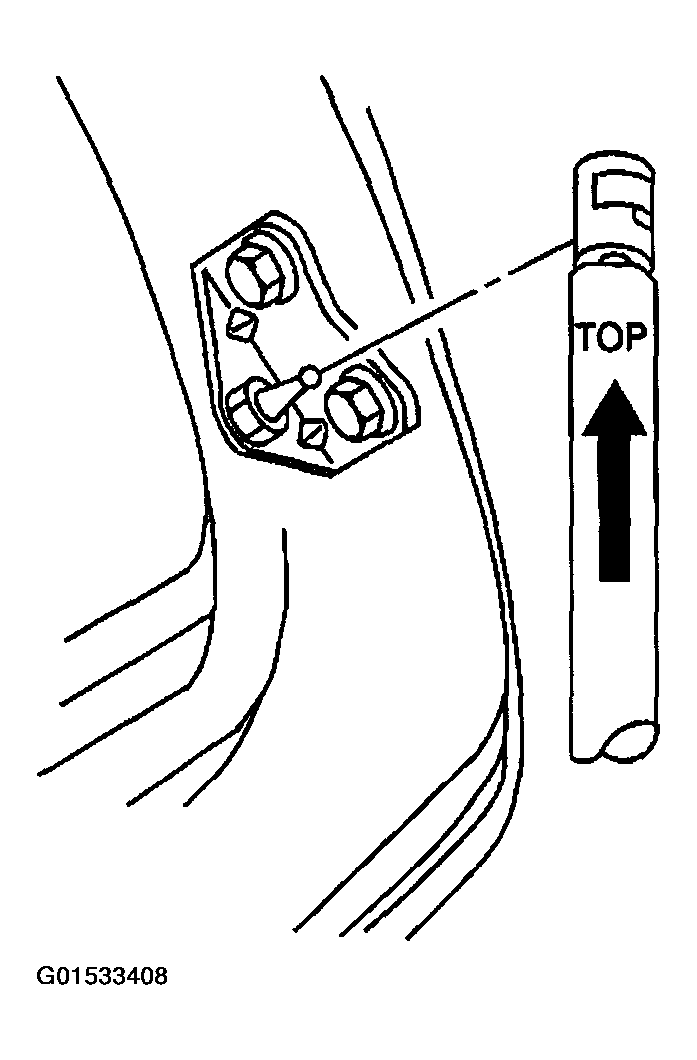

Fig 1: Installing Top Of Strut To Ball Stud
Courtesy of GENERAL MOTORS CORP.
Align the bottom of the strut to the ball stud on the body.
Press on the bottom of the strut to install onto the ball stud.
Install the tail lamps. Refer to TAIL LAMP ASSEMBLY AND / OR BACKUP, SIDEMARKER, STOP, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
Remove the support, and close the liftgate.

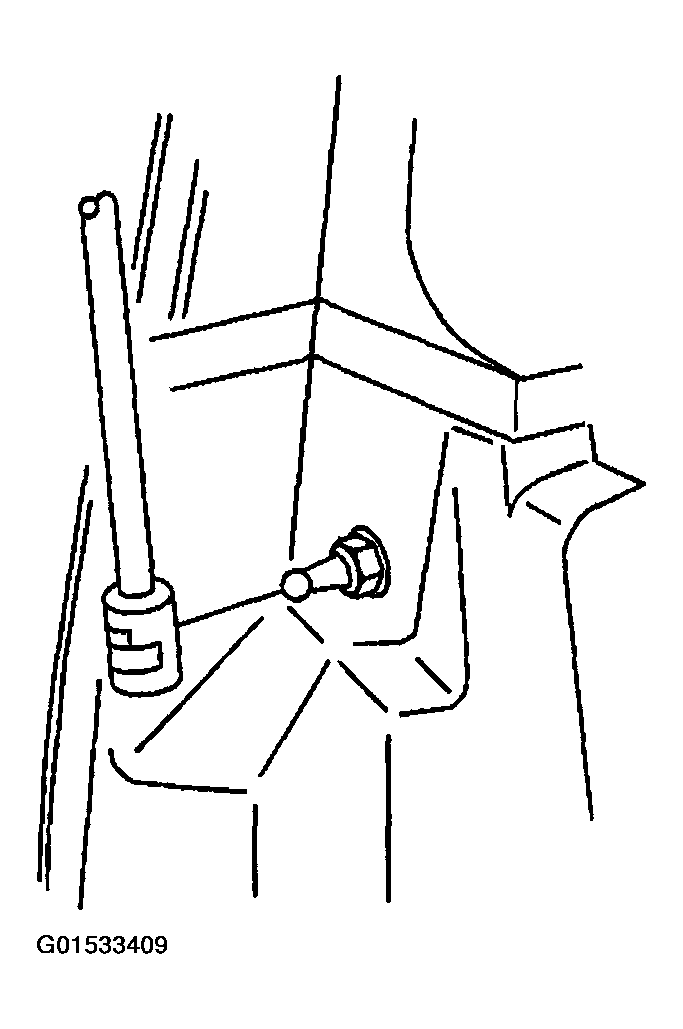

Fig 2: Installing Bottom Of Strut To Ball Stud On Body
Courtesy of GENERAL MOTORS CORP.
