Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the screws (2) from the pull strap (1).
  3. Remove the pull strap (1) from the liftgate.

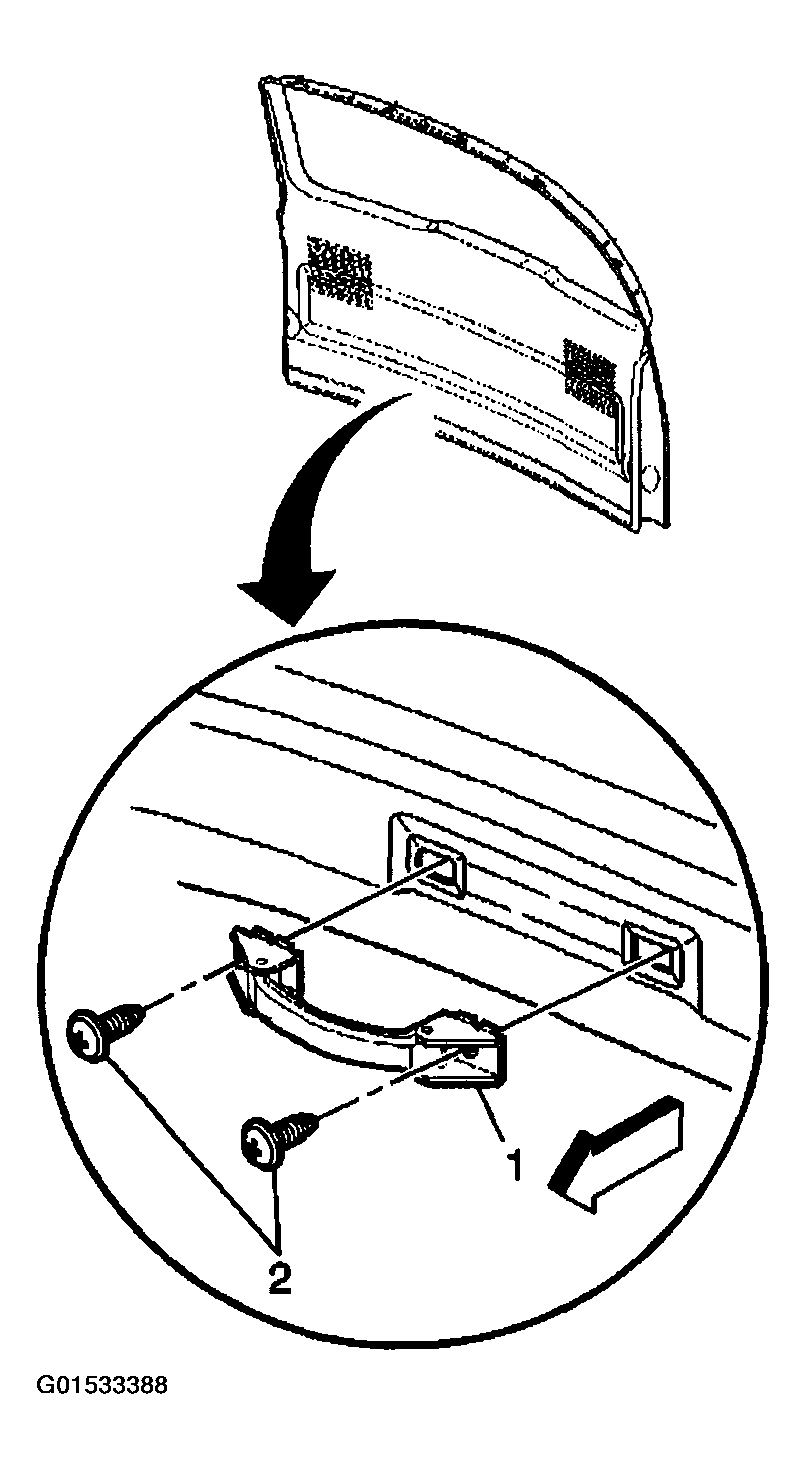

    Fig 1: Removing Pull Strap From Liftgate
    G01533388Courtesy of GENERAL MOTORS CORP.
