Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pull strap (1) to the lift gate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the pull strap screws (2).

    Tighten

    Tighten the pullstrap retaining screws to 2 N.m (18 lb in).

  3. Close the liftgate.

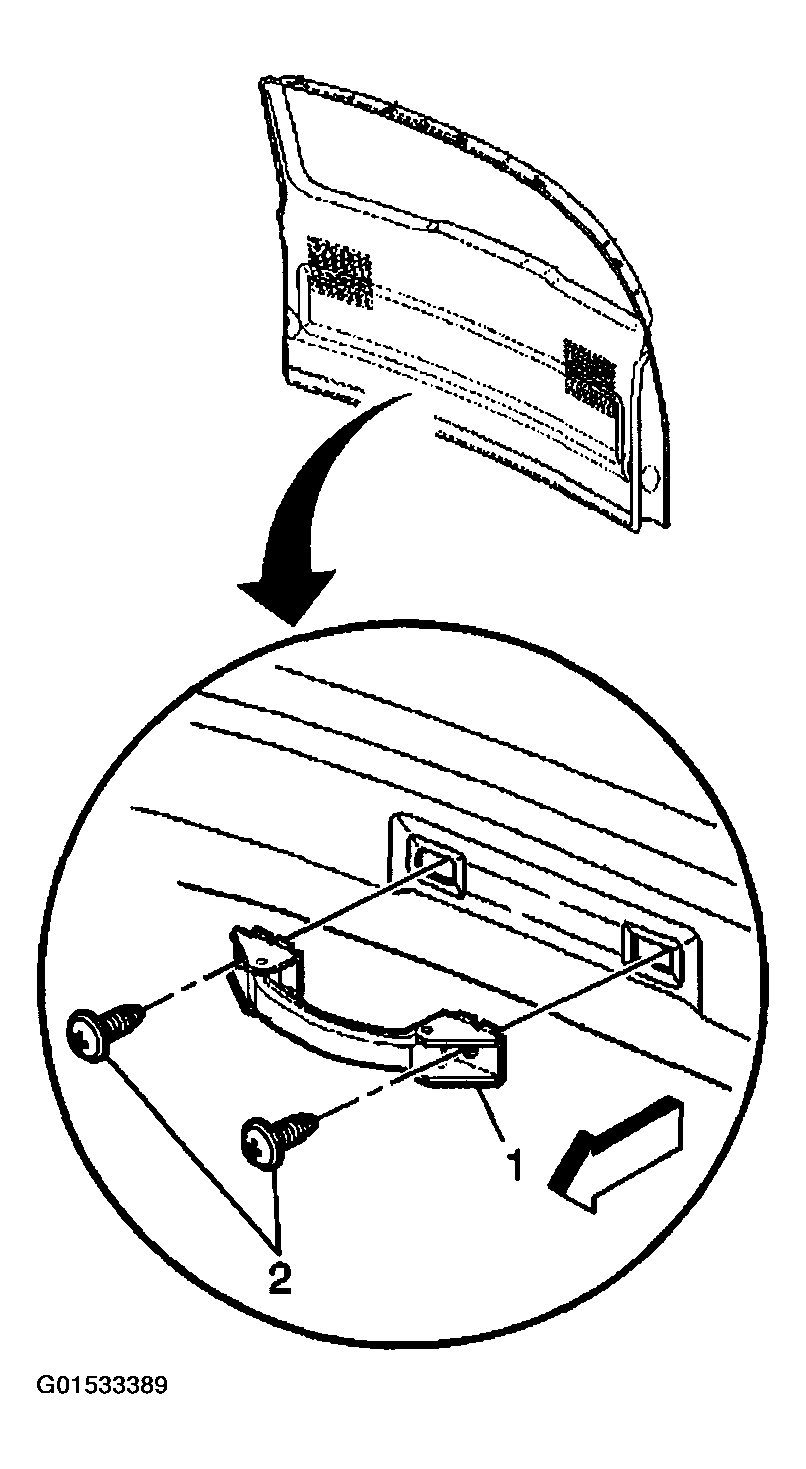

    Fig 1: Installing Pull Strap To Liftgate
    G01533389Courtesy of GENERAL MOTORS CORP.
