Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve to the body.
  2. Push in the pressure relief valve in order to secure the retainers into the body.
  3. Install the rear accessory panel. Refer to ACCESSORY PANEL REPLACEMENT - REAR  in Interior Trim.
  4. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)  in Bumpers.

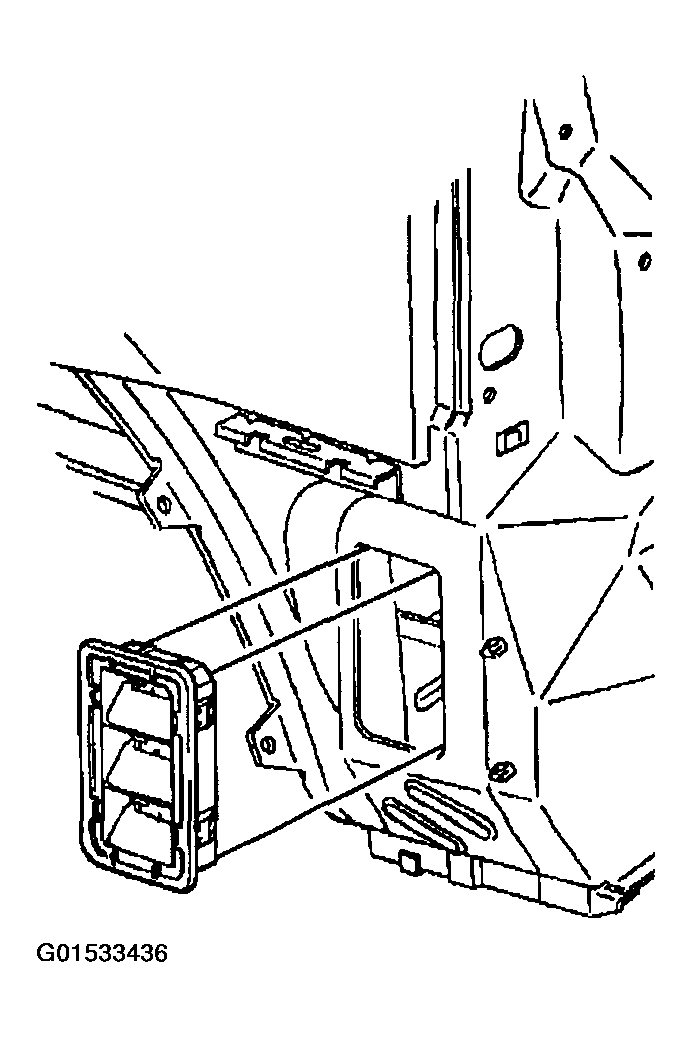

    Fig 1: Installing Pressure Relief Valve To Body
    G01533436Courtesy of GENERAL MOTORS CORP.
