Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE   .
  3. Remove the liftgate handle molding. Refer to HANDLE REPLACEMENT - LIFT GATE   .
  4. Remove the nuts from the lock cylinder.

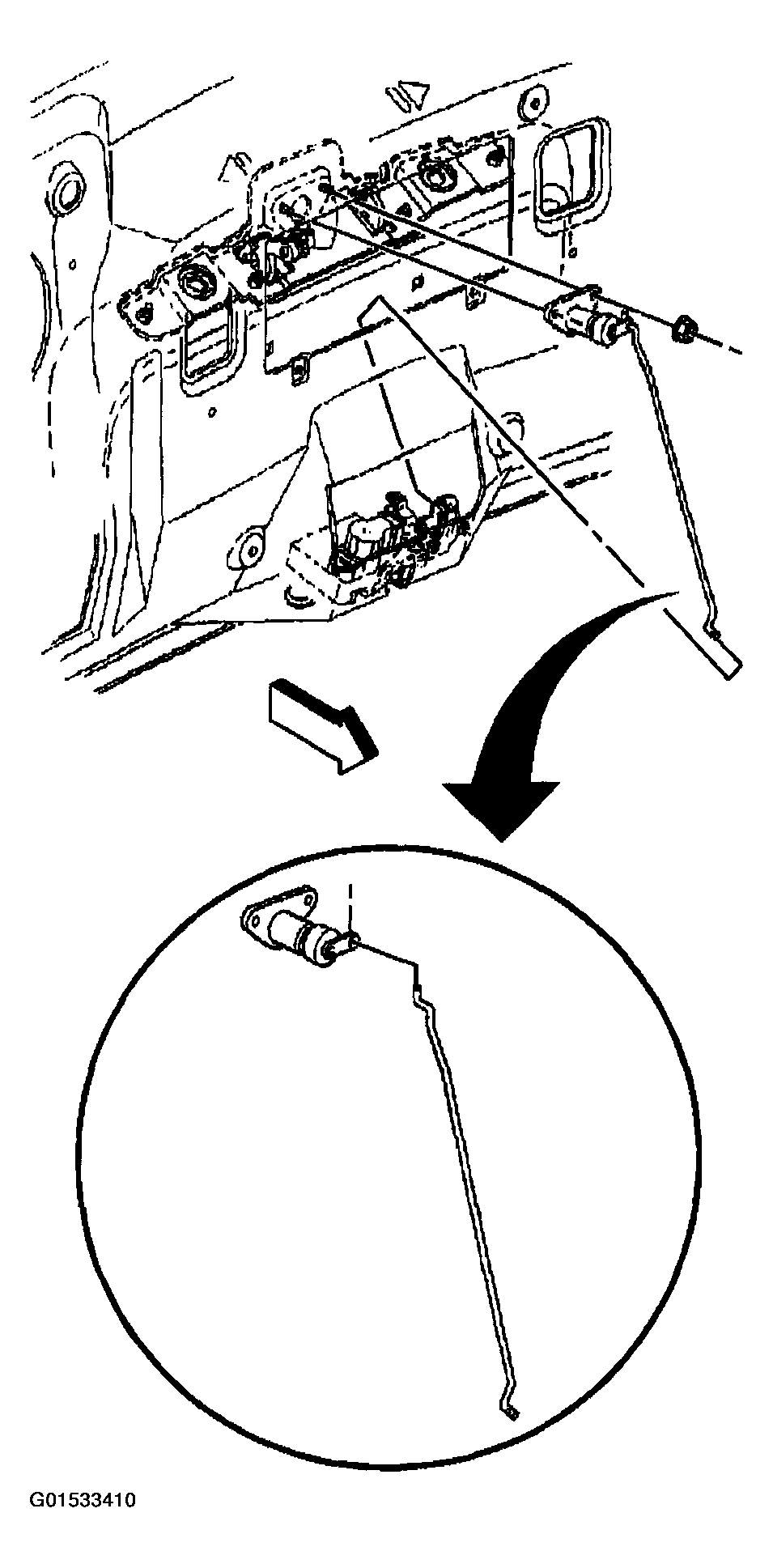

    Fig 1: Removing Lock Cylinder Nut
    G01533410Courtesy of GENERAL MOTORS CORP.
  5. Disconnect electrical connector, if equipped.
  6. Disconnect the lock rod from the cylinder.
  7. Remove the lock cylinder from the liftgate.

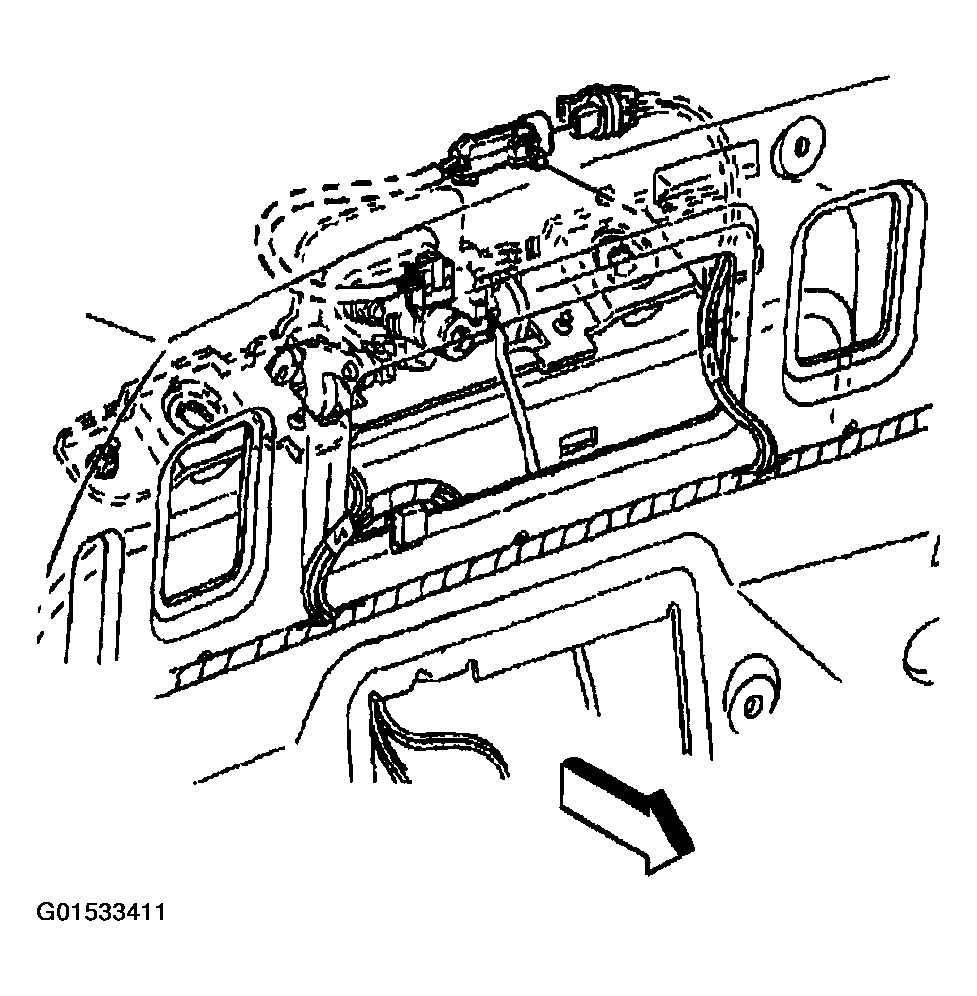

    Fig 2: Disconnecting Electrical Connector
    G01533411Courtesy of GENERAL MOTORS CORP.
