Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper arm. Refer to WIPER ARM REPLACEMENT - REAR  in Wipers/Washer Systems.
  2. Remove the rear washer nozzle. Refer to WASHER NOZZLE REPLACEMENT - REAR  in Wipers/Washer Systems.
  3. Open and support the liftgate.
  4. Remove the liftgate pull strap. Refer to PULLSTRAP REPLACEMENT - LIFT GATE   .
  5. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE   .
  6. Remove the liftgate wiring harness. Refer to WIRING HARNESS REPLACEMENT - LIFT GATE   .

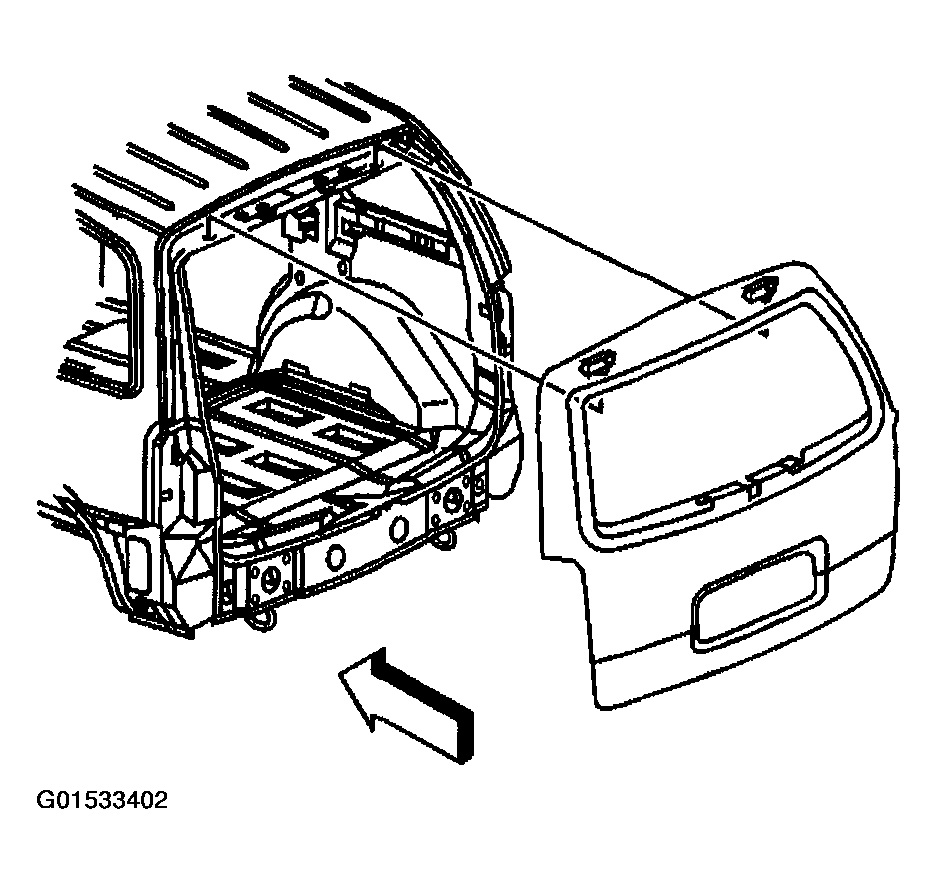

    Fig 1: Removing Lift Gate From Vehicle
    G01533402Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear speakers from the liftgate. Refer to SPEAKER REPLACEMENT - REAR  in Entertainment.
  8. Remove the wiper motor. Refer to WIPER MOTOR REPLACEMENT - REAR  in Wipers/Washer Systems.
  9. Place protective coverings over adjacent body panels.
  10. With a grease pencil mark the location of the liftgate hinge to the liftgate.
  11. Remove the struts from the liftgate. Refer to STRUT REPLACEMENT - LIFT GATE   .
  12. With an assistant, remove the bolts from the liftgate hinge.
  13. With an assistant, remove the liftgate from the vehicle.
