Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align spacer and liftgate striker to holes in body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the liftgate striker retaining bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Close the liftgate.

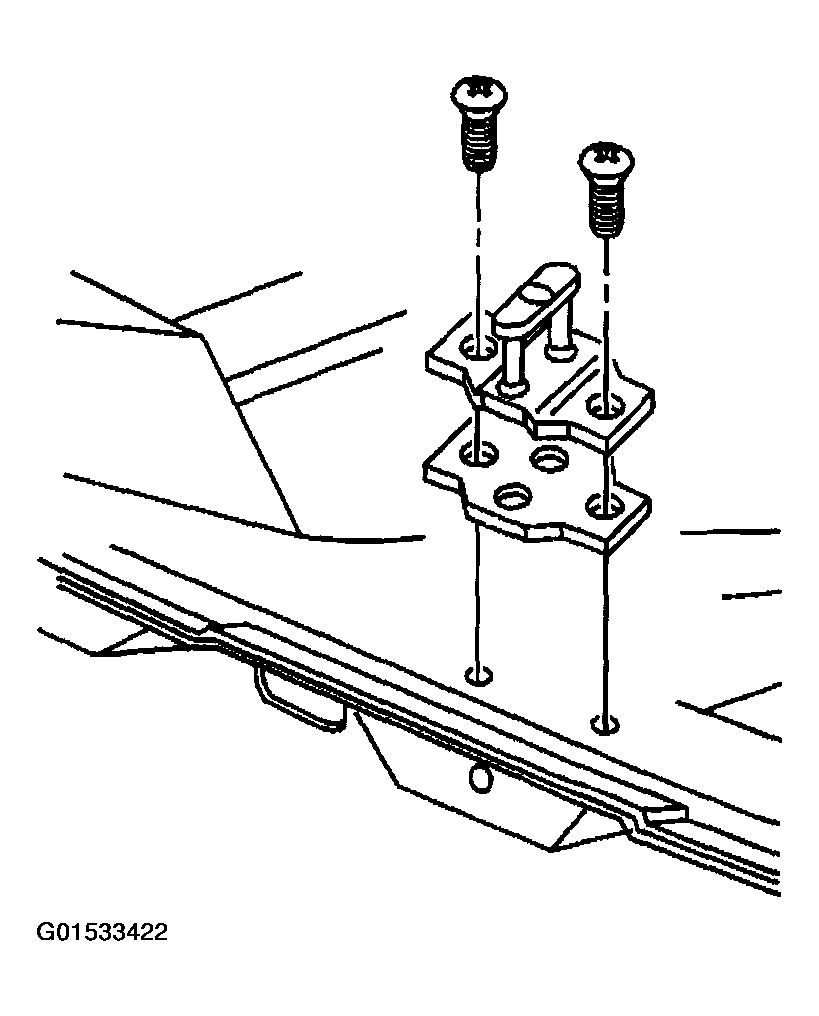

    Fig 1: Installing Liftgate Latch Striker To Vehicle
    G01533422Courtesy of GENERAL MOTORS CORP.
