Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE   .
  3. Remove the liftgate latch retaining bolts.
  4. Disconnect the electrical connector from the liftgate latch.
  5. Using a small flat-bladed tool remove the lock cylinder rod from the liftgate latch.
  6. Release the latch cable retainer and remove latch cable from liftgate latch.
  7. Remove the liftgate latch from the liftgate.

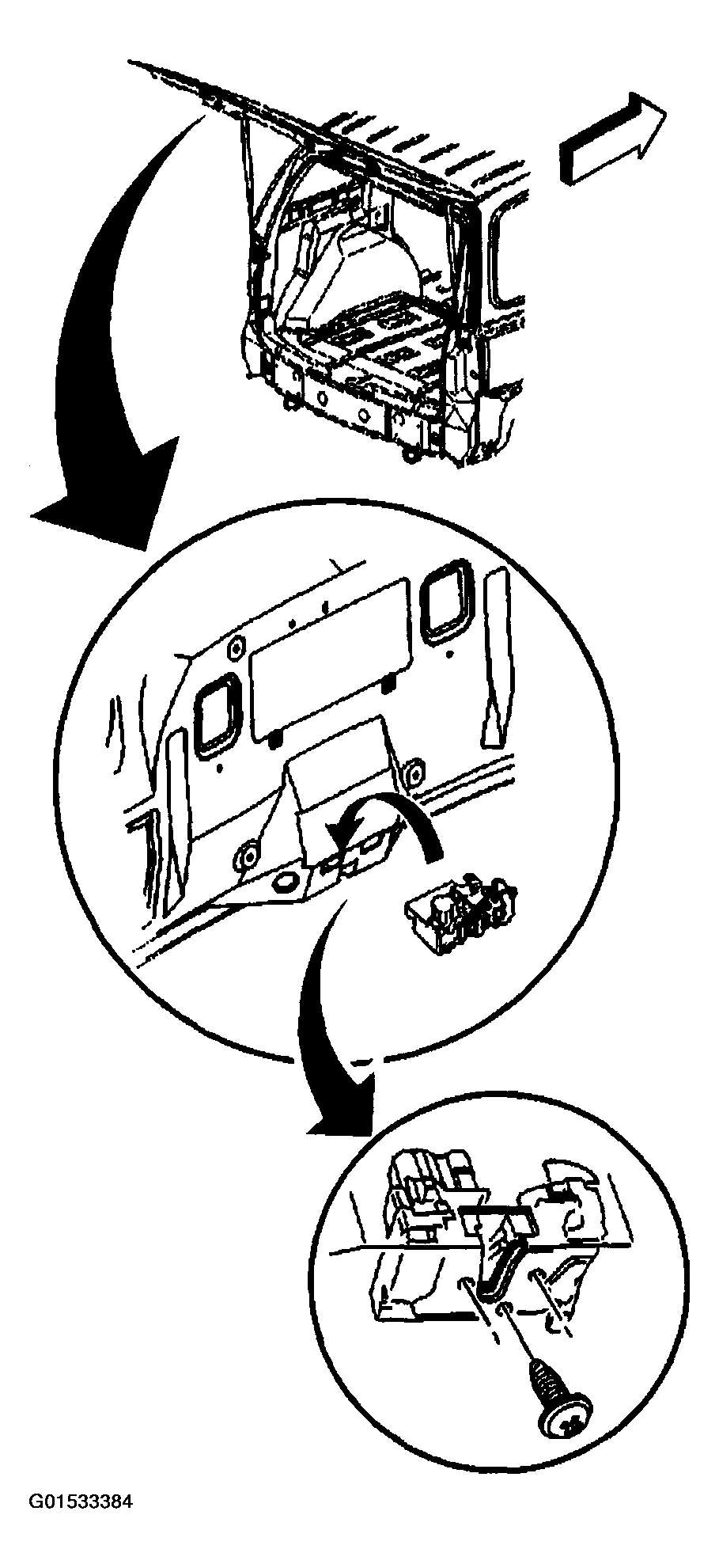

    Fig 1: Removing Liftgate Latch From Liftgate
    G01533384Courtesy of GENERAL MOTORS CORP.
