Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel filler door.
  2. Remove the fuel cap.
  3. Using J 38778  remove the push in retainer securing the fuel filler pocket to the left rear inner fender liner.
  4. Remove the screws from the fuel filler pocket.
  5. Remove the fuel filler pocket from the vehicle.
  6. Depress tabs on the fuel cap tether and remove from the fuel filler pocket.

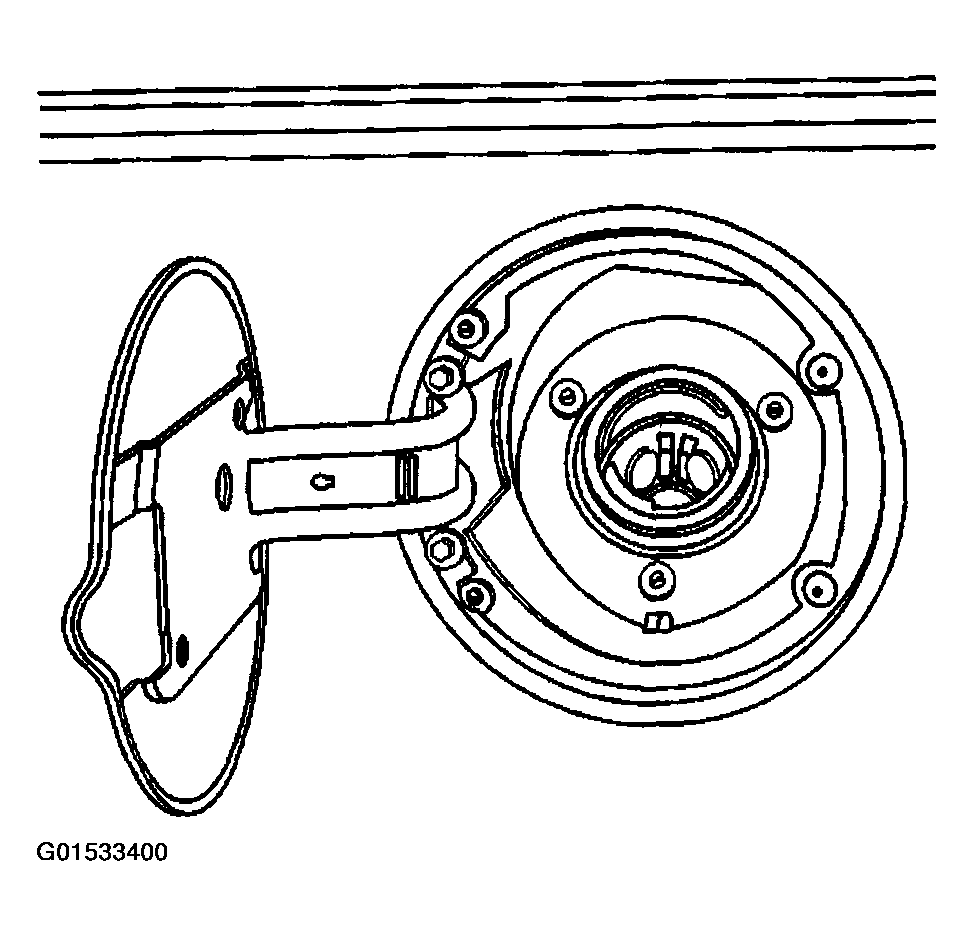

    Fig 1: Removing Fuel Filler Pocket
    G01533400Courtesy of GENERAL MOTORS CORP.
