Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding door.
  2. Remove the bolts from the fuel filler interlock bracket.

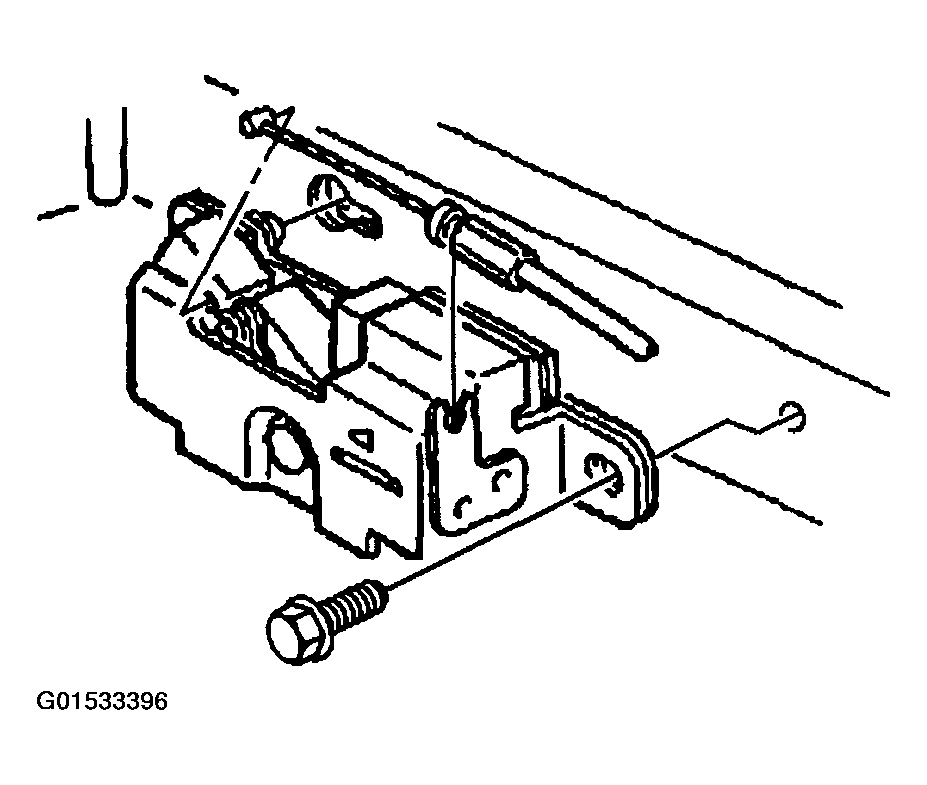

    Fig 1: Removing Fuel Filler Door Interlock Bracket Bolt
    G01533396Courtesy of GENERAL MOTORS CORP.
  3. Slide the fuel filler interlock bracket toward the front of the vehicle.
  4. Remove the fuel filler interlock from the body.
  5. Disconnect the fuel filler interlock cable from the fuel filler interlock bracket.

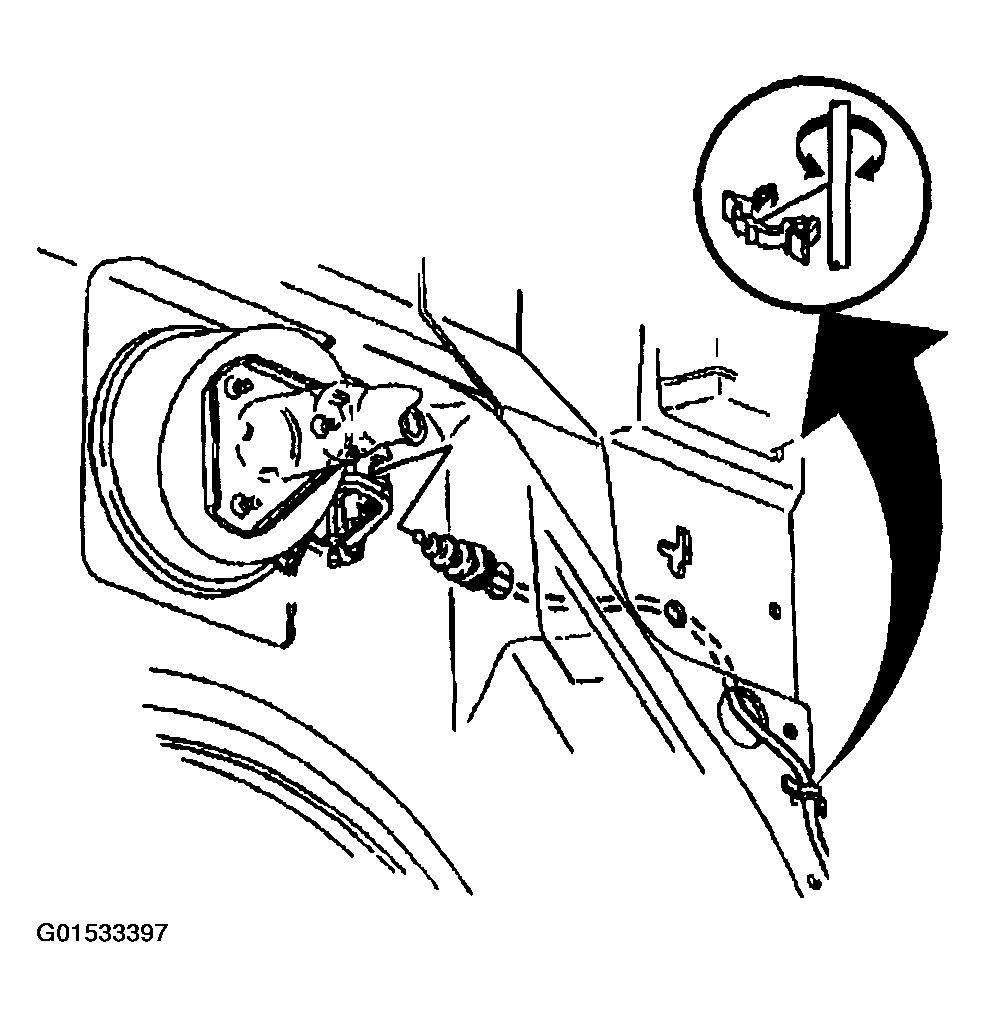

    Fig 2: Disconnecting Fuel Filler Interlock Cable From Fuel Filler Interlock Bracket
    G01533397Courtesy of GENERAL MOTORS CORP.
