Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the bearing to the rear quarter window actuator by installing the pin.
  2. Install the bearing bushing retaining screw.

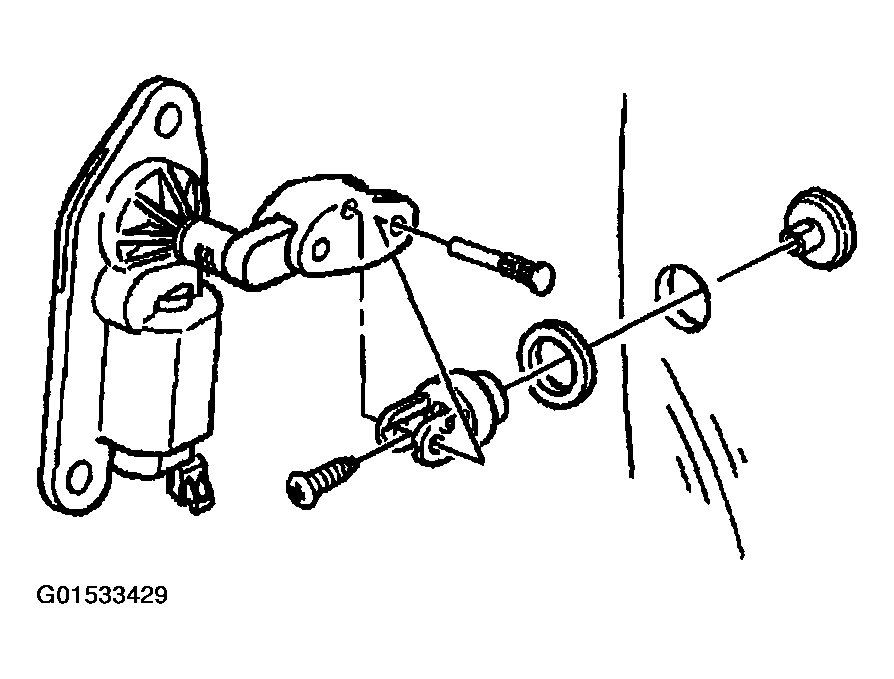

    Fig 1: Installing Bearing Bushing Screw
    G01533429Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the rear quarter window actuator retaining bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

    Tighten the bearing bushing retaining screw to 2 N.m (18 lb in).

  4. Connect the electrical connector to the rear quarter window actuator.
  5. Install the rear corner upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER UPPER  in Interior Trim.

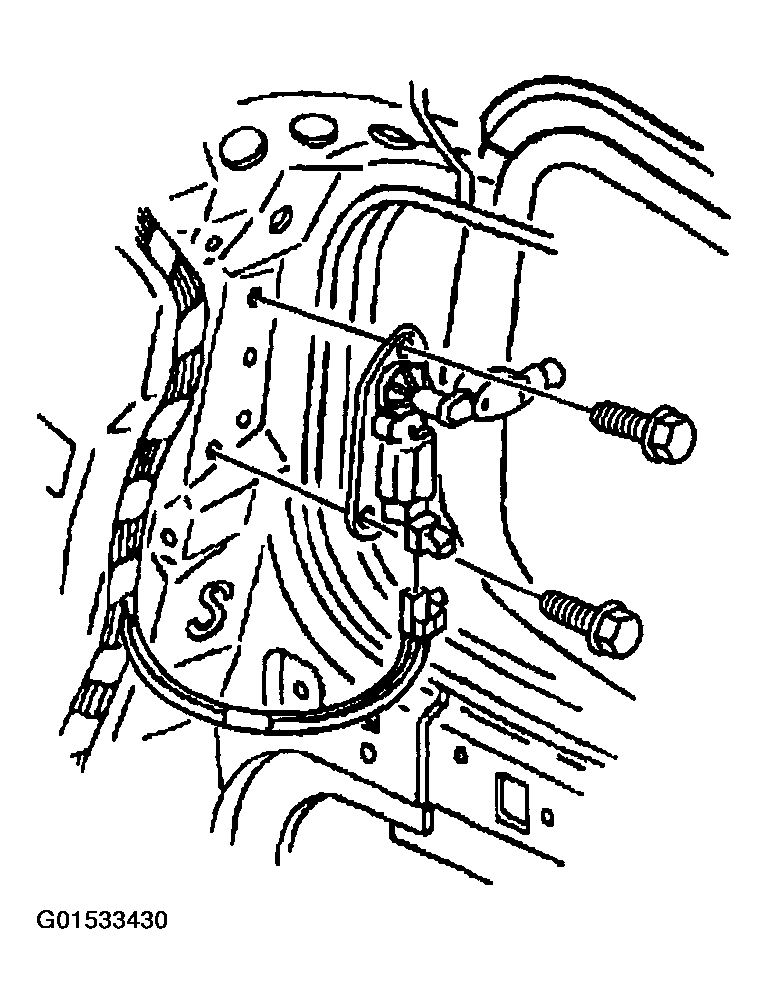

    Fig 2: Installing Rear Quarter Window Actuator Bolts
    G01533430Courtesy of GENERAL MOTORS CORP.
