Symptom List

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

REAR QUARTER WINDOW(S) INOPERATIVE - See Fig 1
REAR HATCH/GATE AJAR INDICATOR ALWAYS ON - See Fig 3
REAR HATCH/GATE AJAR INDICATOR INOPERATIVE - See Fig 4

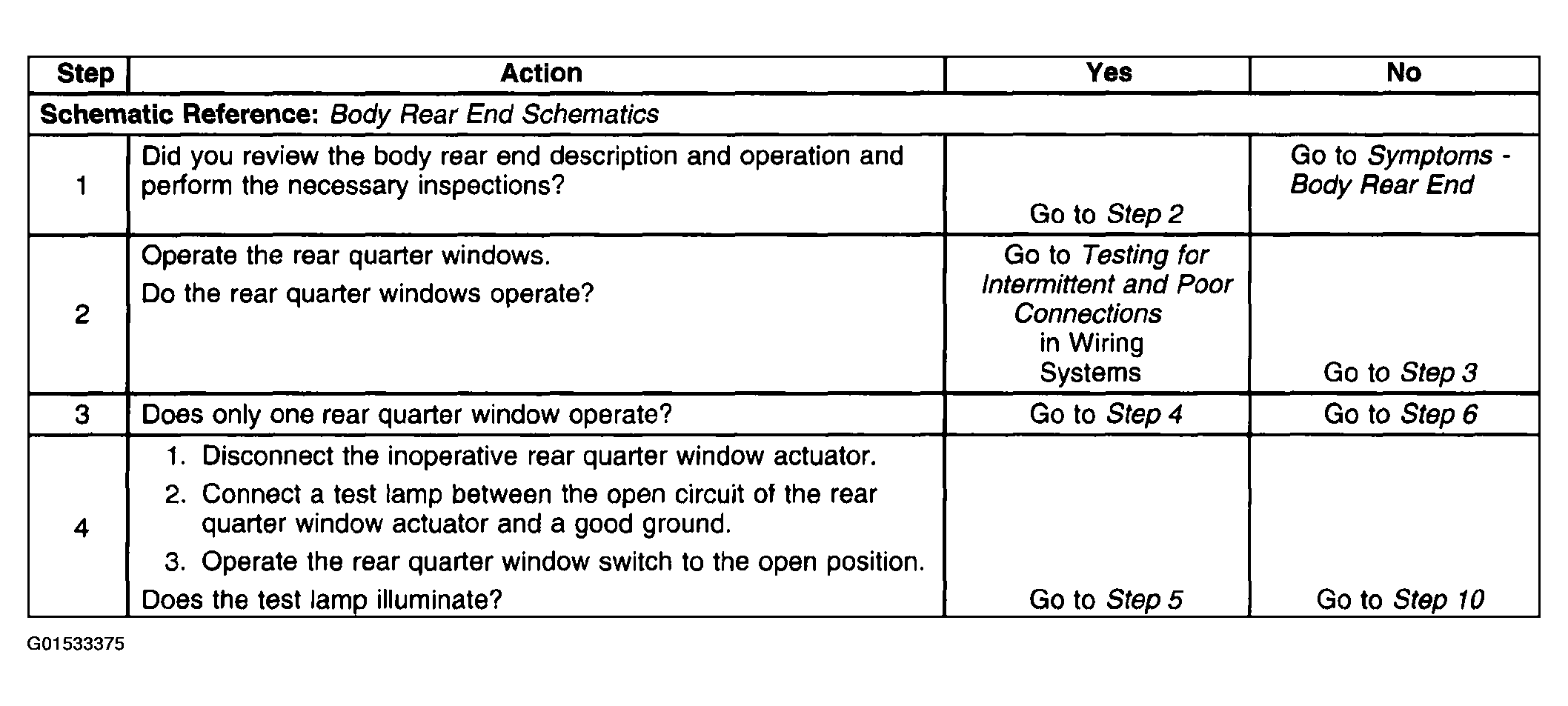

Fig 1: Diagnostic System Check Chart - Rear Quarter Window(s) Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

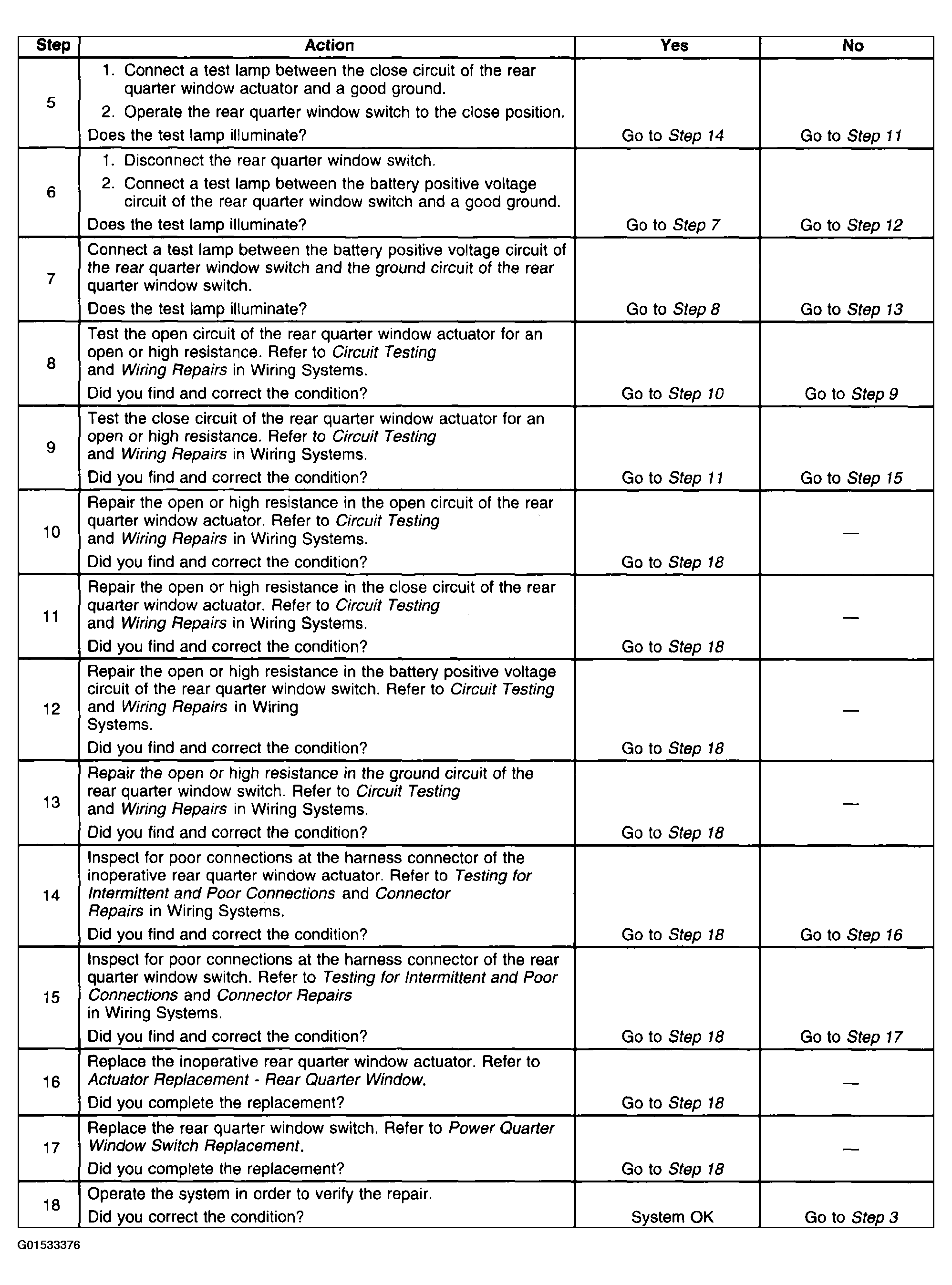

Fig 2: Diagnostic System Check Chart - Rear Quarter Window(s) Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Diagnostic System Check Chart - Rear Hatch/Gate Ajar Indicator Always On

Courtesy of GENERAL MOTORS CORP.

Fig 4: Diagnostic System Check Chart - Rear Hatch/Gate Ajar Indicator Inoperative

Courtesy of GENERAL MOTORS CORP.
