WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

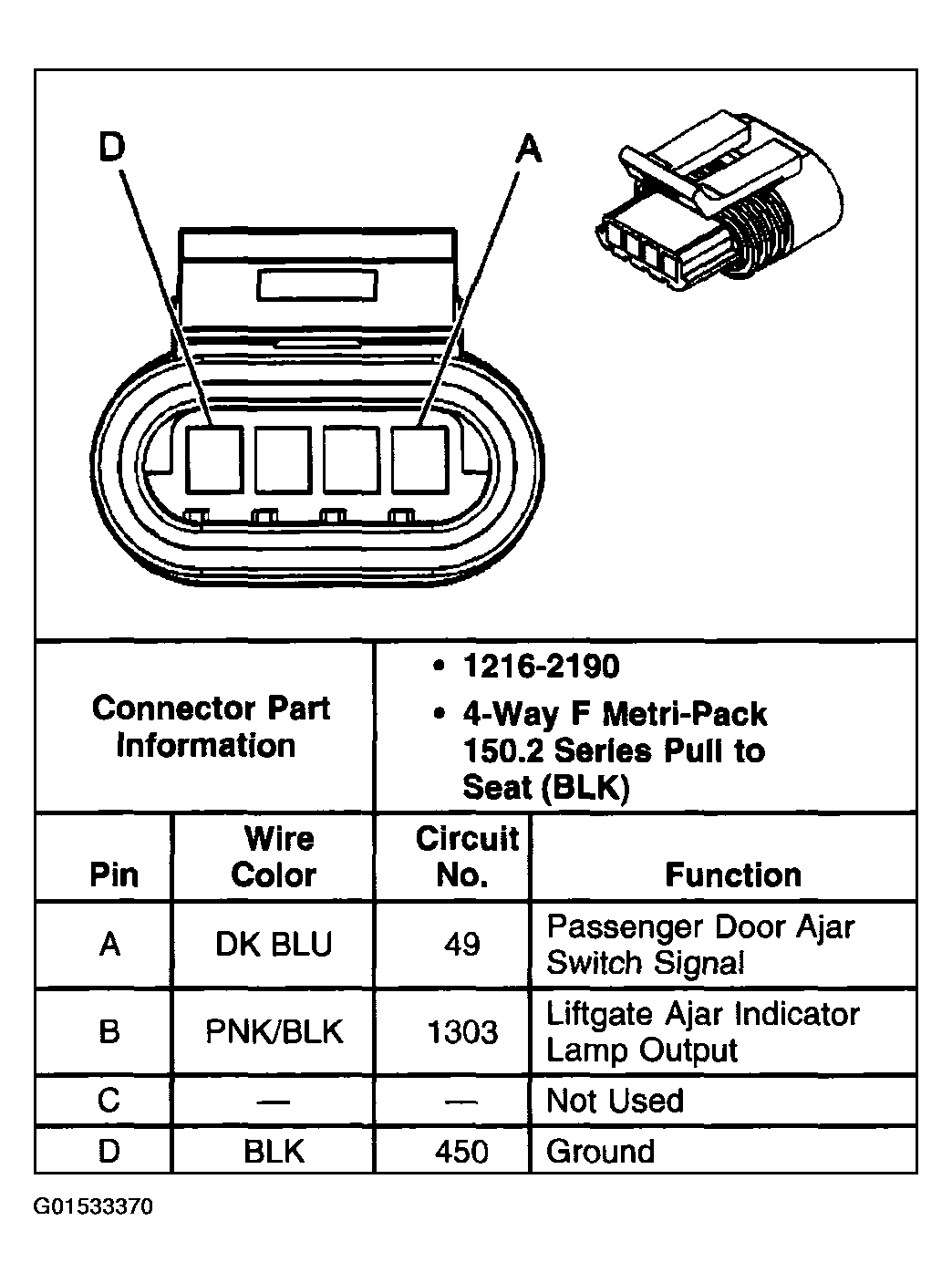

Fig 1: Liftgate Door Lock Connector C1 - Ajar Indicator Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Liftgate Door Lock Connector C2 - Actuator Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Liftgate Door Lock Cylinder Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

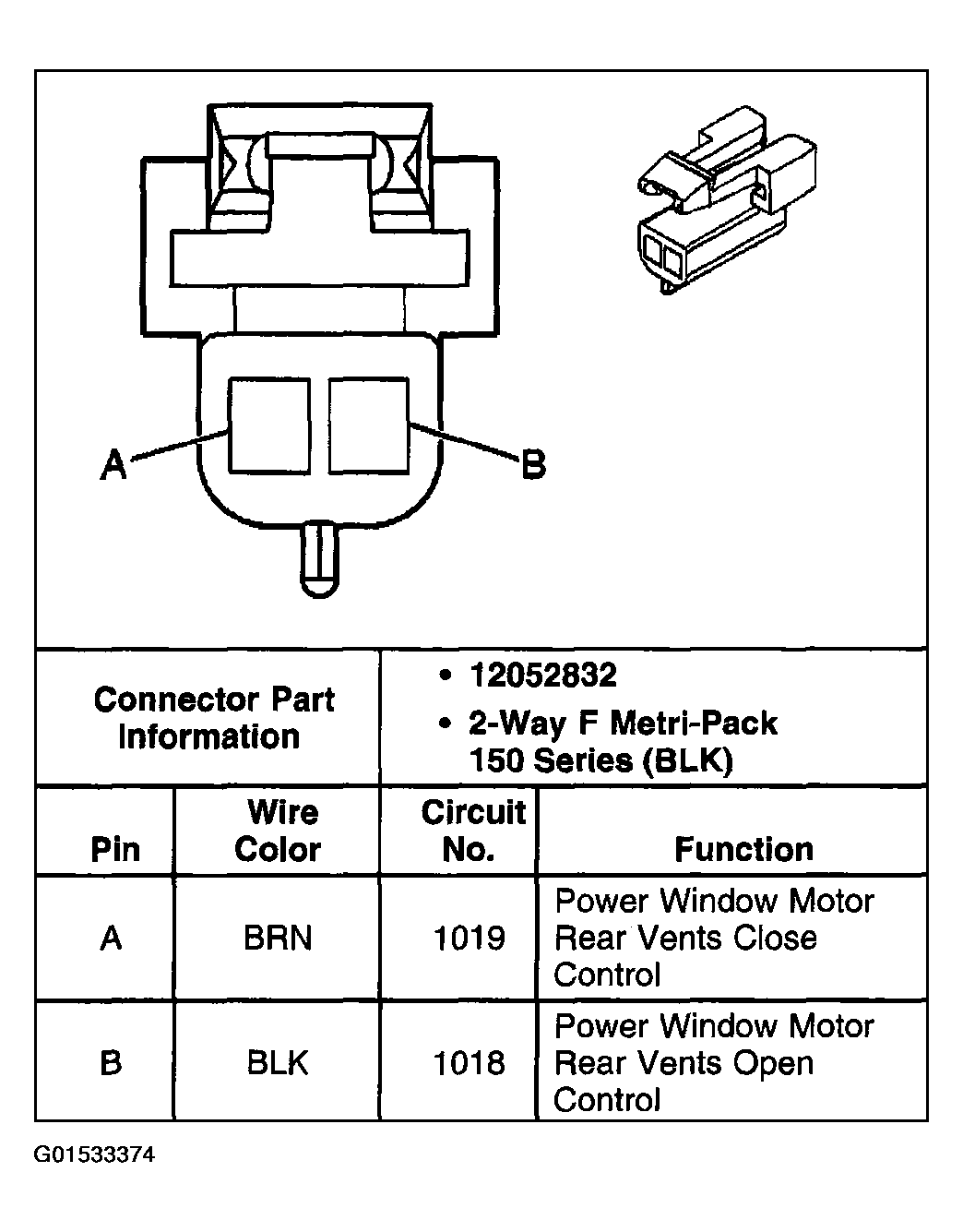

Fig 4: Rear Quarter Window Actuator - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Rear Quarter Window Actuator - Right Connector End View
