Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seats. Refer to SEAT REPLACEMENT - REAR  in Seats.
  2. Remove the back body side upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER UPPER   .
  3. Remove the body side upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR UPPER   .
  4. Remove the cup holder from the rear quarter trim.
  5. Remove the rear accessory panel, for the left side quarter panel. Refer to ACCESSORY PANEL REPLACEMENT - REAR   .
  6. Remove the seat belt retractor retainer bolt. Refer to SEAT BELT SYSTEM  or SEAT BELT SYSTEM  in Seat Belts.
  7. Remove the upper cargo net retainers.
  8. Remove the liftgate sill plate. Refer to INTERIOR TRIM
  9. Remove the rear quarter trim panel retainers using J 38778.
  10. Remove the rear quarter trim panel from the vehicle.

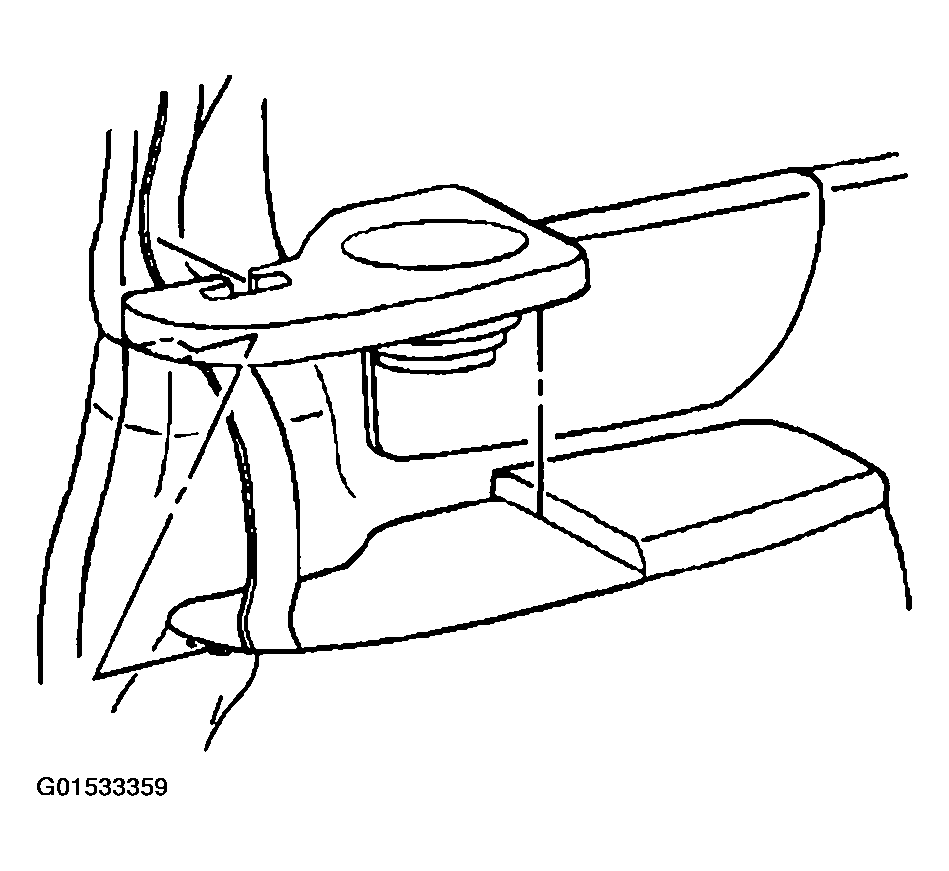

    Fig 1: Removing Rear Quarter Trim Panel From Vehicle
    G01533359Courtesy of GENERAL MOTORS CORP.
