Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the quarter trim panel to vehicle.
  2. Install the rear quarter trim retainers by alining the retainer with the holes and then pushing the retainers to secure.
  3. Install the upper cargo net retainers.
  4. Install the liftgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE   .
  5. Install the seat belt retractor retaining bolt. Refer to SEAT BELT SYSTEM  or SEAT BELT SYSTEM  in Seat Belts.
  6. Install the rear accessory panel, for the left side quarter panel. Refer to ACCESSORY PANEL REPLACEMENT - REAR   .
  7. Install the cup holder to the rear quarter trim.
  8. Install the body side upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR UPPER   .
  9. Install the back body pillar trim. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER UPPER   .
  10. Install the seats. Refer to SEAT REPLACEMENT - REAR  in Seats.

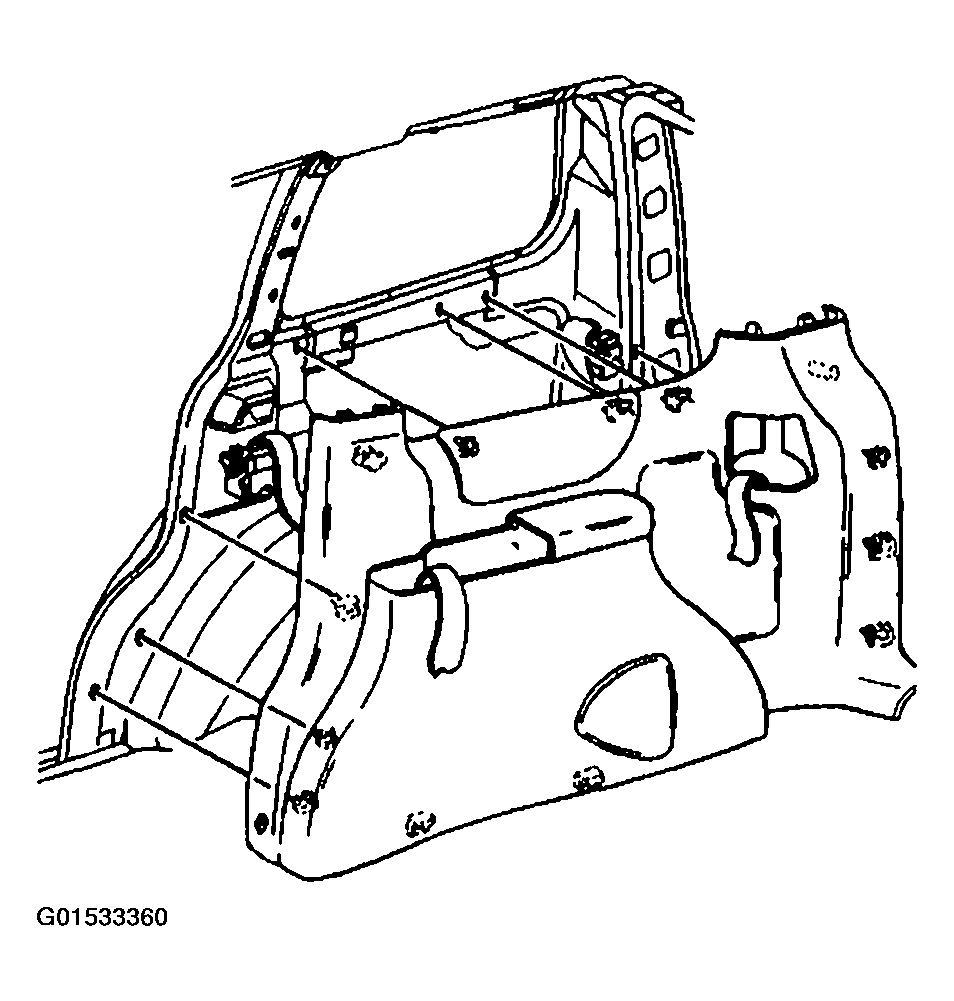

    Fig 1: Installing Rear Quarter Trim Panel To Vehicle
    G01533360Courtesy of GENERAL MOTORS CORP.
