Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seats. Refer to SEAT REPLACEMENT - REAR  in Seats.
  2. Remove the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER   .
  3. Remove the body pillar upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR   .
  4. Remove the front door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  5. Remove the rear audio controls. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT (PONTIAC)  or AUDIO CONTROL REPLACEMENT - REAR SEAT (OLDSMOBILE)  in Entertainment.
  6. Remove the body side front trim panel retainers using the J 38778.
  7. Remove the body side front trim panel from the vehicle.

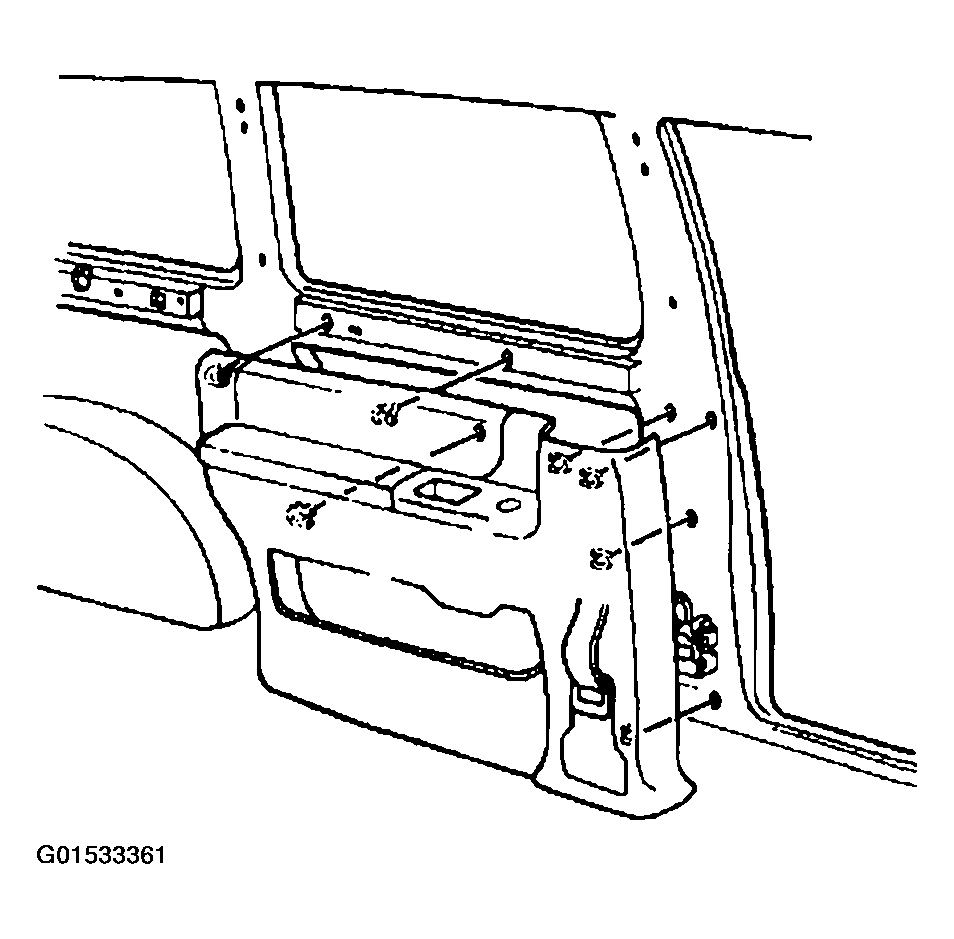

    Fig 1: Removing Body Side Front Trim Panel
    G01533361Courtesy of GENERAL MOTORS CORP.
