Removed Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  2. Remove the cowl side trim panel retainers using the J 8-1157.
  3. Remove the cowl side trim panel from the vehicle.

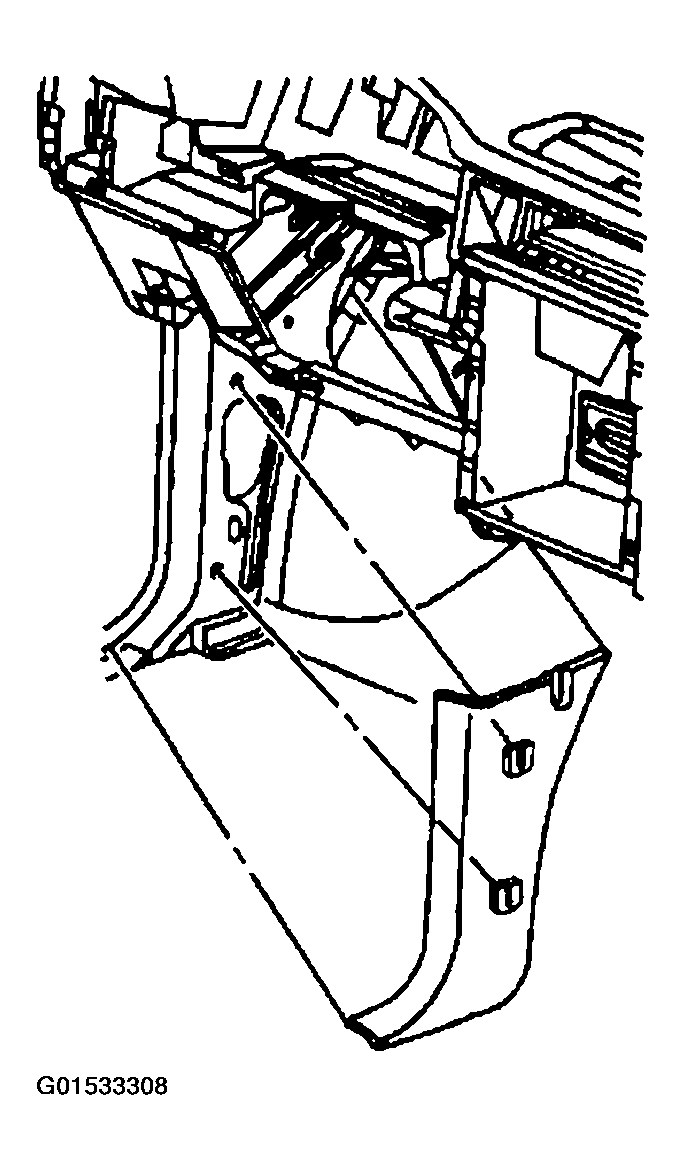

    Fig 1: Removing Cowl Side Trim Panel From Vehicle
    G01533308Courtesy of GENERAL MOTORS CORP.
