Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock the sunshade from the retainer.
  2. Remove the sunshade retainer screw.
  3. Pull the sunshade retainer from the headliner.

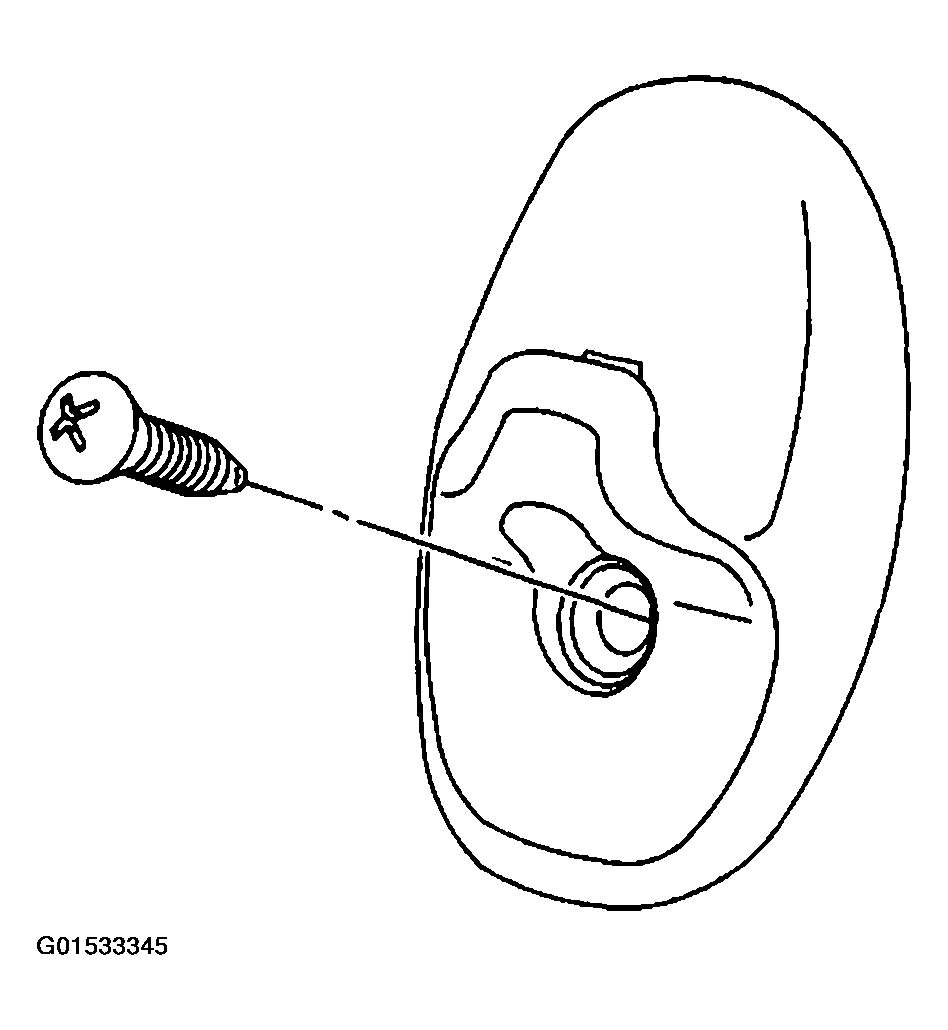

    Fig 1: Removing Sunshade Retainer From Headliner
    G01533345Courtesy of GENERAL MOTORS CORP.
