Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the sunshade retainer to the headliner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunshade retainer screw.

    Tighten

    Tighten the screw to 2 N.m (lb in).

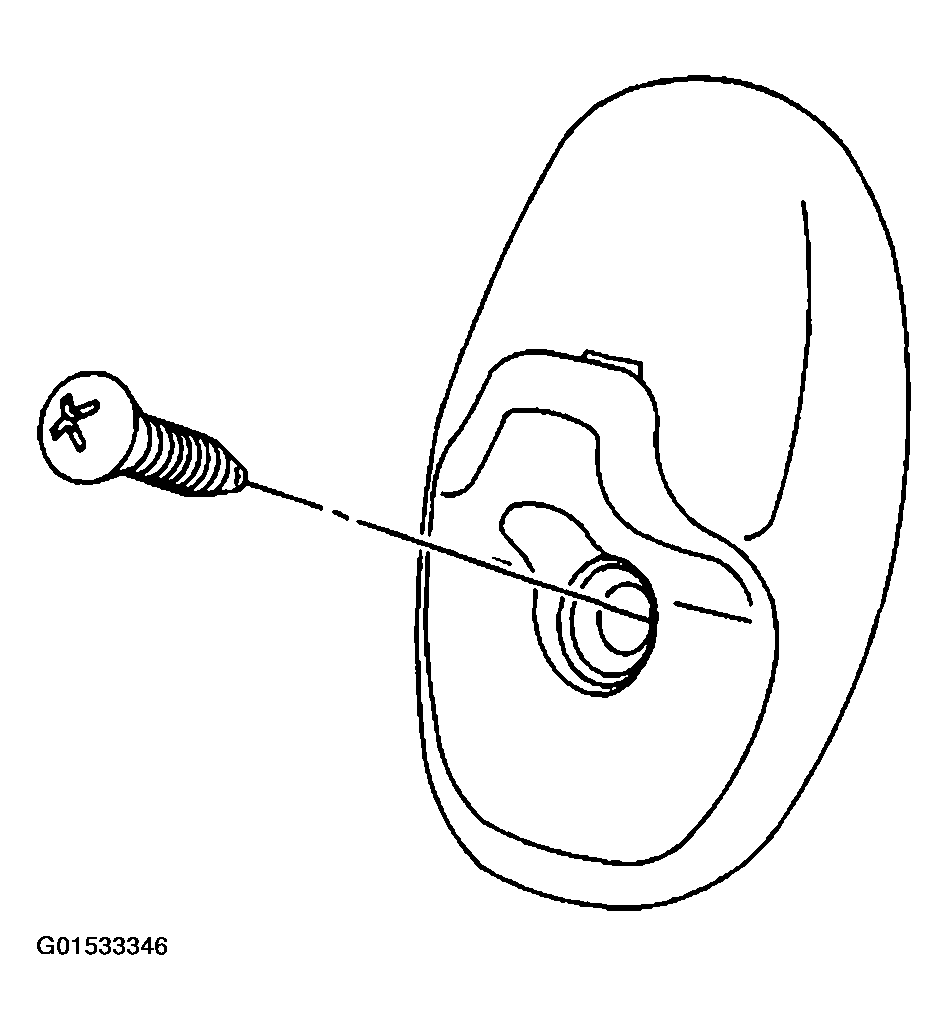

    Fig 1: Installing Sunshade Retainer To Headliner
    G01533346Courtesy of GENERAL MOTORS CORP.
