Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down on the rear headliner trim finish molding in order to disengage the retaining tabs and clips from the retainer.
  2. Remove the rear headliner trim finish molding from the retainer in the roof.

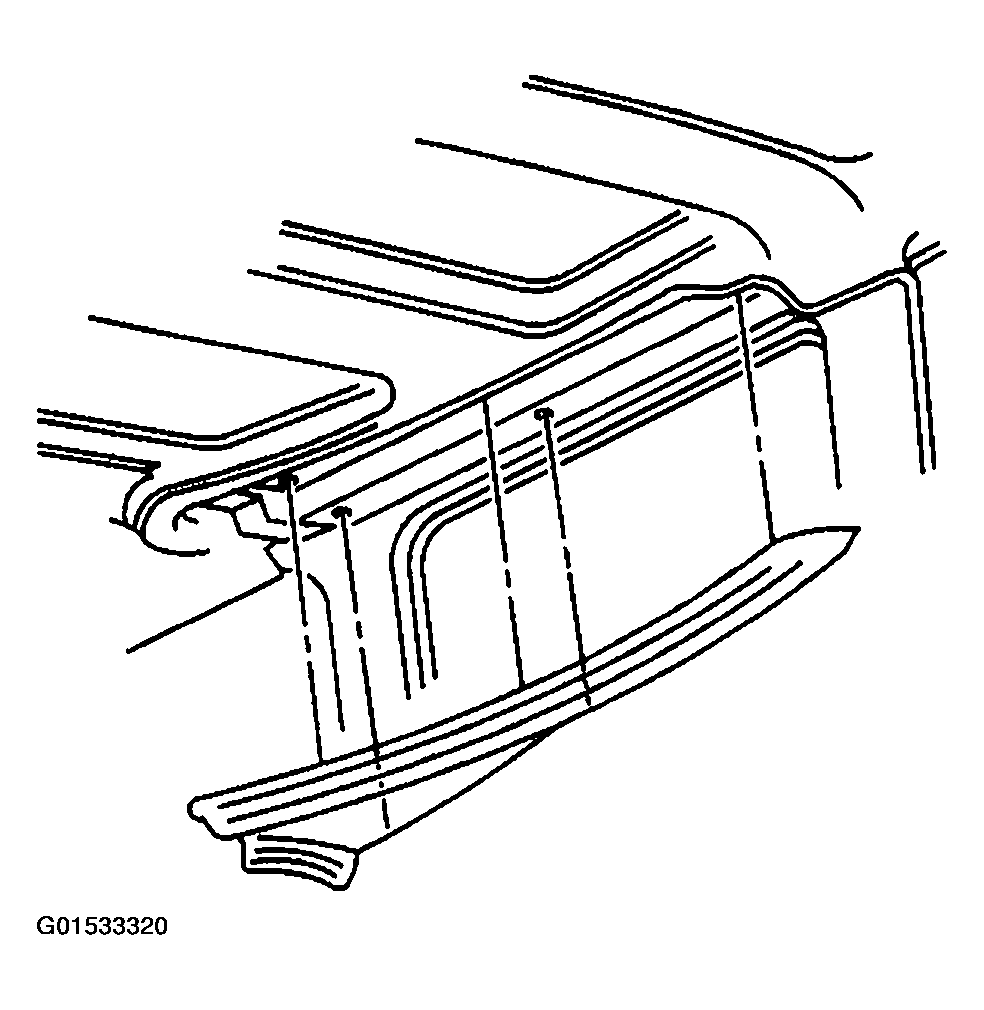

    Fig 1: Removing Rear Headliner Trim Finish Molding From Roof Retainer
    G01533320Courtesy of GENERAL MOTORS CORP.
