Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear headliner trim finish molding to the retainer in the roof.
  2. Press up on the rear headliner trim finish molding in order to engage the retaining tabs and clips.

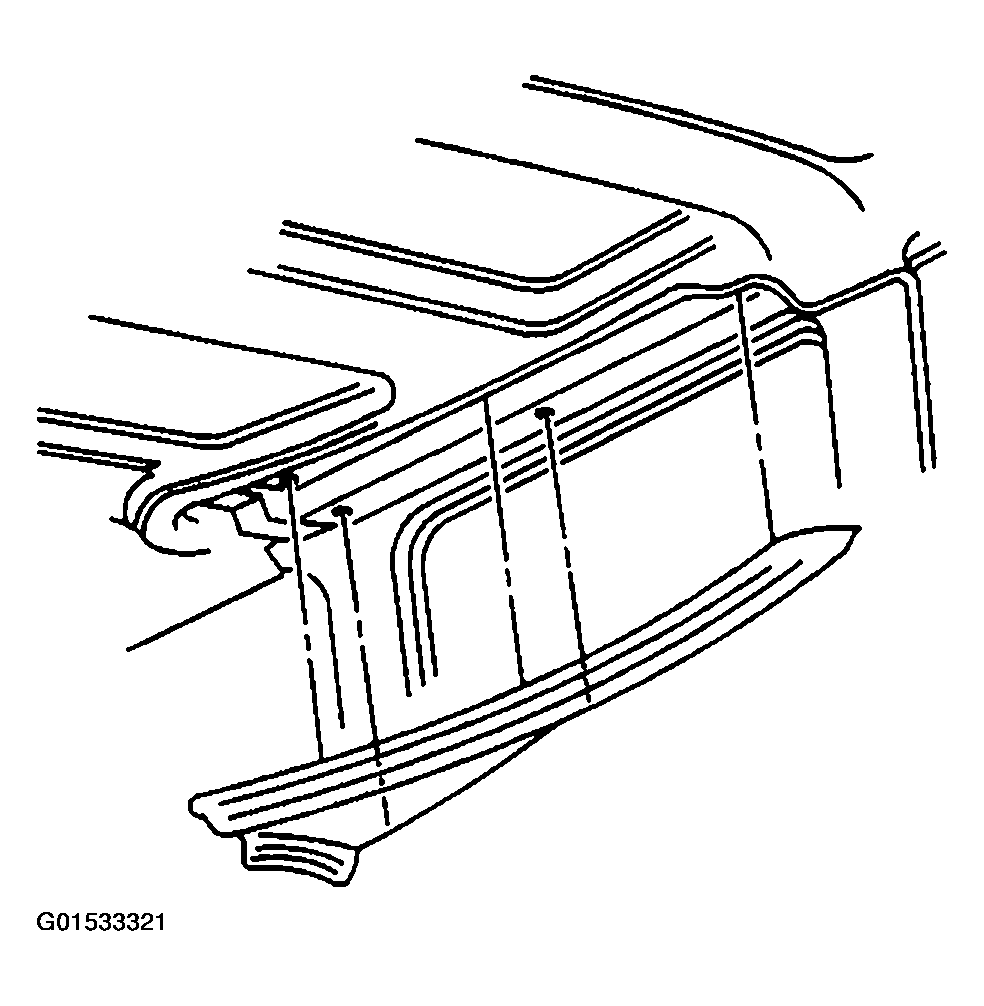

    Fig 1: Installing Rear Headliner Trim Finish Molding To Roof Retainer
    G01533321Courtesy of GENERAL MOTORS CORP.
