Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the windshield garnish molding from the A-pillar in order to disengage the retaining tabs and clips.
  2. Remove the windshield garnish molding from the A-pillar.

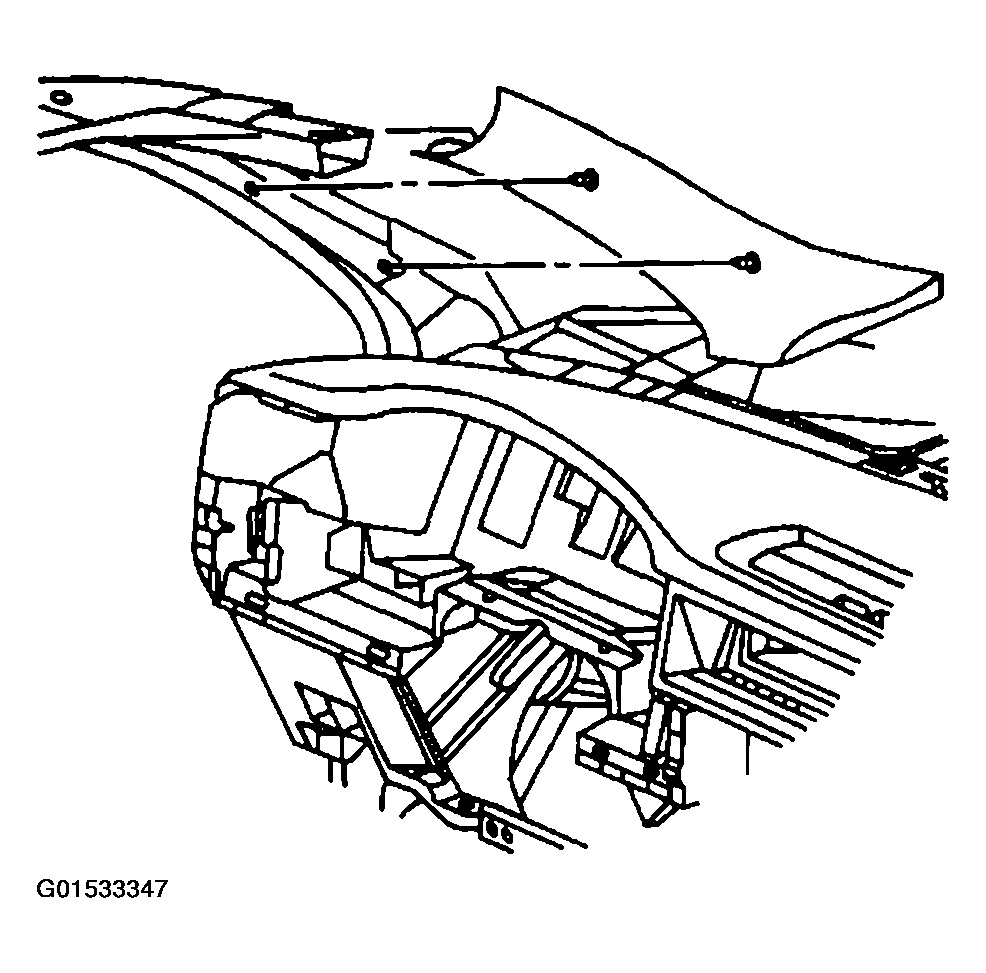

    Fig 1: Removing Windshield Garnish Molding From A-Pillar
    G01533347Courtesy of GENERAL MOTORS CORP.
