Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body pillar upper trim panel to the vehicle by aligning the locator tabs.
  2. Align the body pillar trim panel retainers to the holes and pushing in on the retainers to secure them.
  3. Install the seat belt shoulder belt guide loop. Refer to SEAT BELT SYSTEM  in Seat Belts.

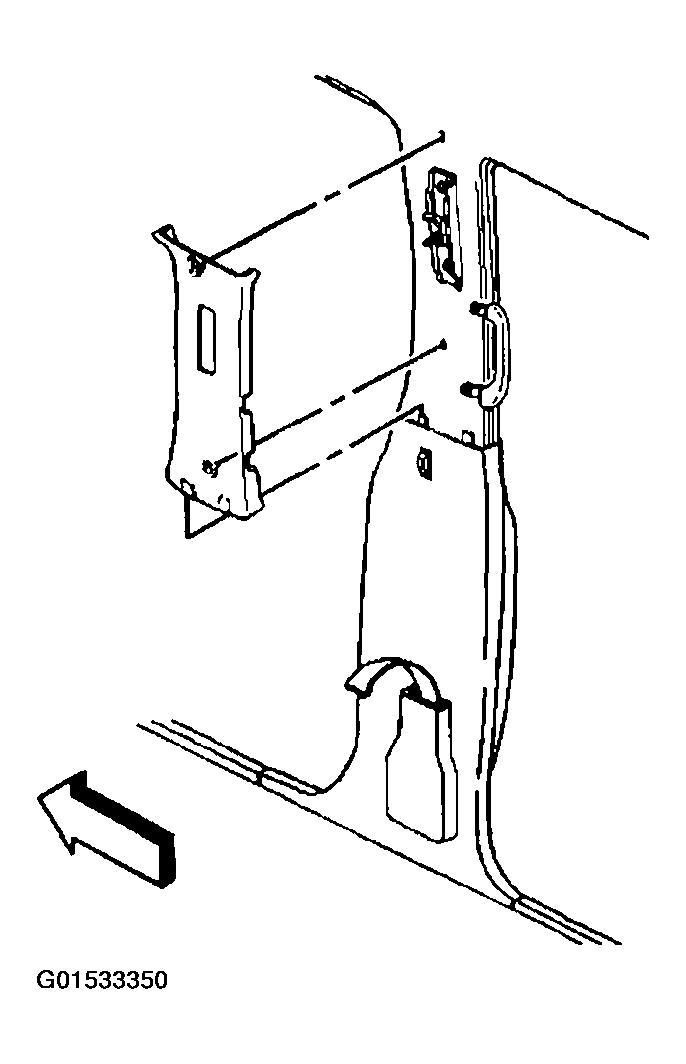

    Fig 1: Installing Body Pillar Upper Trim Panel To Vehicle
    G01533350Courtesy of GENERAL MOTORS CORP.
