Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully pull the sliding door garnish molding away from the sliding door in order to release the clips.
  2. Be sure not to damage the garnish molding.
  3. Remove the sliding door molding from the sliding door.

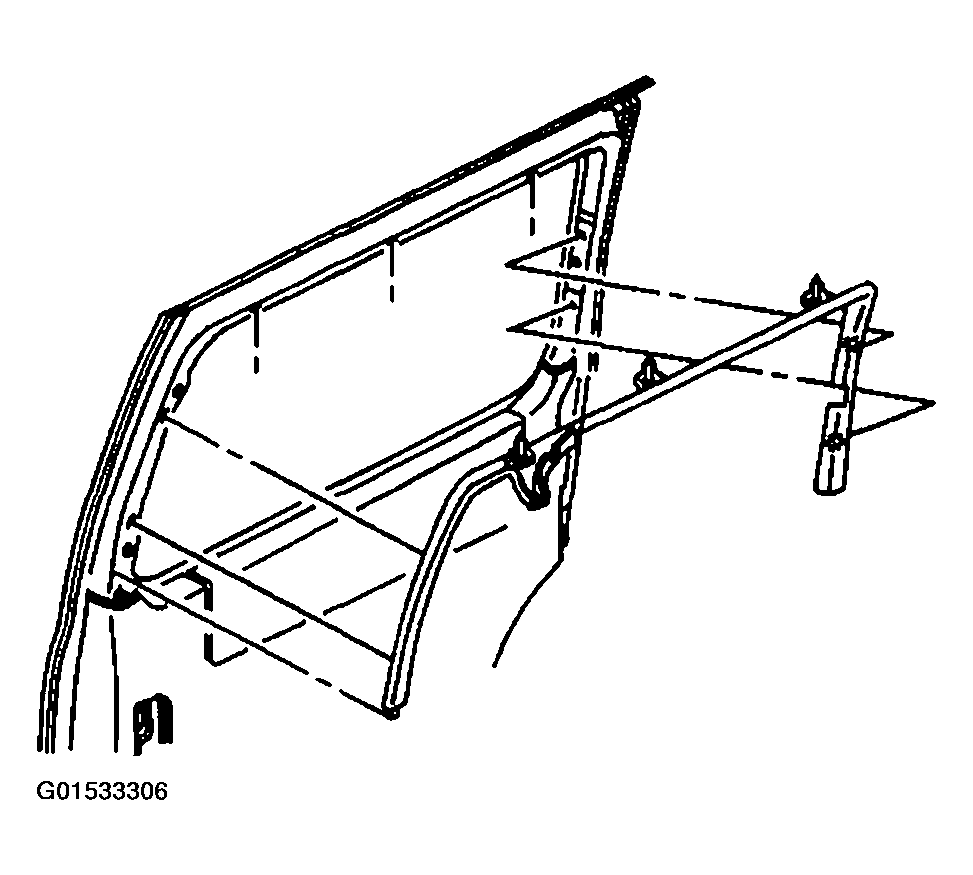

    Fig 1: Remove Sliding Door Molding From Sliding Door
    G01533306Courtesy of GENERAL MOTORS CORP.
